Radiator Support: Service and Repair

SHROUD PANEL REMOVAL/INSTALLATION

1. Remove the hood.
2. Remove the front bumper.
3. Remove the front combination light.
4. Remove the front bumper reinforcement.

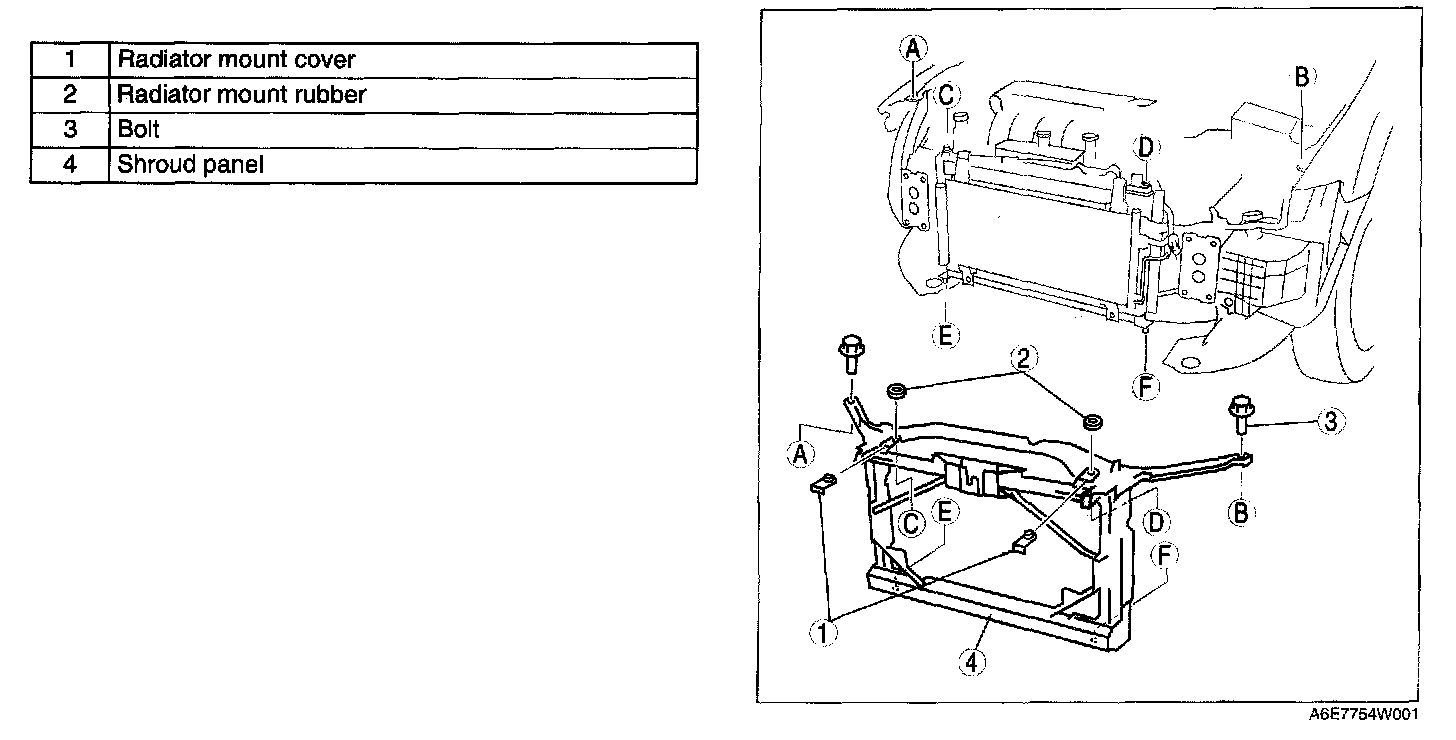

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.
