Cruise Control Switch: Testing and Inspection

CRUISE CONTROL SWITCH INSPECTION

1. Disconnect the negative battery cable.
2. Remove the driver-side air bag module.
3. Disconnect the cruise control switch connector.

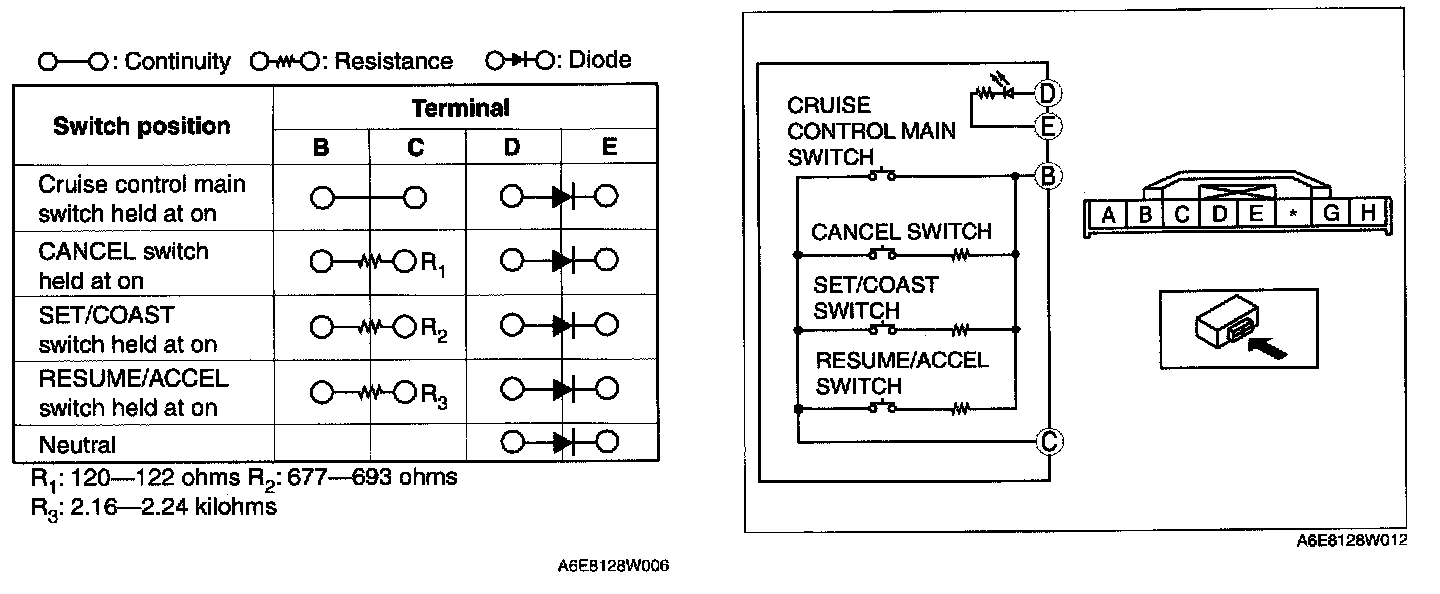

4. Measure the resistance and inspect for continuity between the cruise control switch terminals using an ohmmeter.
- If not as specified, replace the cruise control switch.
