Compressor Clutch: Service and Repair

MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY

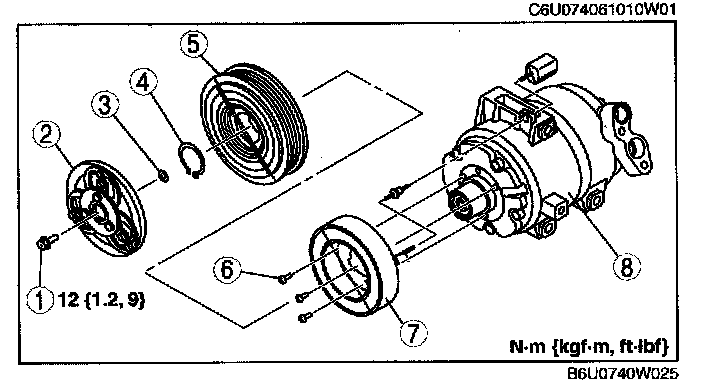

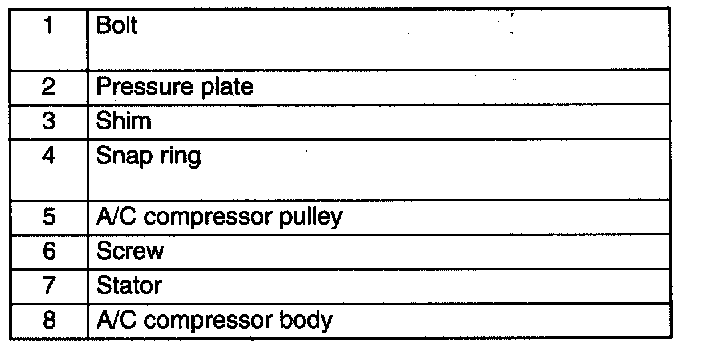

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
3. Adjust the magnetic clutch clearance

Bolt Removal/Installation Note

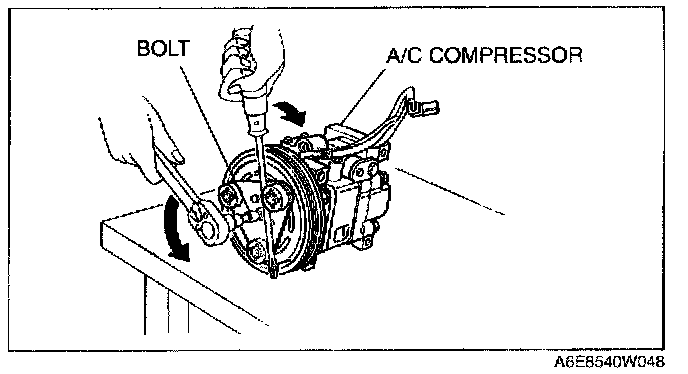

1. When removing or installing the bolt, hold the pressure plate in place as shown in the figure.
2. When installing a new A/C compressor body, replace the bolt.

Snap Ring Installation Note

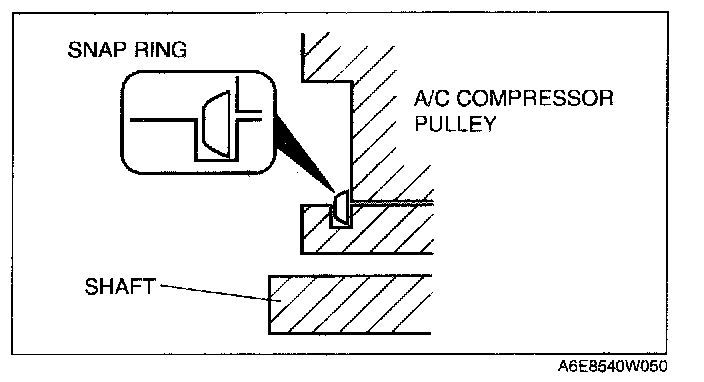

1. When installing a new pressure plate, A/C compressor pulley, stator, or A/C compressor body, replace the snap ring.
