Compressor Clutch: Testing and Inspection

MAGNETIC CLUTCH INSPECTION

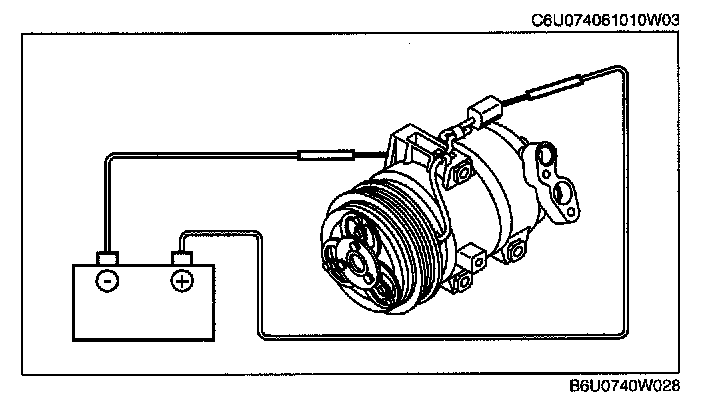

1. Connect battery positive voltage to terminal A of magnetic clutch and ground to A/C compressor body.

2. Verify that the magnetic clutch operates.
- If not as specified, replace the stator.
