Rear Wheel Alignment

REAR WHEEL ALIGNMENT

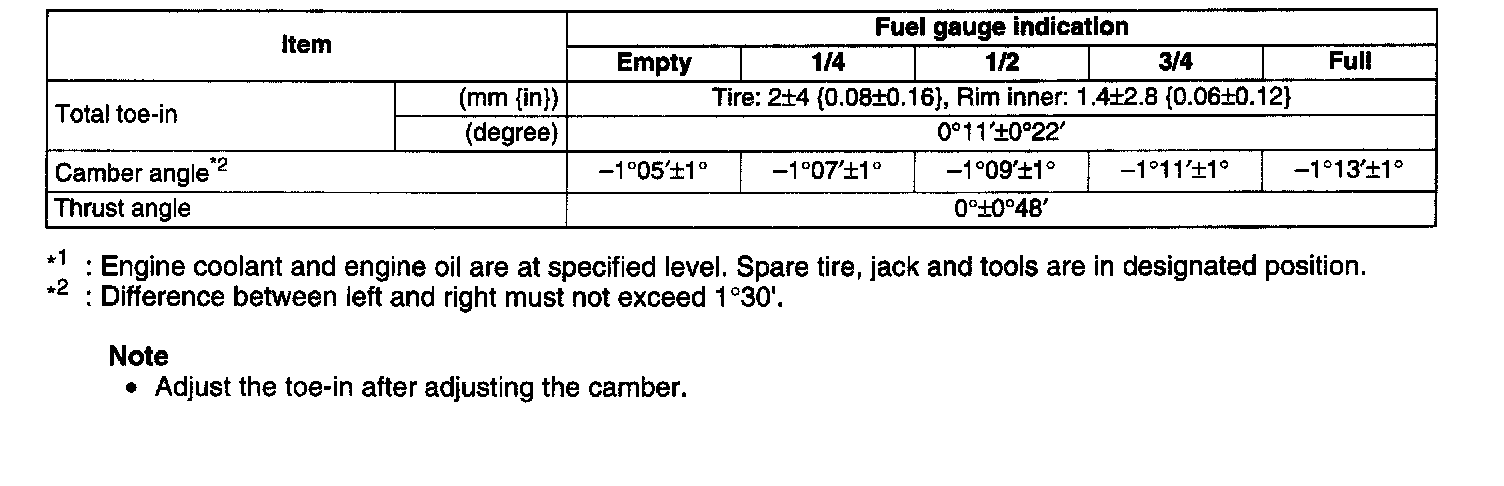

Specification (Unloaded)*1

Note:
^ Adjust the toe-in after adjusting the camber.

Camber Adjustment





1. Loosen the cam nut on the lower arm.

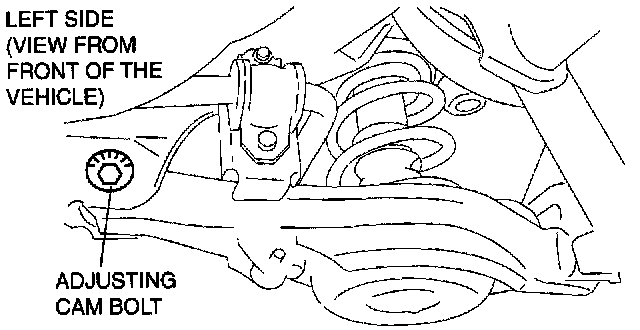

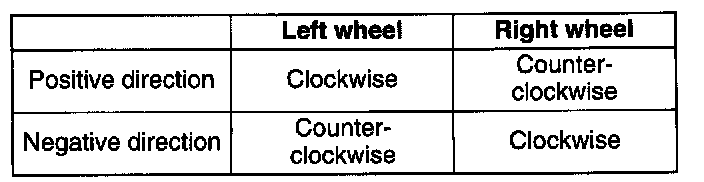

2. Turn the adjusting cam bolt to provide the correct camber angles as indicated. Left wheel Right wheel Positive direction Clockwise Counter Negative direction Counter- Clockwise
3. Tighten the cam nut.
Tightening torque 86.2 - 116.6 Nm (8.79 - 11.88 kgf-cm, 63.58 - 85.99 ft. lbs.)

Total Toe-in Adjustment

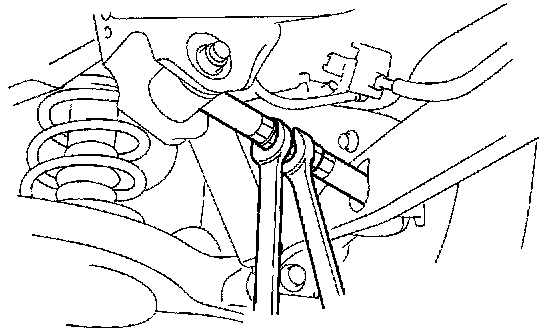

1. Loosen the locknut of the lateral link.

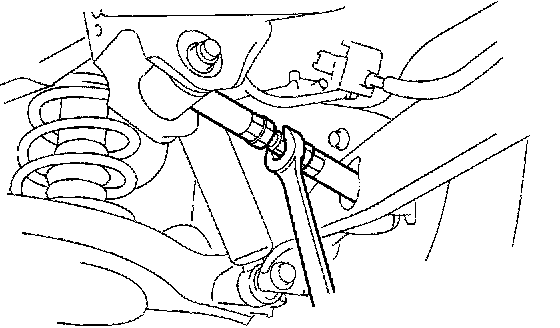

2. Adjust the toe-in turning the adjusting link.
Specification
Total Toe-in: 2 ± 4 mm (0.08 ± 0.16 inch)

Note
^ Toe change amount: 0°43'/ one rotation

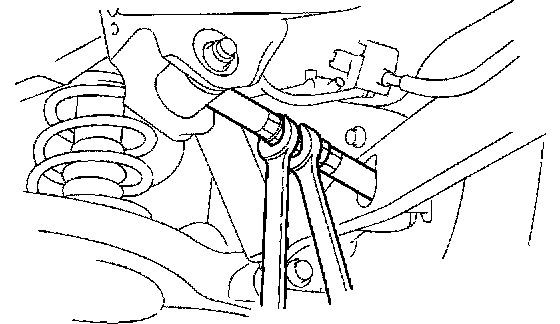

3. Tighten the locknut.
Tightening torque 68.6 - 98.1 Nm (7.0 - 10.0 kgf-cm, 50.6 - 72.3 ft. lbs.)
