Engine Coolant Protection Inspection

ENGINE COOLANT PROTECTION INSPECTION
1. Measure the coolant temperature and specific gravity with a thermometer and a hydrometer.

Caution
^ The engine has aluminum parts that can be damaged by alcohol or methanol antifreeze. Do not use alcohol or methanol in the cooling system. Use only ethylene-glycol-based coolant.
^ Use only soft (demineralized) water in the coolant mixture. Water that contains minerals will reduce the coolant's effectiveness.

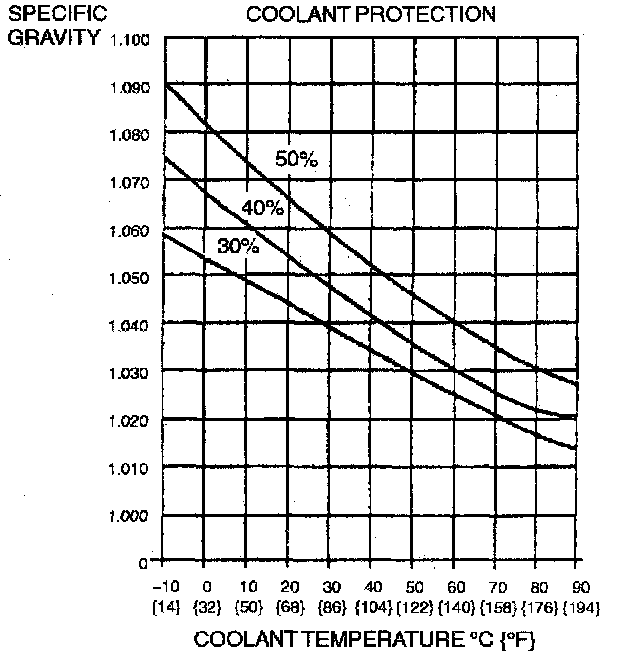

2. Determine the coolant protection by referring to the graph shown.
^ If the coolant protection is not proper, add water or coolant.
