Variable Valve Timing Actuator: Service and Repair

VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION

Caution
^ The variable valve timing actuator cannot be disassembled because it is a precision unit.

Note
^ The variable valve timing actuator camshaft sprocket is integrated with the variable valve timing actuator and cannot be disassembled.

1. Remove the camshaft component.

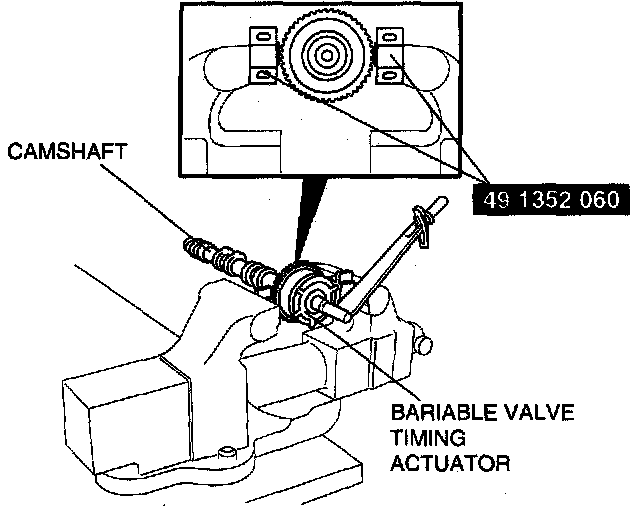

2. Secure the camshaft sprocket in a vise using the SST.
3. Loosen the variable valve timing actuator tightening bolt.
4. Remove the variable valve timing actuator.
5. Install the variable valve timing actuator using a new tightening bolt.

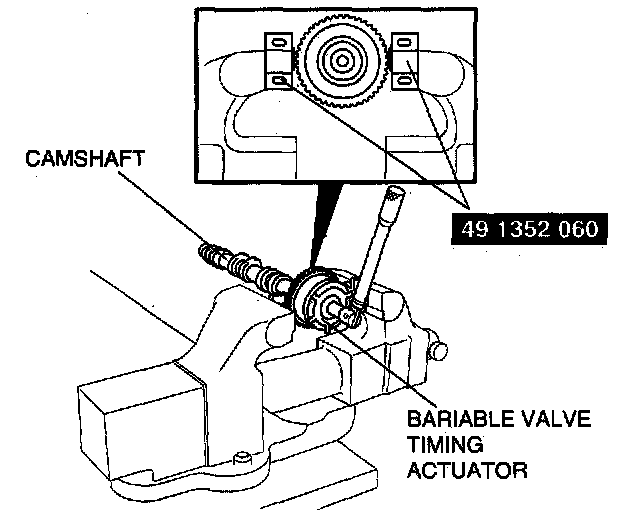

6. Secure the camshaft sprocket in a vise using the SST.
7. Tighten the variable valve timing actuator tightening bolt in two steps.
1) Tighten to 40 Nm (4.1 kgf-cm, 29.5 ft. lbs.).
2) Tighten 90°
