VSS Component Inspection

VEHICLE SPEEDOMETER SENSOR INSPECTION (WITHOUT ABS) [A65M-R]

1. Remove the vehicle speedometer sensor.

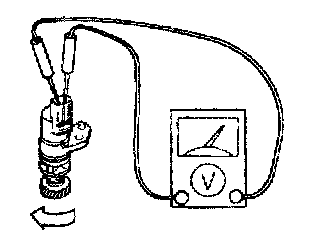

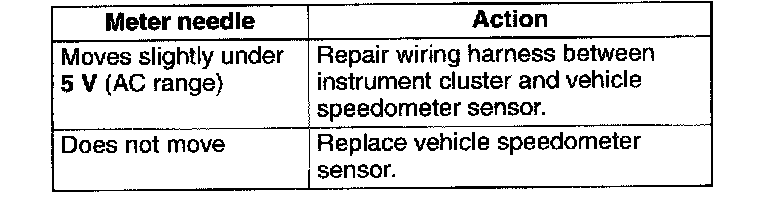

2. Measure voltage (AC range) between terminals of the vehicle speedometer sensor while the gear is turning.
