EGR Valve: Service and Repair

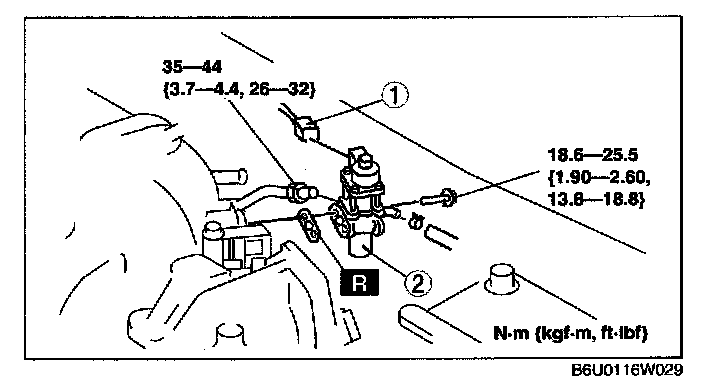

EGR VALVE REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Disconnect the vacuum hose.
3.
Disconnect the EGR pipe.
4.
Remove in the order indicated in the table.
5.
Install in the reverse order of removal.
