EGR Valve: Testing and Inspection

EGR VALVE INSPECTION

Resistance Inspection

NOTE: Perform the following test only when directed.

1. Disconnect the negative battery cable.

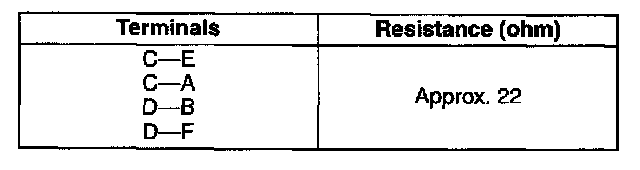

2. Inspect resistance of the EGR valve coils.
- If not as specified, replace the EGR valve.
- If as specified, carry out the "Circuit Open/Short Inspection".

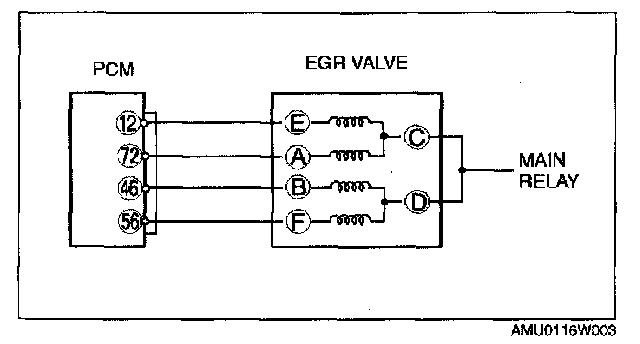

Circuit Open/Short Inspection
1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION.)

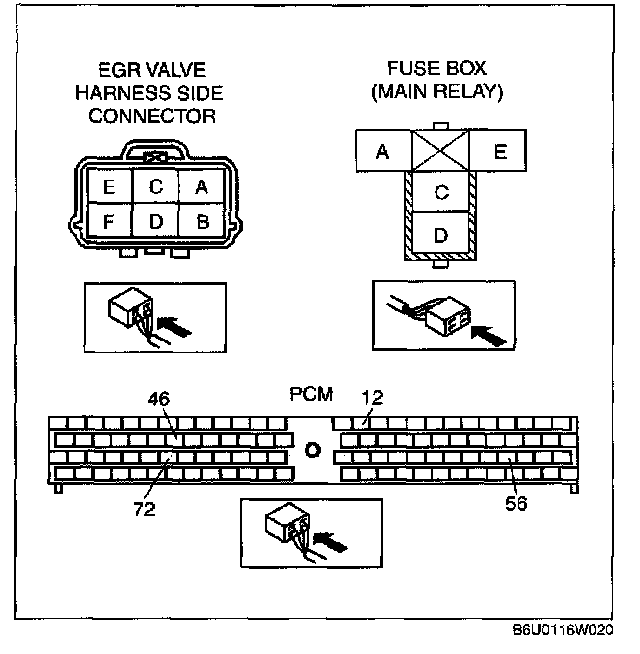

2. Inspect the following wiring harness for open or short circuit (continuity check).

Open circuit
- If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
- EGR valve terminal E (harness-side) and PCM terminal 12
- EGR valve terminal A (harness-side) and PCM terminal 72
- EGR valve terminal B (harness-side) and PCM terminal 46
- EGR valve terminal F (harness-side) and PCM terminal 56
- EGR valve terminal C or D (harness-side) and main relay terminal C (harness-side)

Short circuit
- If there is continuity, there is a short circuit. Repair or replace the wiring harness.
- EGR valve terminal E (harness-side) and GND
- EGR valve terminal A (harness-side) and GND
- EGR valve terminal B (harness-side) and GND
- EGR valve terminal F (harness-side) and GND
- EGR valve terminal C or D (harness-side) and power supply

3. Remove the EGR valve, and inspect for any damage or clogging.
- If there is no damage or no clogging, replace the EGR valve.
