Ignition Coil: Service and Repair

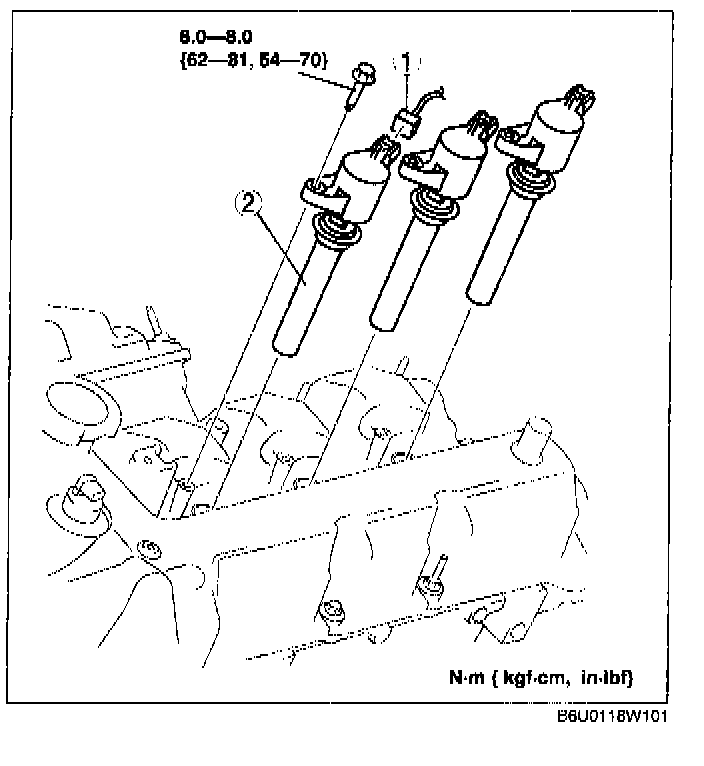

IGNITION COIL REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. LH: Remove the plug hole plate.Timing Chain

RH: Remove the dynamic chamber.Intake Manifold

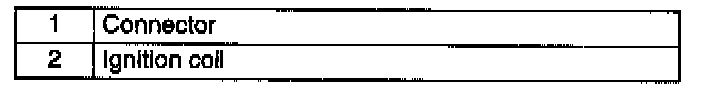

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
