Control Module: Service and Repair

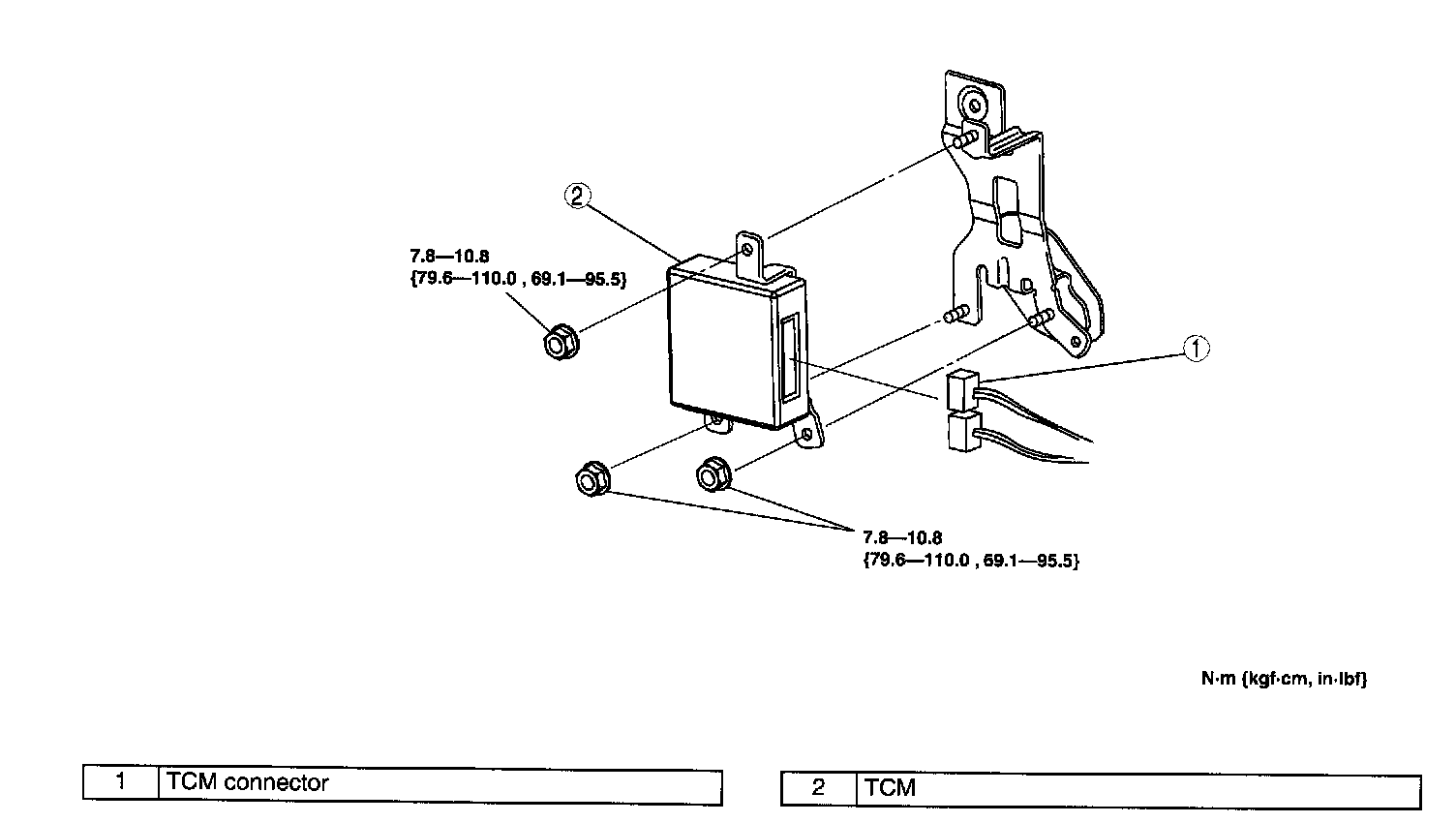

TCM REMOVAL/INSTALLATION [JA5A-EL]





1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Connect the negative battery cable.
