Wiring Harness

Wiring Harness

Wiring Harness:

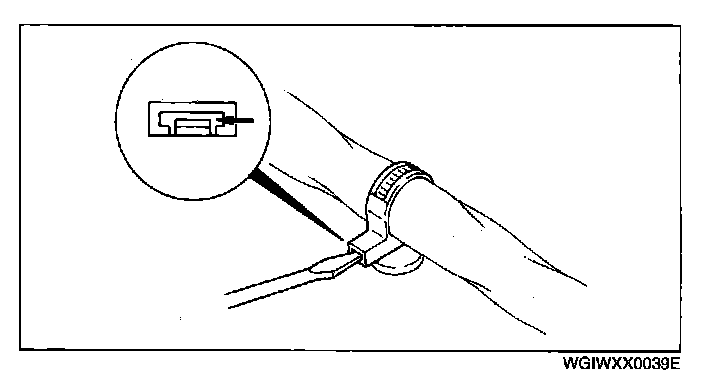

- To remove the wiring harness from the clip in the engine room, pry up the hook of the clip using a flathead screwdriver.

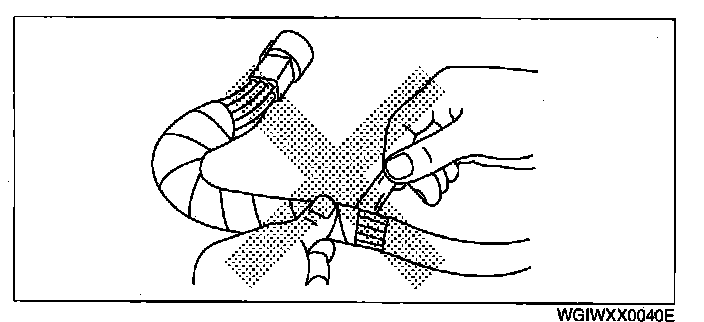

CAUTION: Do not remove the harness protective tape. Otherwise, the wires could rub against the body, which could result in water penetration and electrical shorting.
