System Specifications
TRANSMISSION/TRANSAXLE TECHNICAL DATA

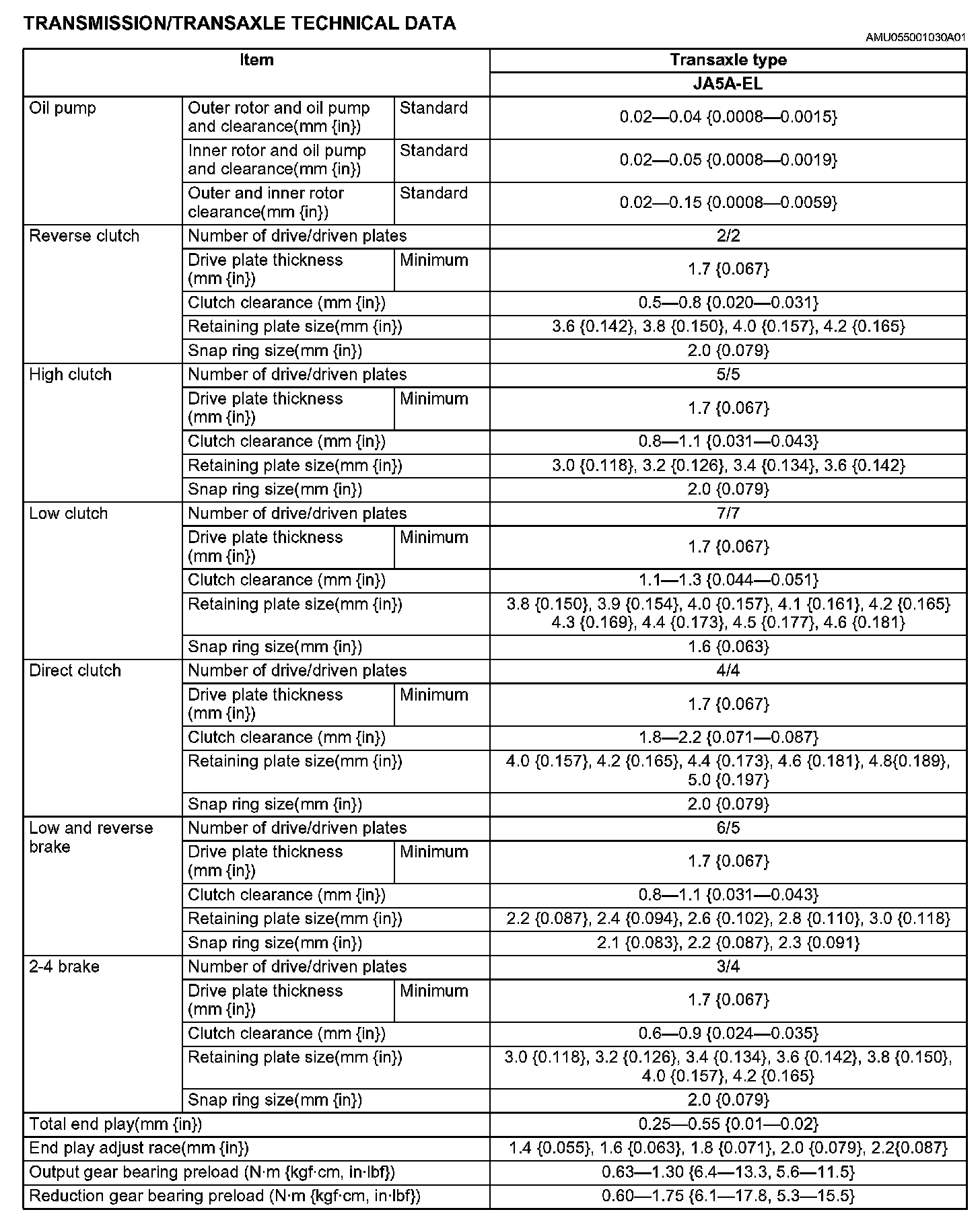

Transmission/Transaxle Technical Data (Part 1):

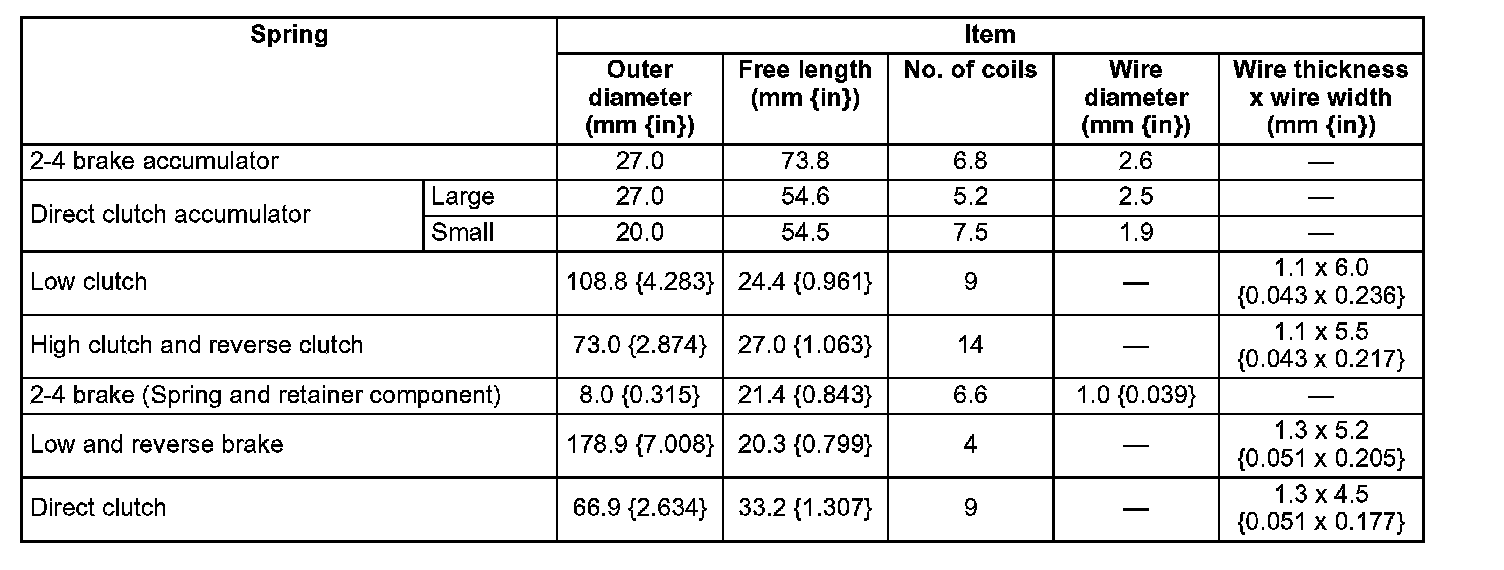

Transmission/Transaxle Technical Data (Part 2):
Transmission/Transaxle Technical Data (Part 3):
