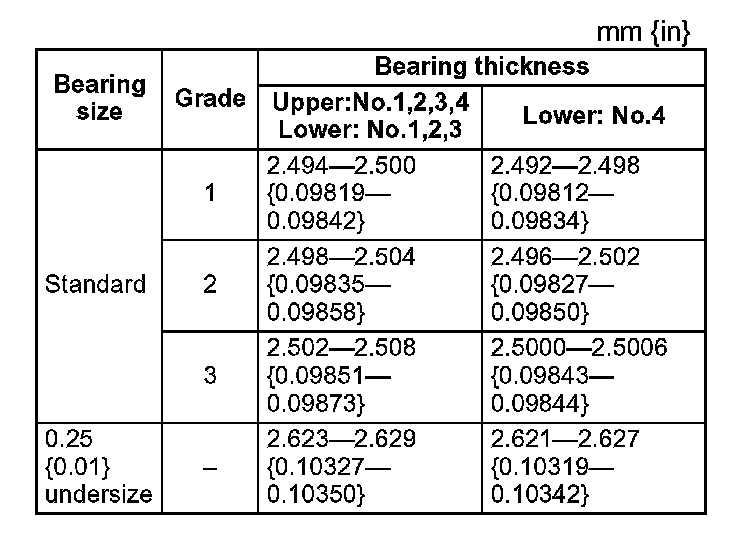

Crankshaft Main Bearing

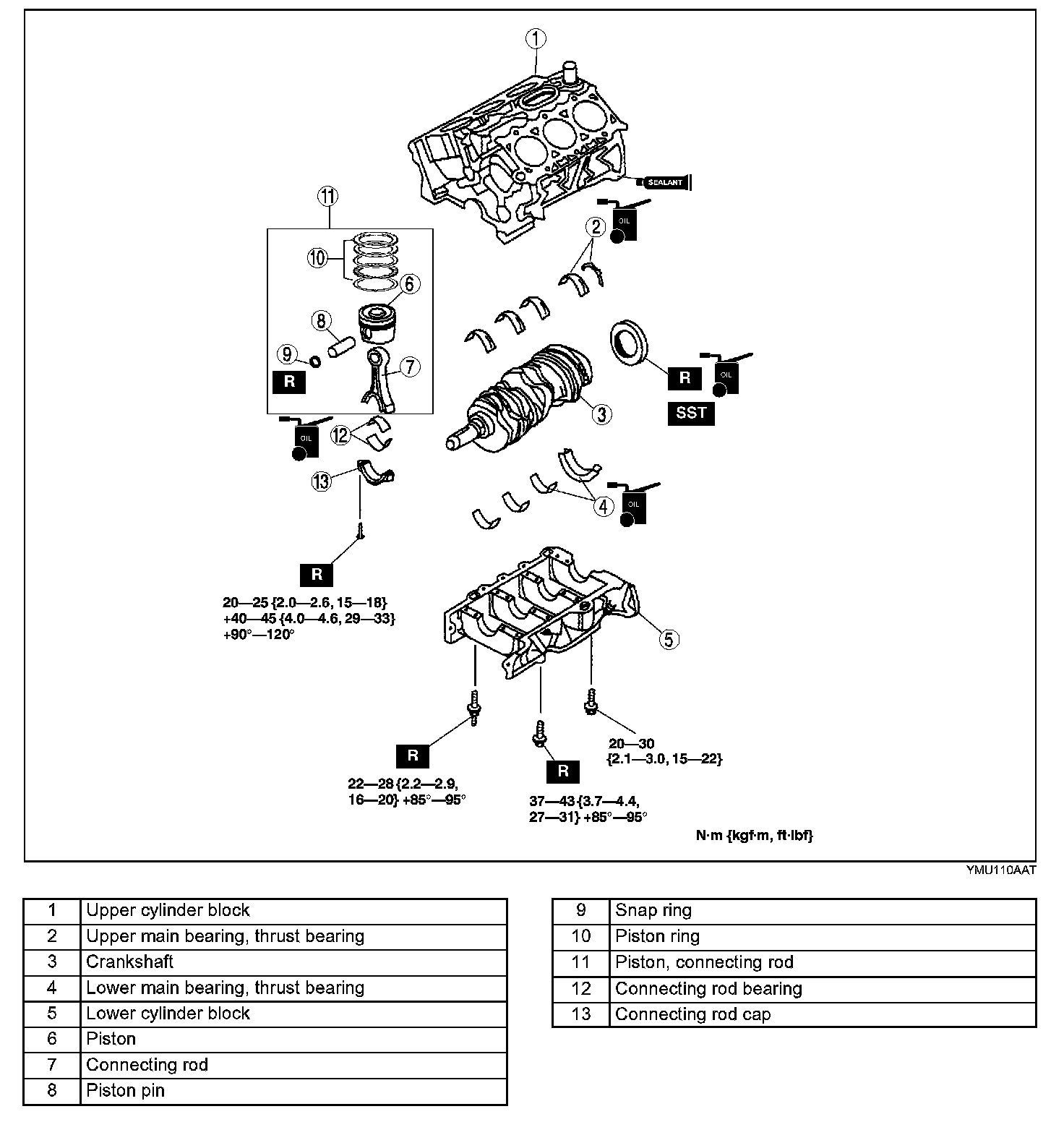

Main Bearing SpecificationsCylinder Block Assembly(I):
Tightening Specifications Standard clearance
0.025-0.045 mm (0.0010-0.0017 in)
Maximum clearance
0.050 mm (0.0019 in)

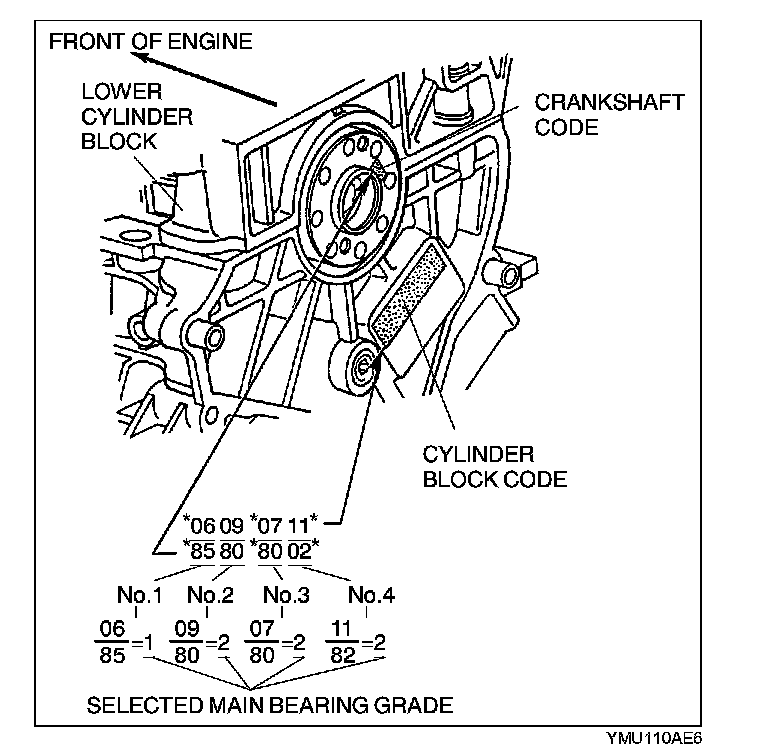

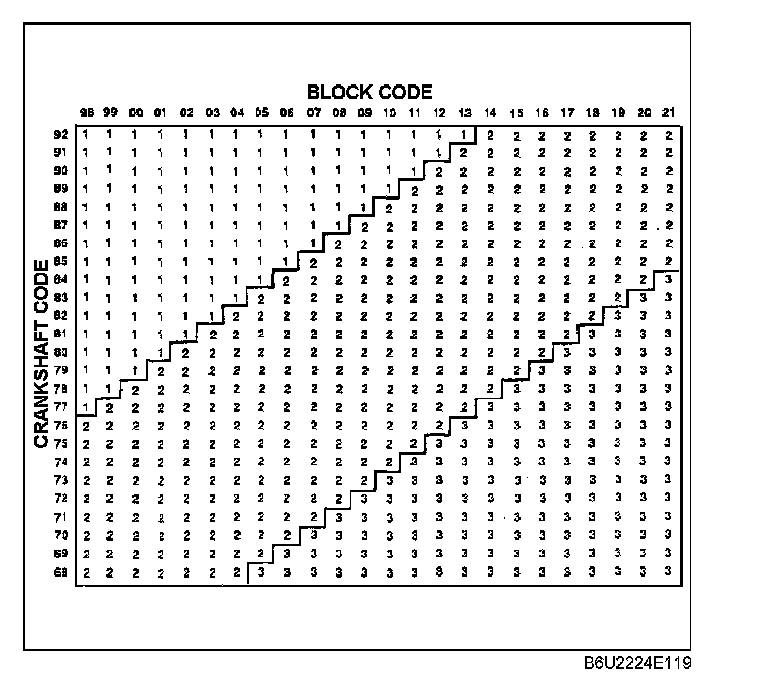

Main bearing selection tableExample of main bearing selection
