Intake Manifold

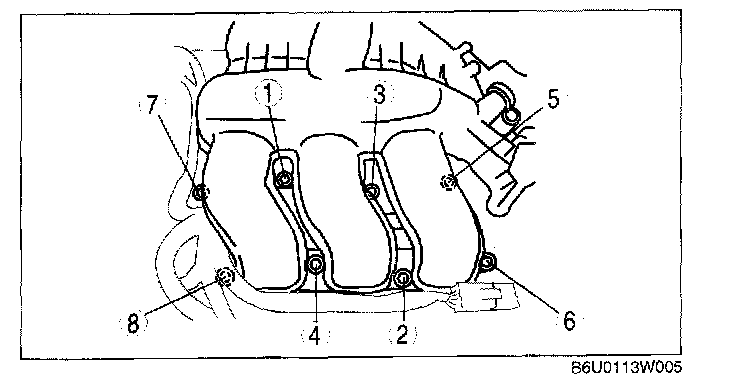

Intake Manifold
Tighten the intake manifold installation bolts in the order indicated.
Tightening torque: 8 - 12 N.m {72 - 106 in.lbf}

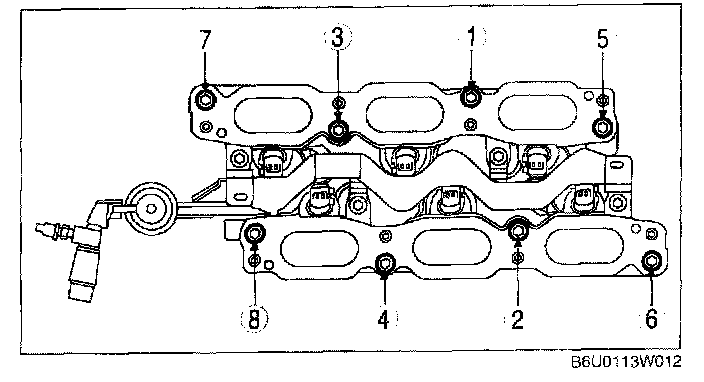

Dynamic Chamber
Tighten the dynamic chamber installation bolts in the order indicated.
Tightening torque: 8 - 12 N.m {72 - 106 in.lbf}
