Technical Data AJ w/ VVT

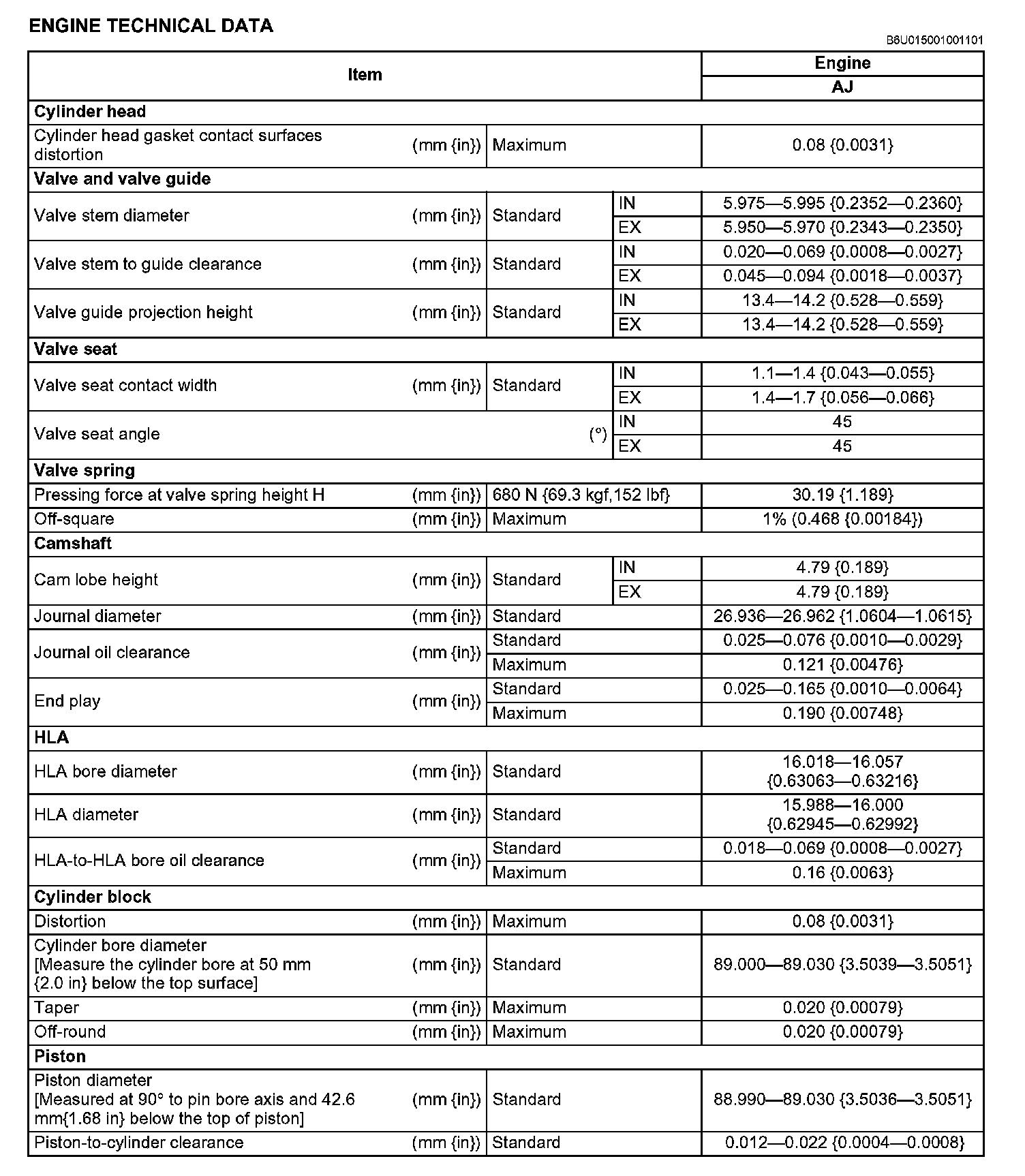

ENGINE TECHNICAL DATA

Engine Technical Data (Part 1):

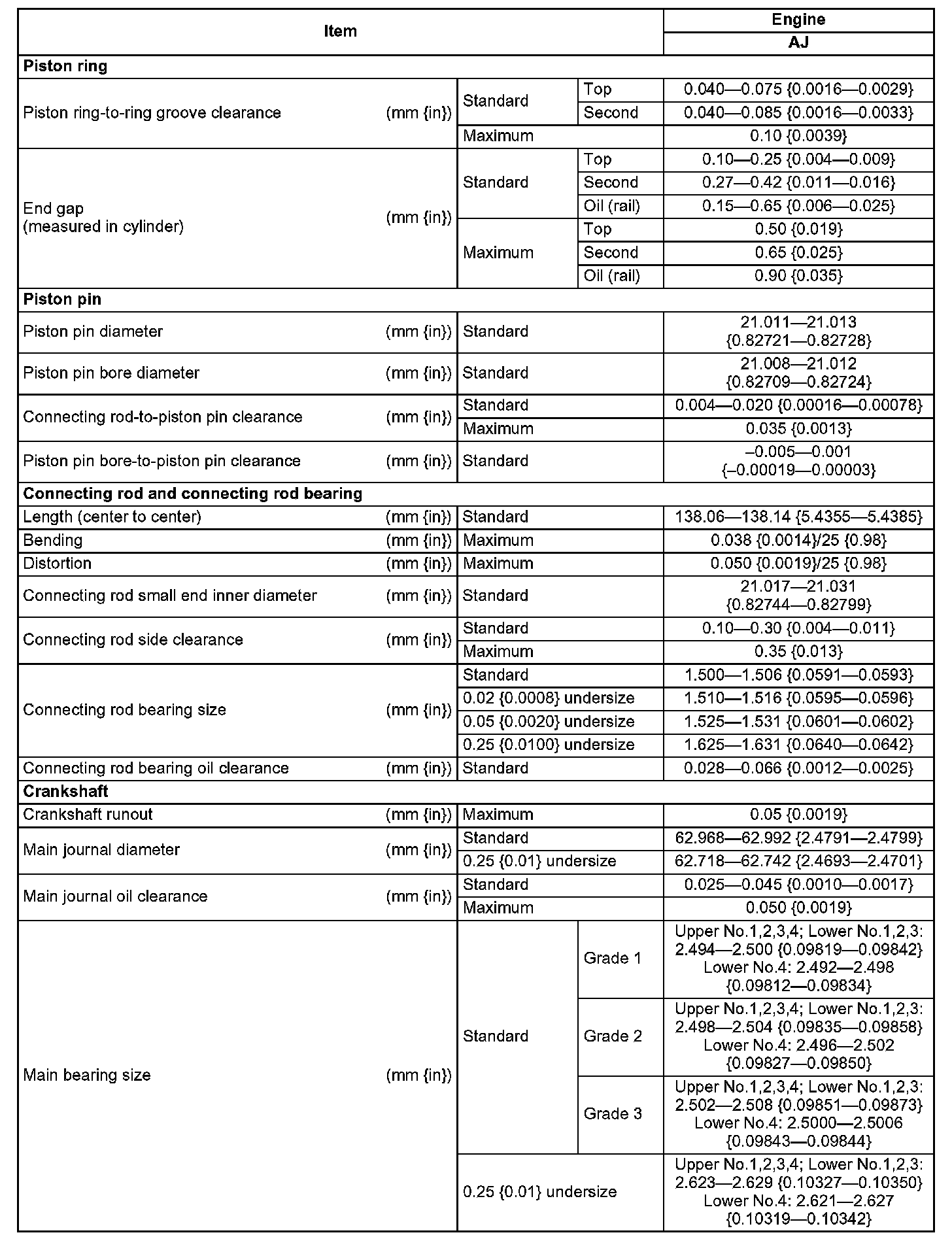

Engine Technical Data (Part 2):

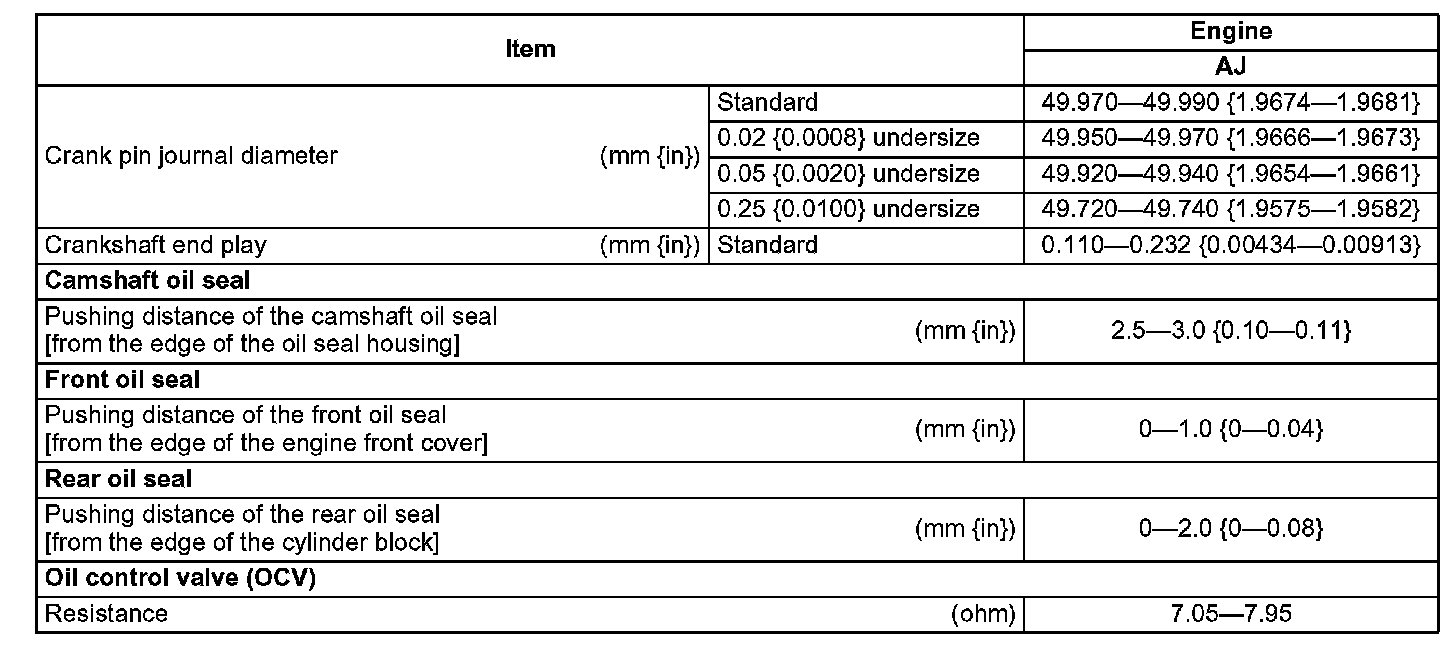

Engine Technical Data (Part 3):
