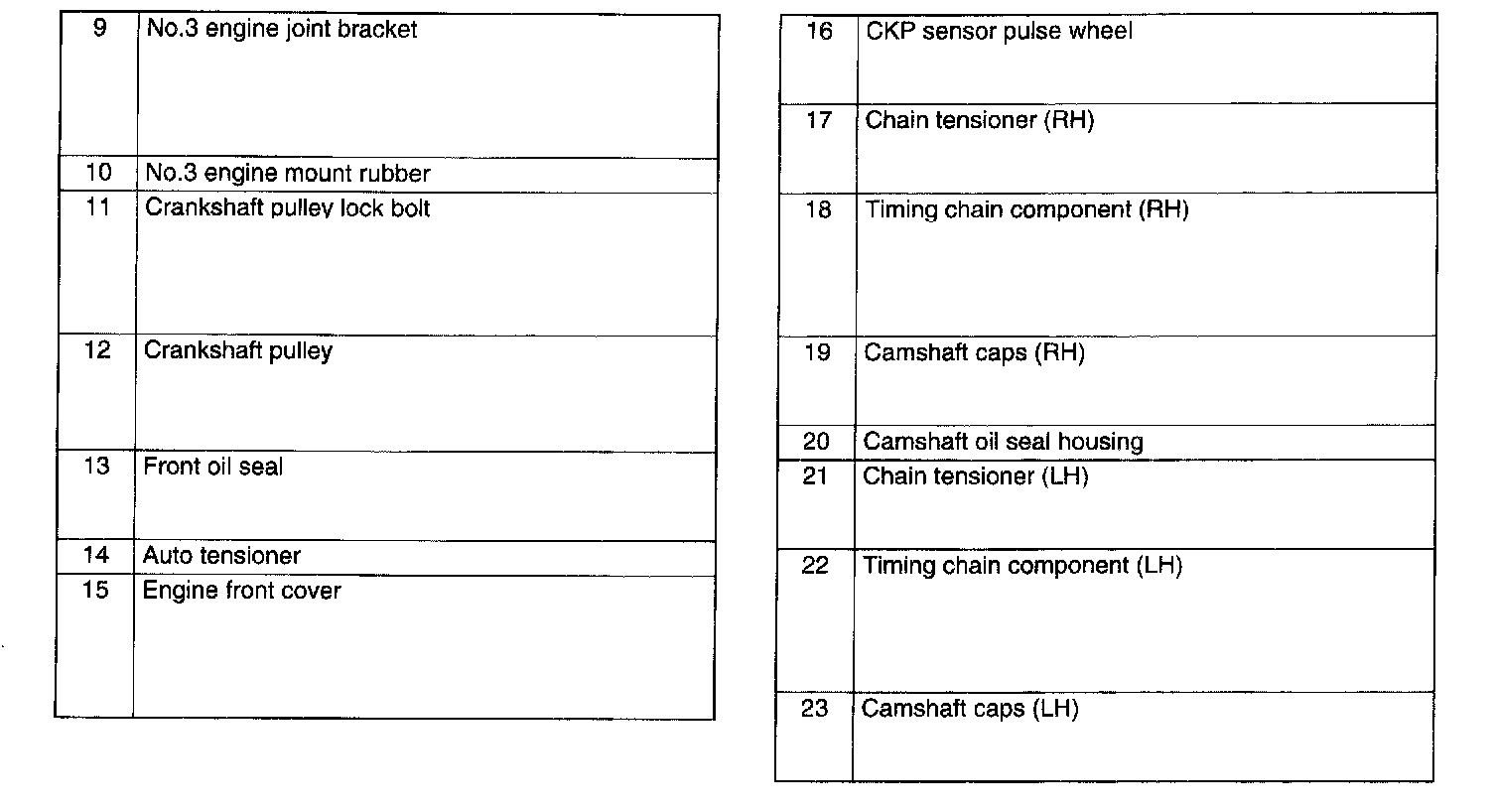

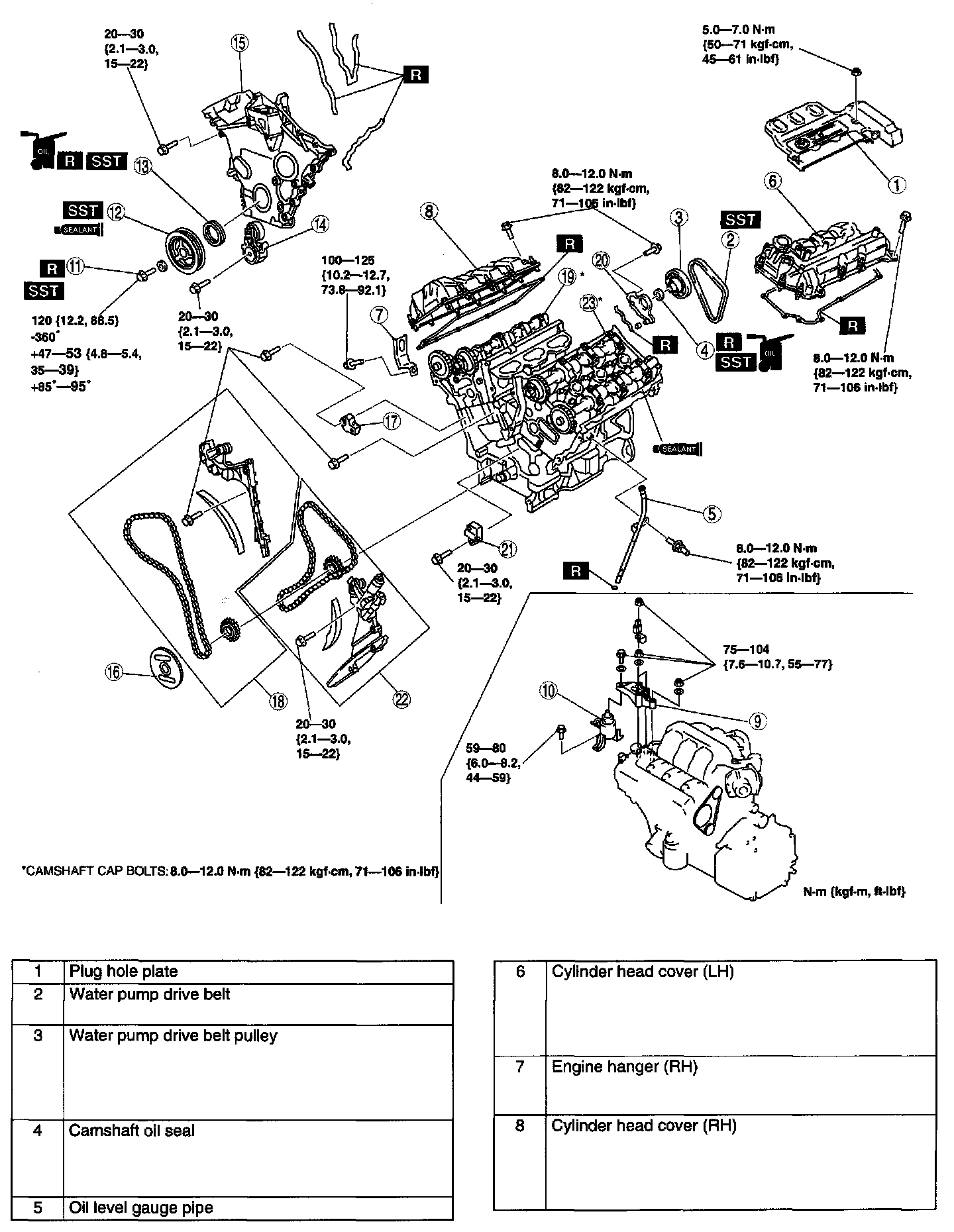

Timing Chain

TIMING CHAIN

Part 1:




Part 2:

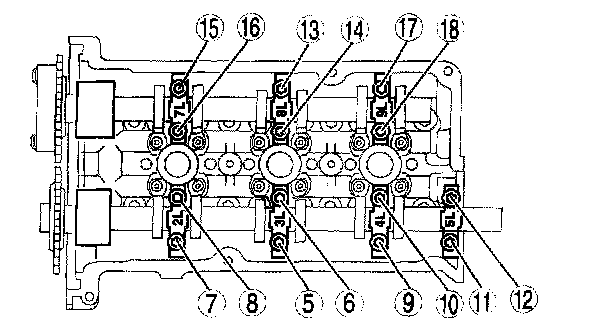

Loosen the remaining bolts 7-8 turns in the indicated sequence to allow the camshaft (LH) to rise

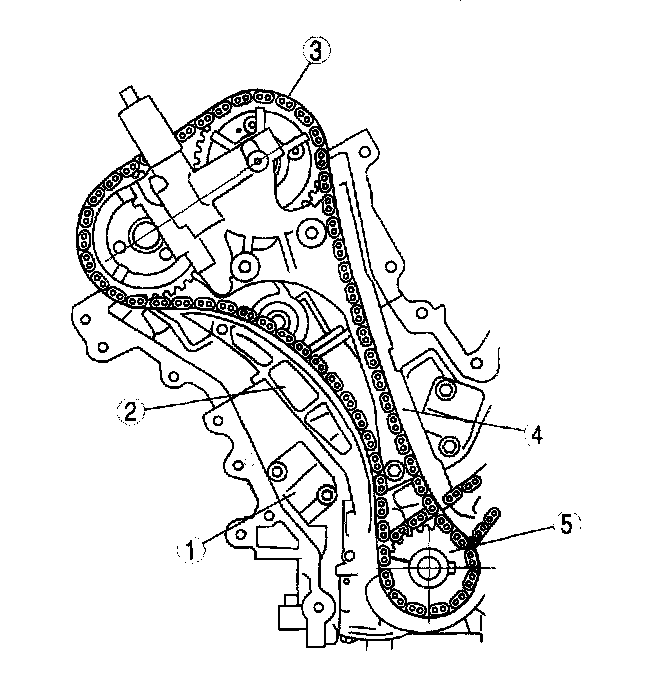

Remove the timing chain (RH) in the following order.
Chain tensioner
Tensioner arm
Timing chain
Chain guide
Timing chain crankshaft sprocket
