Flex Plate

Part 2:

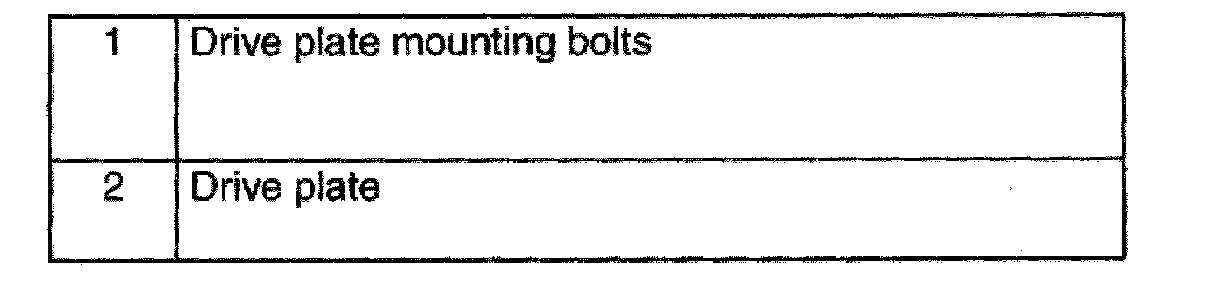

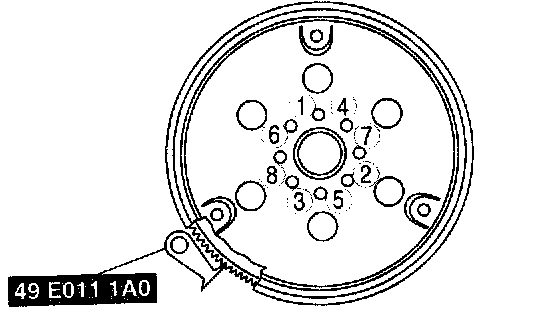

Drive Plate sequence

Tighten the drive plate mounting bolts in two or three steps.

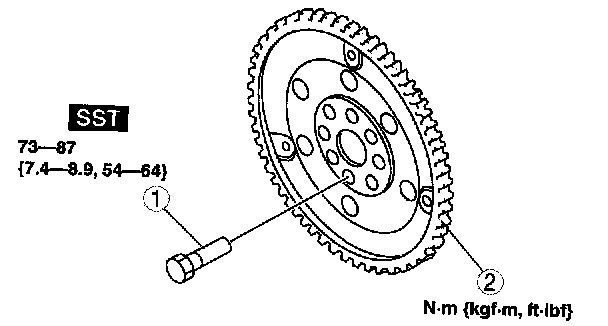

Tightening torque 73 - 87 Nm (7.4 - 8.9 kgf-m, 54 - 64 ft. lbs.)

Flywheel Runout 0.05 mm (0.002 inch) max.
