Fuse Block: Service and Repair

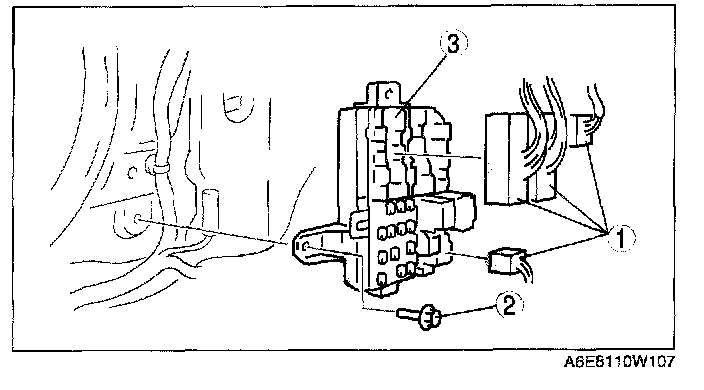

FUSE BLOCK REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the left-side front side trim.

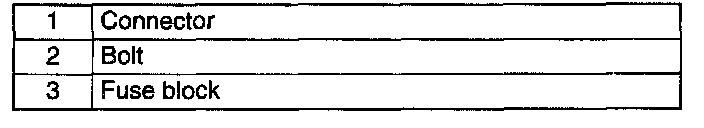

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal
