Vechicle Option Codes

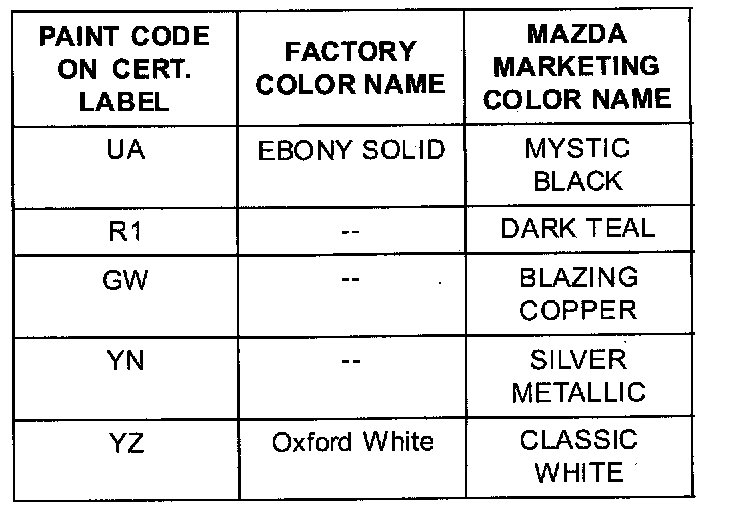

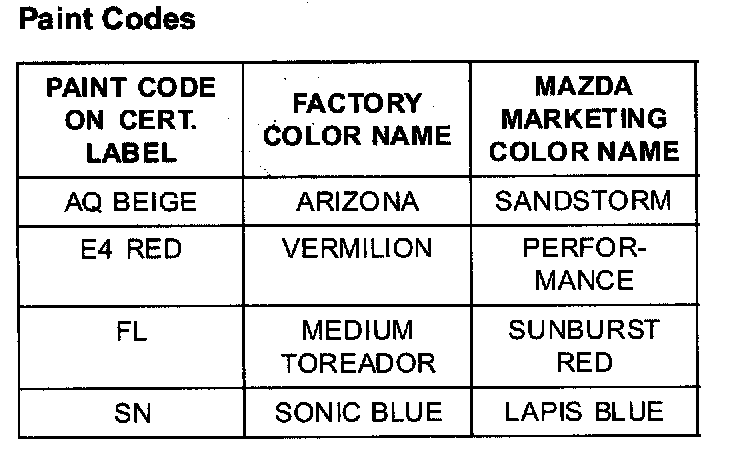

Paints Codes
Wheel Base
- 112 - 112-inch wheelbase
- 118 - 118-inch wheelbase
- 126 - 128-inch wheelbase
Brake Type
B - Four-wheel anti-lock brake system (ABS)
Interior Trim Codes
Interior trim codes are listed as a two-part code. The first code listed identifies the trim level. The second code listed identifies the interior trim color.
Interior Trim Type
- 2 - Bucket seat
- 3 - Split bench
- 4 - Bench seat
Interior Color Codes (right digit)
- X - Medium Prairie Tan
- B - Ebony
- 2 - Medium Graphite
Tape/Paint Pinstripe Code
- P - Platinum, Styleside
- S - Silver, Styleside
- R - Orange, Metallic
- G - Burnt Orange, Metallic (Mexico units only)
- B - Pastel Blue, Metallic (Mexico units only)
- X - SPC paint
Radio Codes
- 7 - AM/FM stereo with clock
- Z - AM/FM stereo with single compact disc (CD) player
- K - AM/FM stereo (dual media) cassette with compact disc (CD) player
- 1 - AM/FM stereo with six disc compact disc (CD) changer
- Y - Delete radio
- P - AM/FM stereo (dual media) MP3 with compact disc (CD) player
Axle Codes
The following lists the gear ratios on axles.
- 86 - 3.73 non-limited slip, 4x2
- 87 - 4.10 non-limited slip, 4x2
- F6 - 3.73 limited slip, 4x2
- 95 - 3.55 non-limited slip, 4x2
- R5 - 3.55 limited slip, 4x2
- 86 - 3.73 non-limited slip, 4x4
- 87 - 4.10 non-limited slip, 4x4
- F6 - 3.73 limited slip, 4x4
- 97 - 4.10 non-limited slip, 4x4
- R7 - 4.10 limited slip, 4x4
- 96 - 3.73 non-limited slip, 4x4 .
- R6 - 3.73 limited slip, 4x4
- KA - Electric vehicle (no ratio)
Transmission Type
- D - Five speed automatic (A5LD/5R55E)
- M - Five speed manual (M5R1)
- J - Five speed manual
- H - Single speed (electric)
Spring Codes
Spring codes are listed as a two-part code. The first character identifies the front spring/torsion bar code. The second character identifies the rear spring code.
Front Spring Codes
- A - 4x2
- C - 4x2
- D - 4x2
- E - 4x2
- J - 4x2
- 2 - 4x2
- 3 - 4x2
- 5 - 4x2
- F - 4x2
- B - 4x2
- 1 - 4x2
Torsion Bars
- B - 4x4
- F - 4x4
- 1 - 4x4
Rear Springs
- 3
- 7
- C
- K
- N
