Front Fender Liner: Service and Repair

SPLASH SHIELD REMOVAL/INSTALLATION

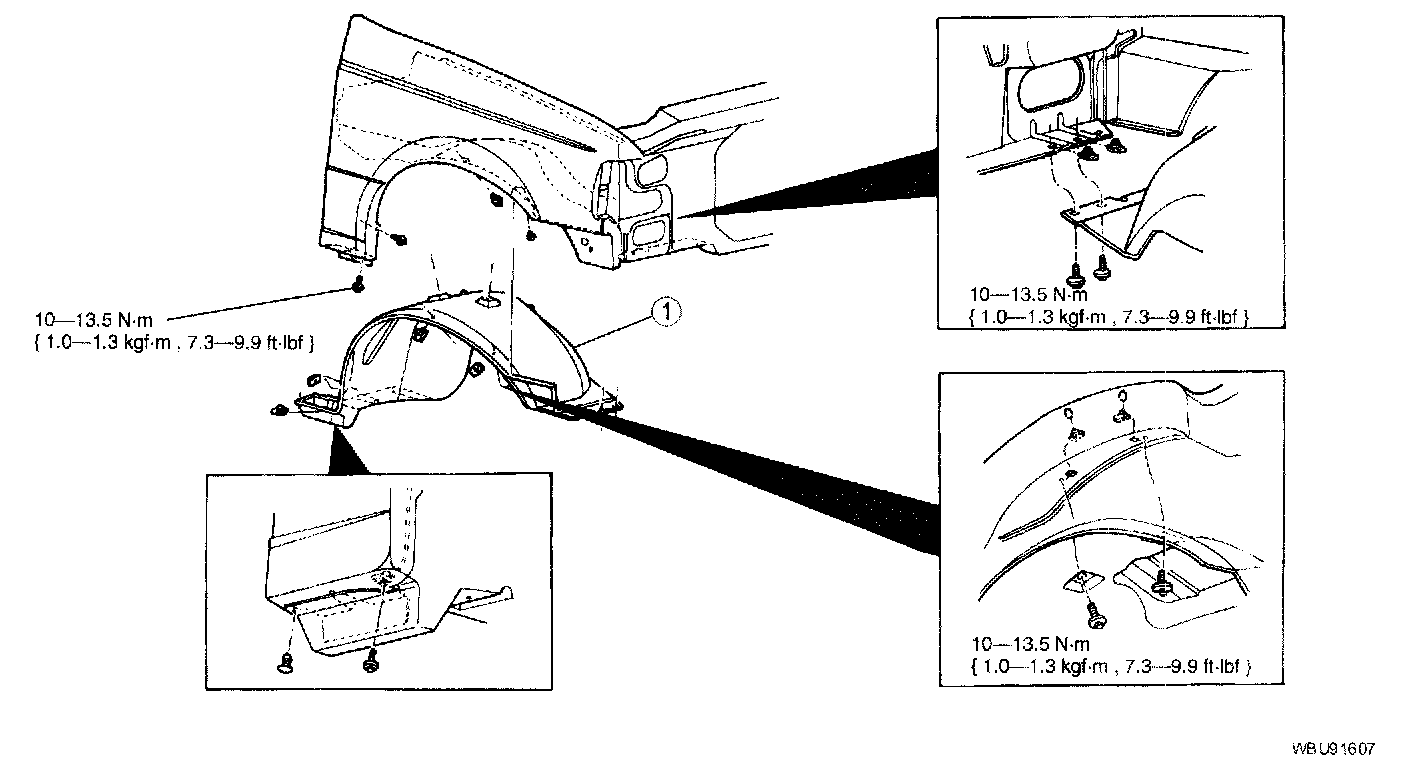

Front
1. Remove screws.
2. Remove splash shield (1).






3. Install in reverse order of removal.

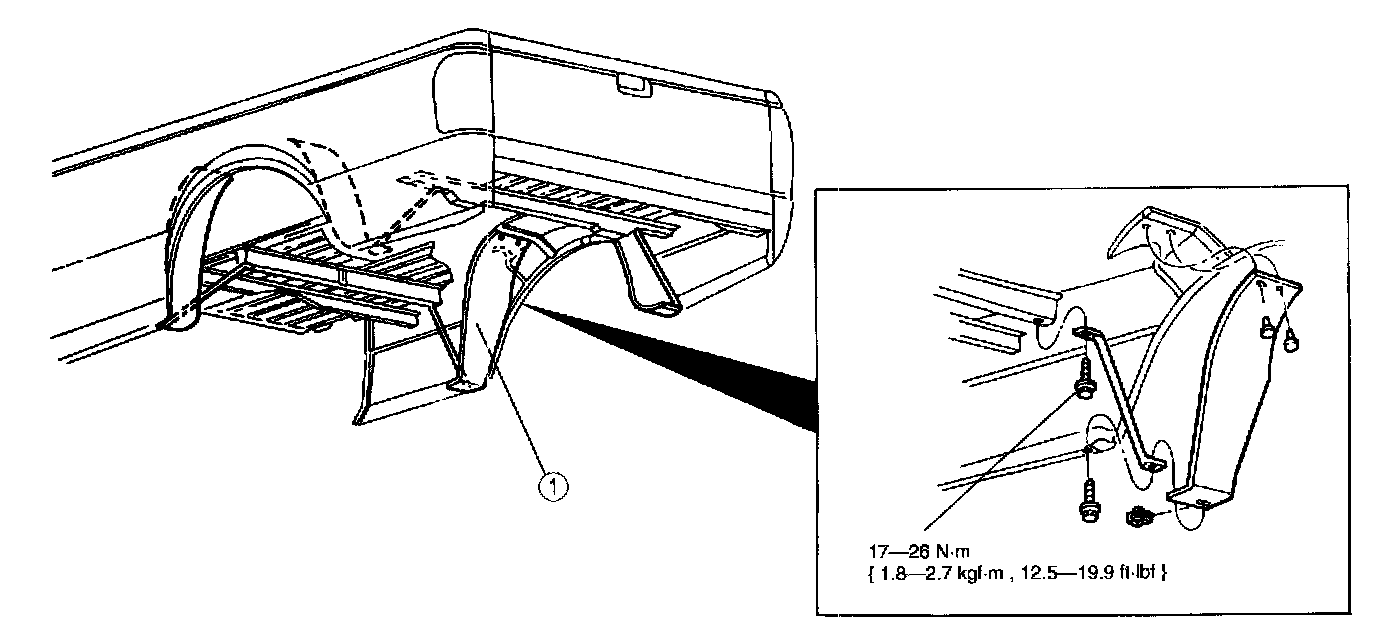

Rear
1. Remove screws.
2. Remove splash shield (1).






3. Install in reverse order of removal.
