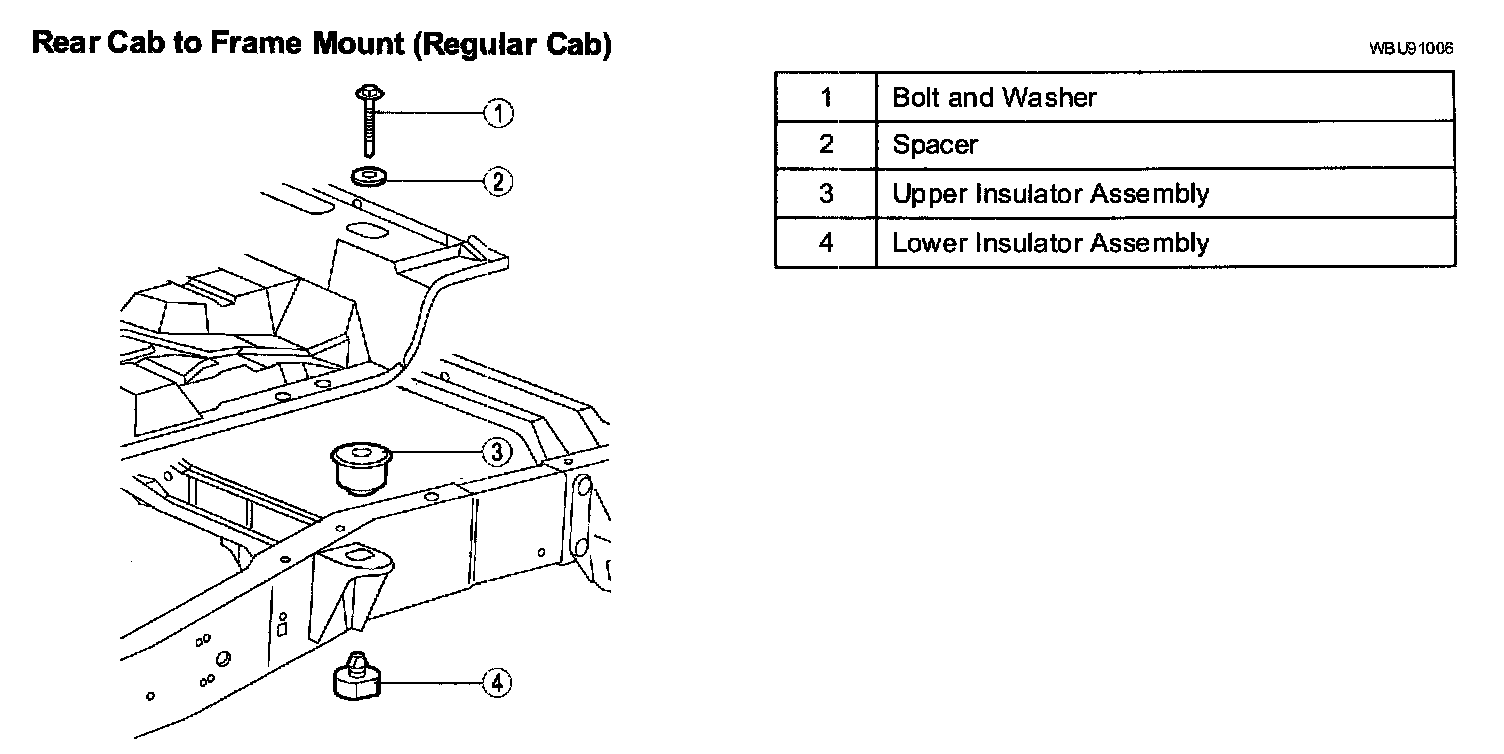

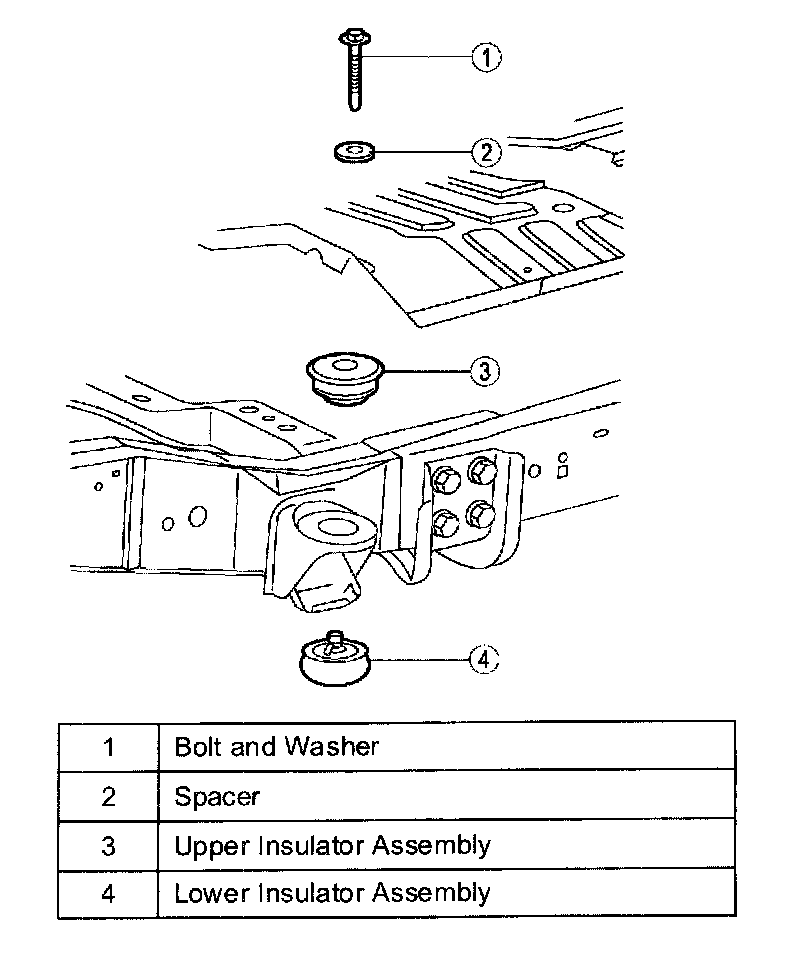

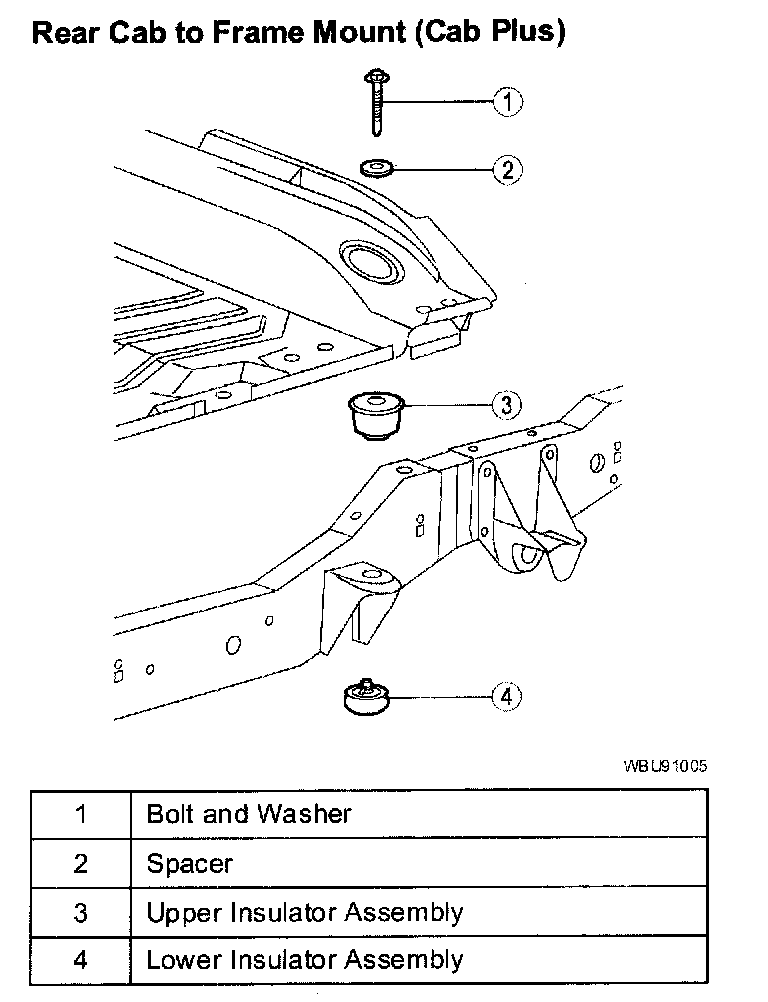

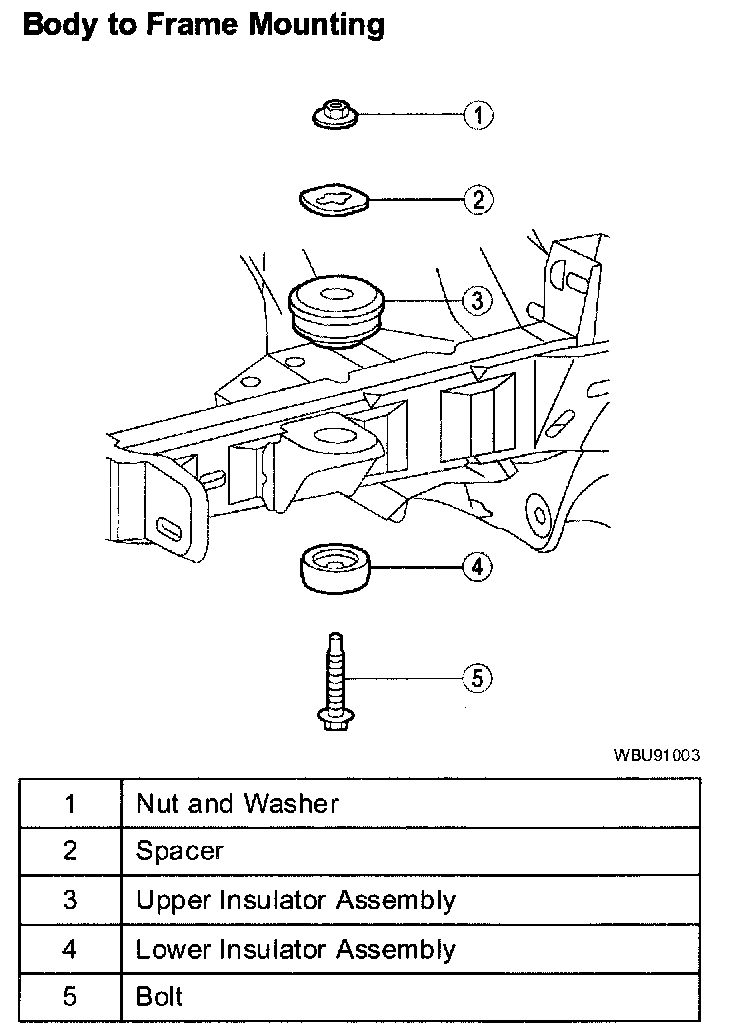

Body / Frame Mount Bushing: Locations

FRAME AND MOUNTING COMPONENT VIEW

Frame and Mounting Component View:

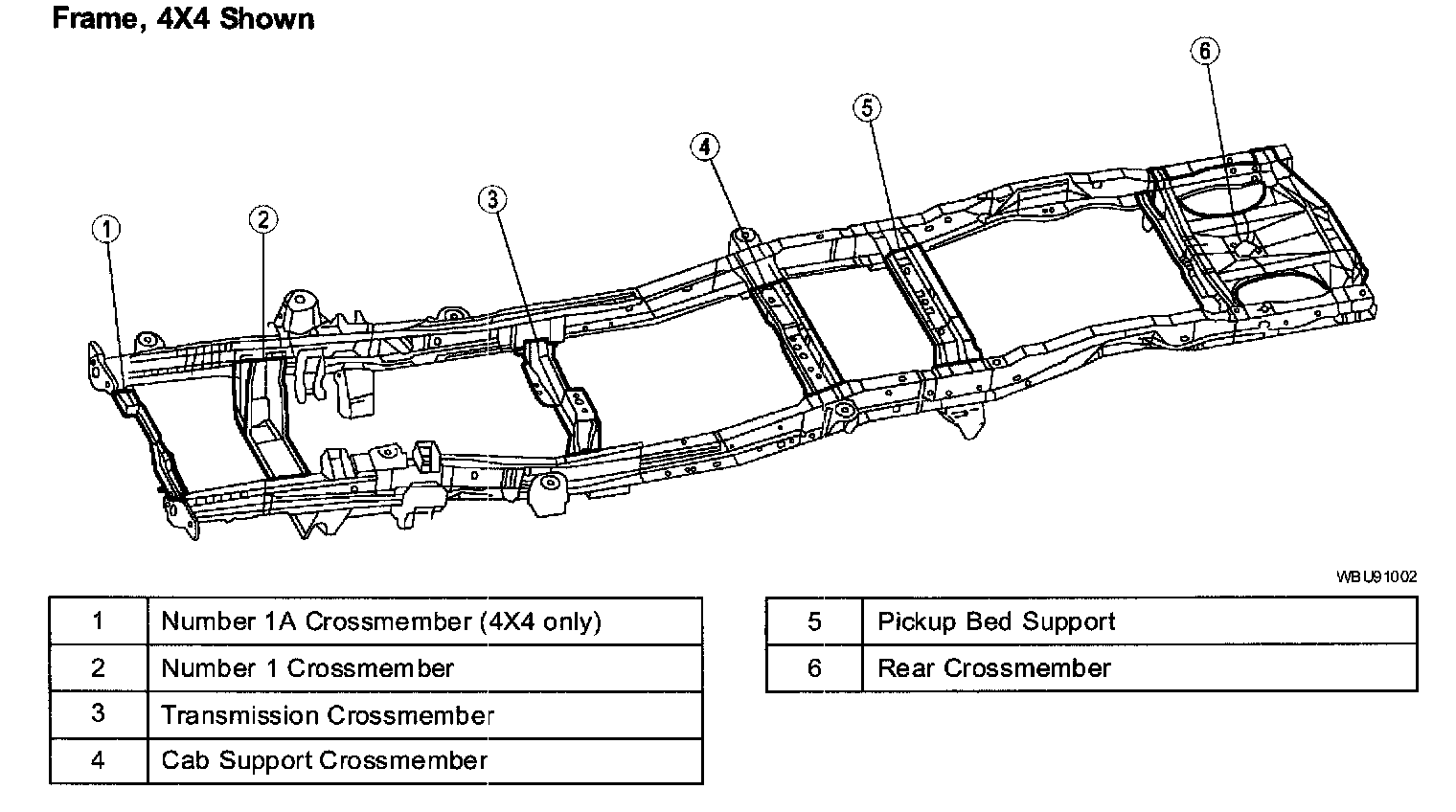

The frame consists of two steel channel rails, a rear crossmember, a number of additional support crossmembers and a front crossmember.

The number 1A (4x4 only) and number 1 crossmembers are welded to the frame side rails. The remaining frame cross members are riveted and/or bolted into place
