Console: Service and Repair

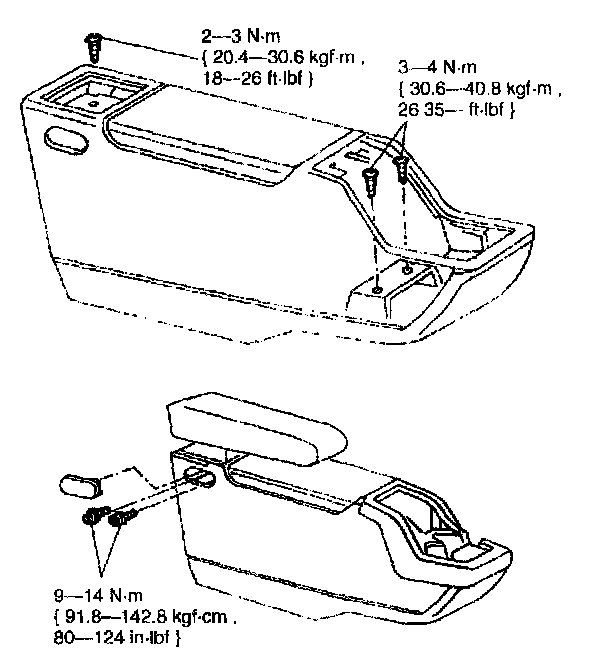

CONSOLE (FLOOR) REMOVAL/INSTALLATION

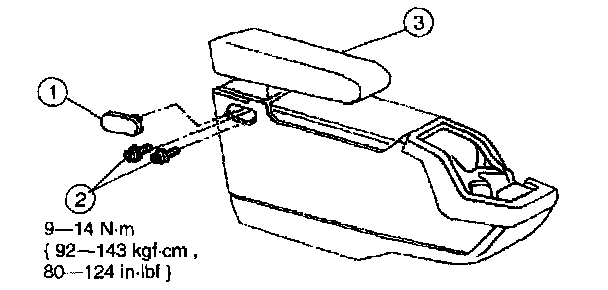

1. Remove the front seat center armrest.
1. Remove the two covers
2. Remove the four bolts.
3. Remove the armrest.

2. Remove the utility tray beverage holder.

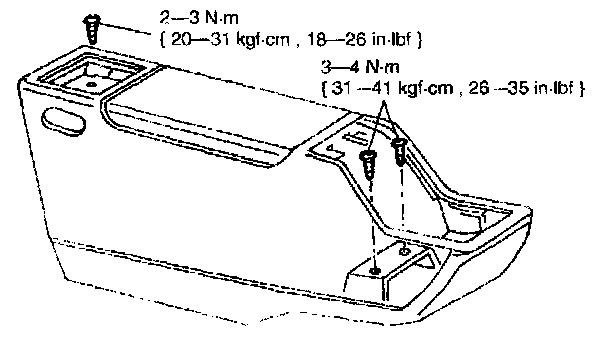

3. Remove the console screws.




4. Remove the console.
5. Install in reverse order of removal.
