Home >> Mazda >> 2004 >> B2300 L4-2.3L VIN D >> Repair and Diagnosis >> Body and Frame >> Locks >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Pinpoint Tests >> Pinpoint Test 1

Pinpoint Test 1

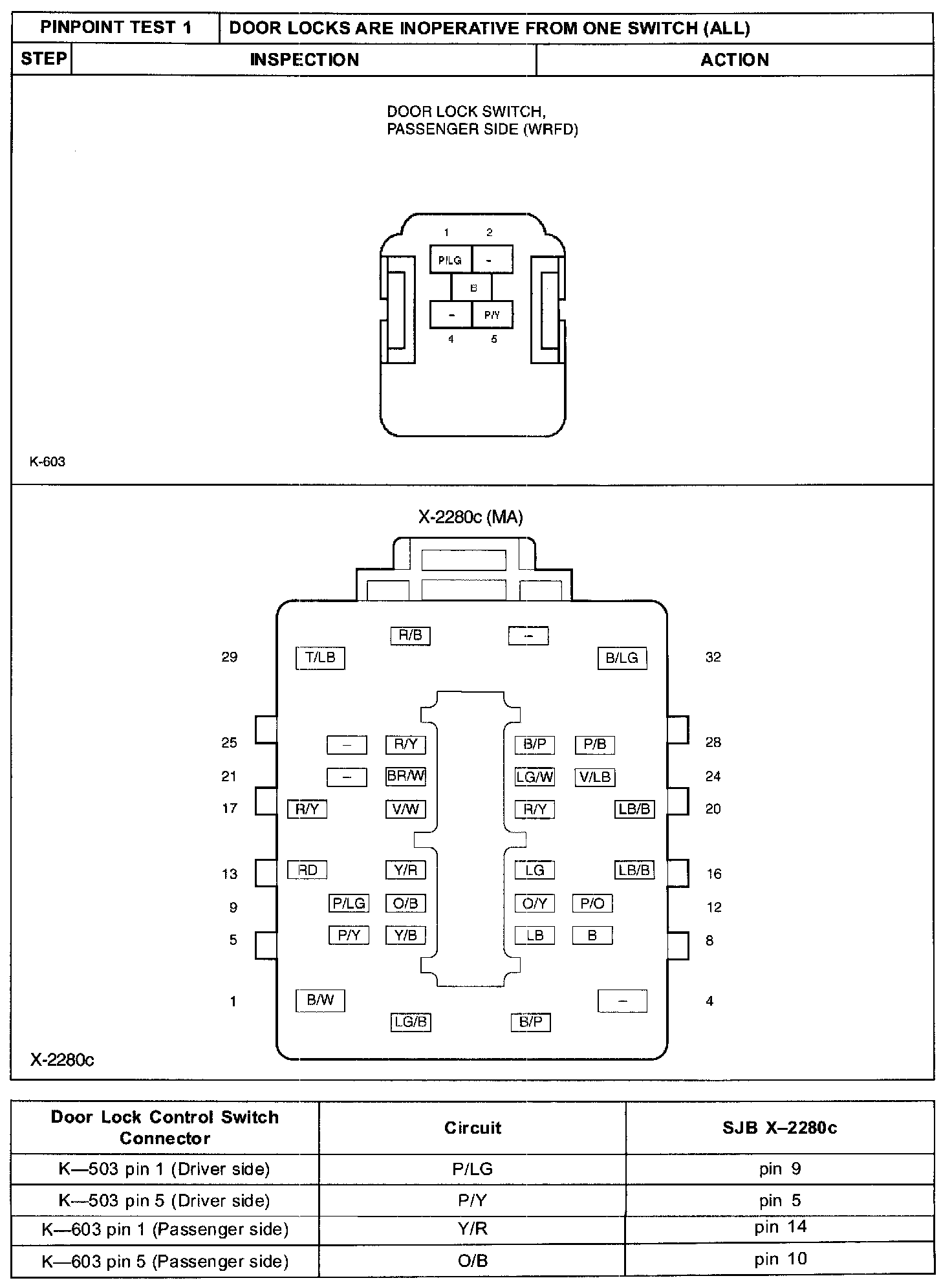

Step 1 - 4:

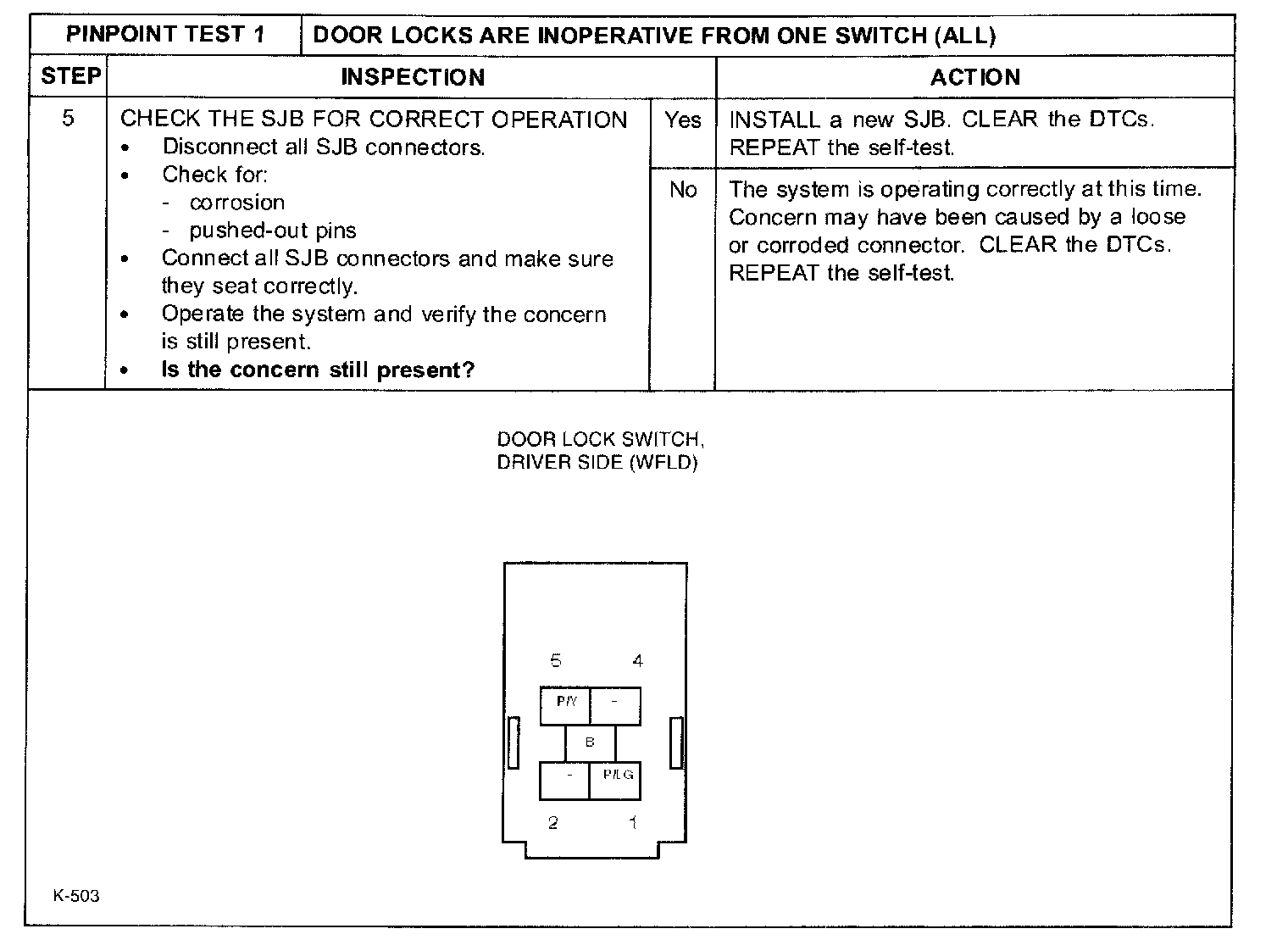

Step 5:
