Power Mirror Switch: Service and Repair

POWER OUTSIDE MIRROR SWITCH REMOVAL / INSTALLATION

1. Remove the door trim finish panel; see DOOR TRIM PANEL FRONT REMOVAL / INSTALLATION.

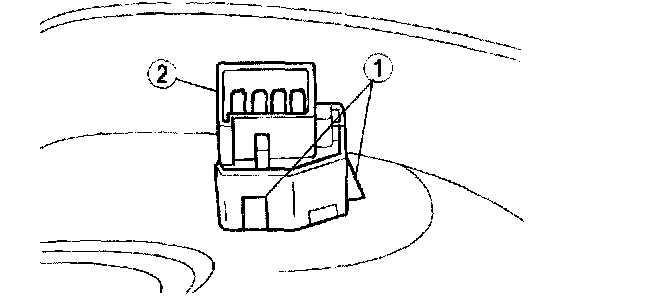

2. Depress the locking tabs (1).
3. Remove the outside mirror switch (2).
4. Install in reverse order of removal.
