Braking Sensor/Switch: Service and Repair

BRAKE PEDAL POSITION (BPP) SWITCH REMOVAL / INSTALLATION

1. Disconnect the negative battery cable.

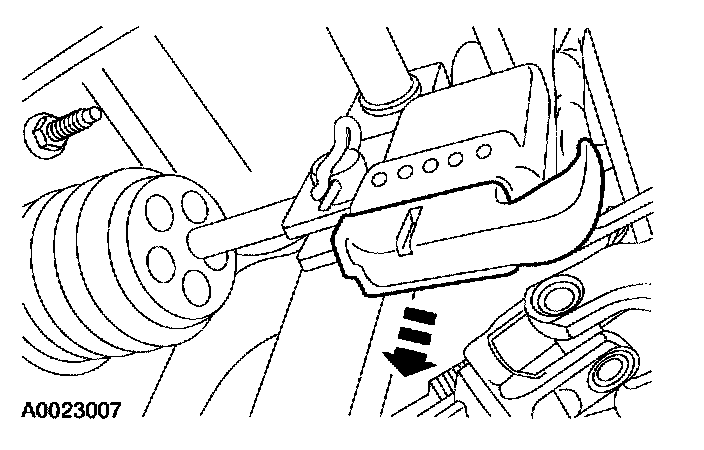

2. Disconnect the BPP switch connector.

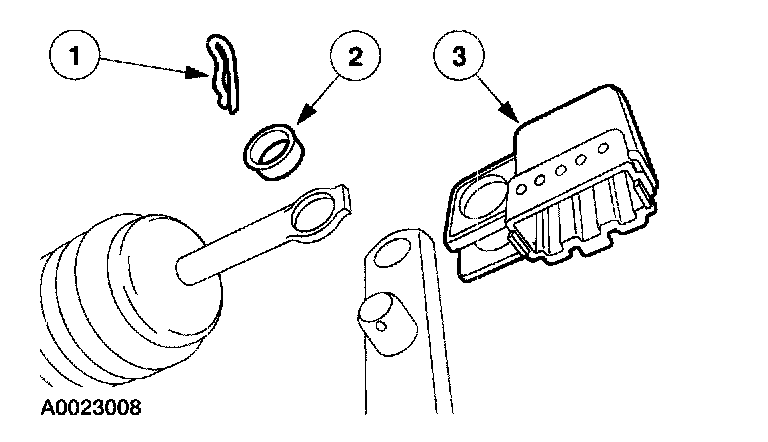

3. Remove the self locking pin (1).
4. Remove the spacer (2).
5. Remove the BPP switch (3).
6. Install in reverse order of removal.
