Fog/Driving Lamp: Service and Repair

FOG LAMP ASSEMBLY REMOVAL / INSTALLATION

1. Remove the front bumper valance panel, see VALANCE PANEL REMOVAL / INSTALLATION.

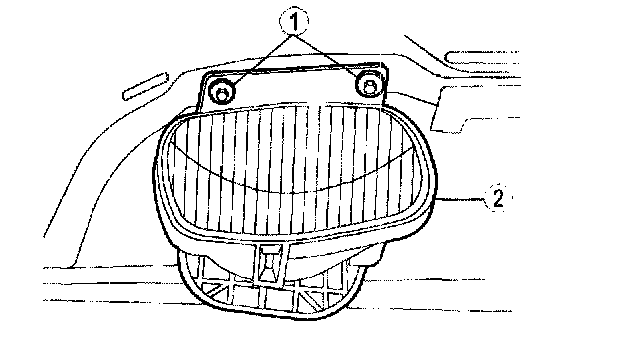

2. Remove the fog lamp assembly.
1. Remove the bolts.
2. Remove the fog lamp assembly.

3. To install, reverse the removal procedure.

Tightening torque: 4 - 6 N.m {41 - 61 kgf.cm, 36 - 53 in.lbf}
