Combination Switch: Testing and Inspection

MULTI-FUNCTION SWITCH -COMPONENT TEST

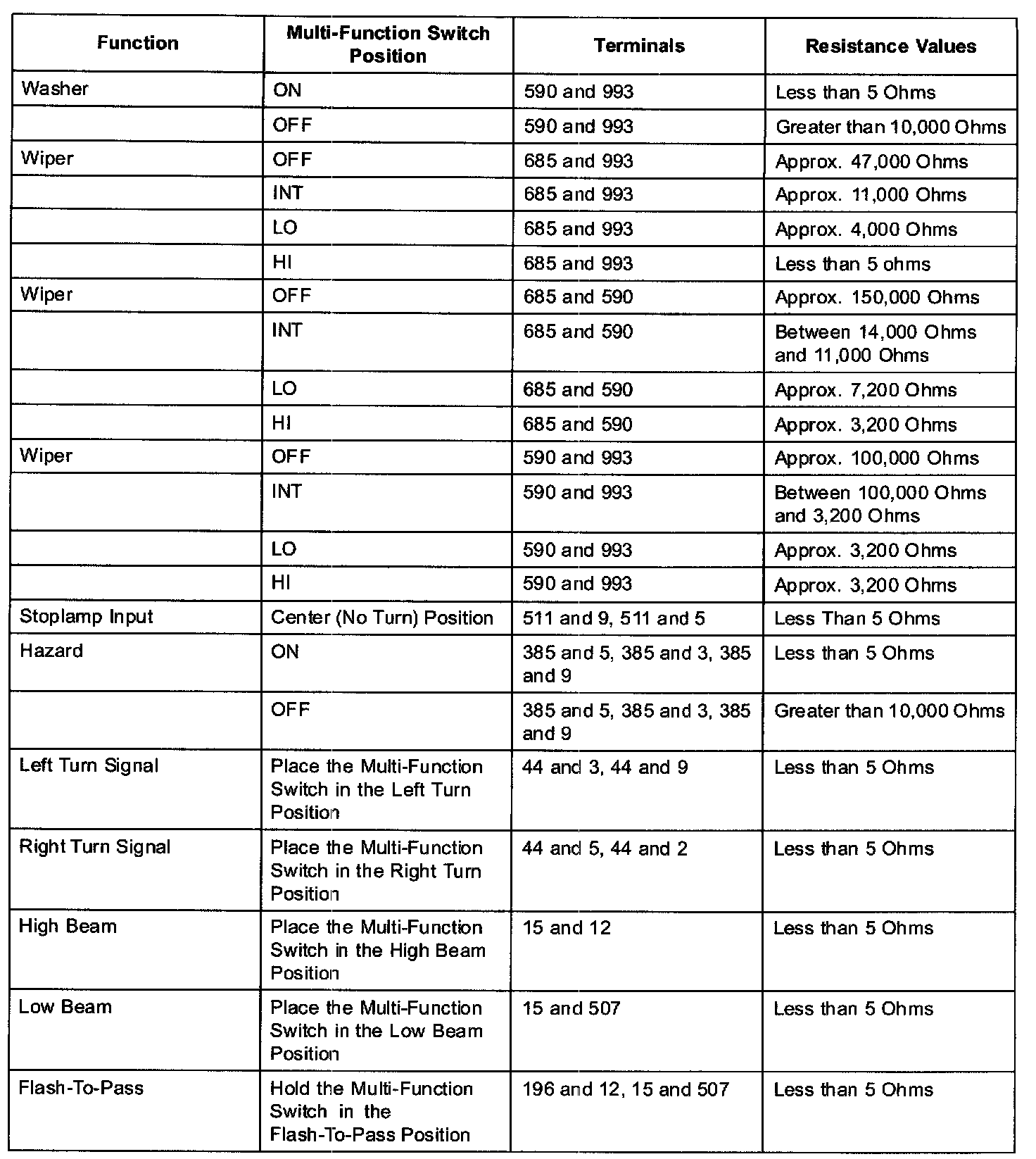

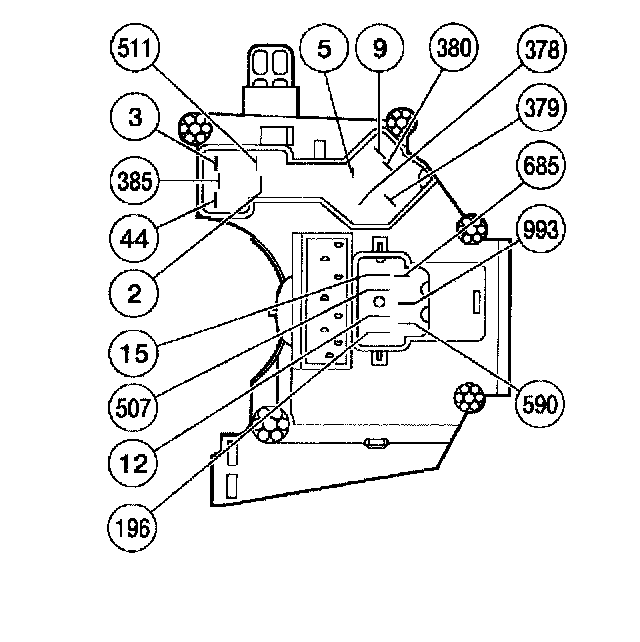

1. Measure the resistance between the multi-function switch terminals.

If the resistances are as specified, the multi-function switch is OK. Return the multi-function switch to the vehicle. Test the system for normal operation.

If the resistances are not as specified, replace the multifunction switch. See MULTI-FUNCTION SWITCH REMOVAL / INSTALLATION. Test the system for normal operation.
