Air Cleaner Housing: Service and Repair

AIR CLEANER REMOVAL/INSTALLATION




1. Remove the tube from the mass airflow (MAF) sensor.

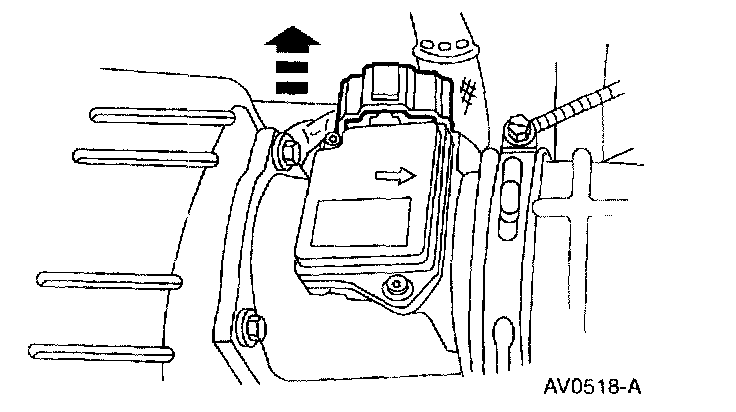

2. Disconnect the MAF sensor electrical connector.

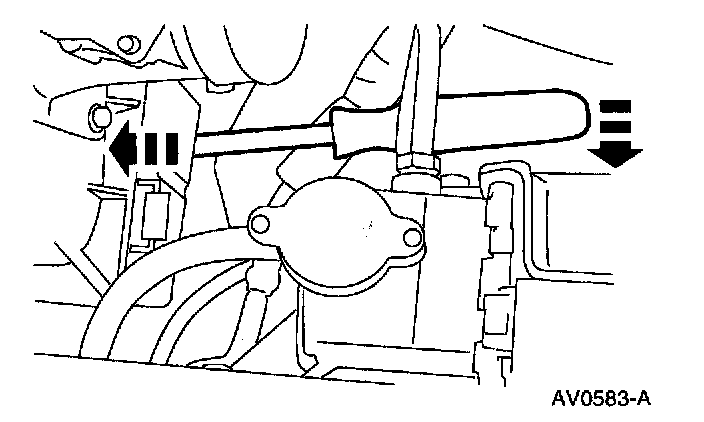

NOTE: Pry the engine air cleaner from the base.

3. Remove the engine air cleaner assembly.

NOTE: Clean the engine air cleaner with a dry, clean cloth.

4. To install, reverse the removal procedure.
