Idle Speed/Throttle Actuator - Electronic: Service and Repair

IDLE AIR CONTROL (IAC) VALVE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

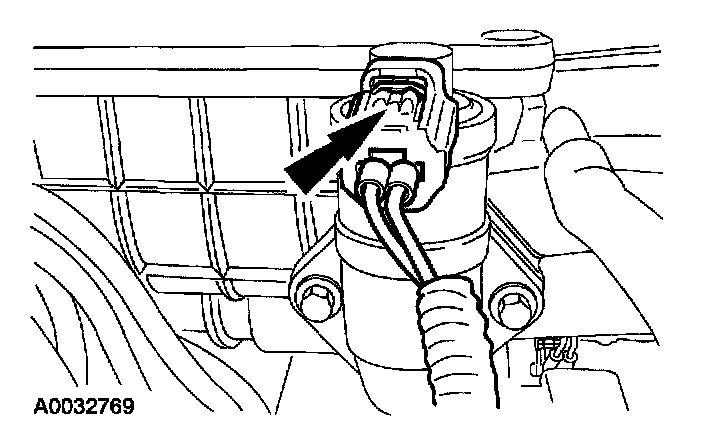

2. Disconnect the idle air control (IAC) valve electrical connector.

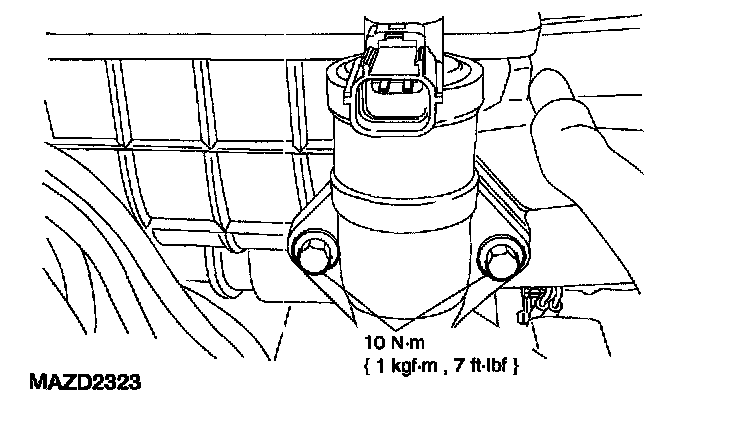

3. Remove the bolts and the IAC valve and discard the gasket.

NOTE: Install a new IAC valve gasket.

4. To install, reverse the removal procedure.
