Diagnosis By Symptom
>>
Symptom Diagnostic Index
Symptom Diagnostic Index

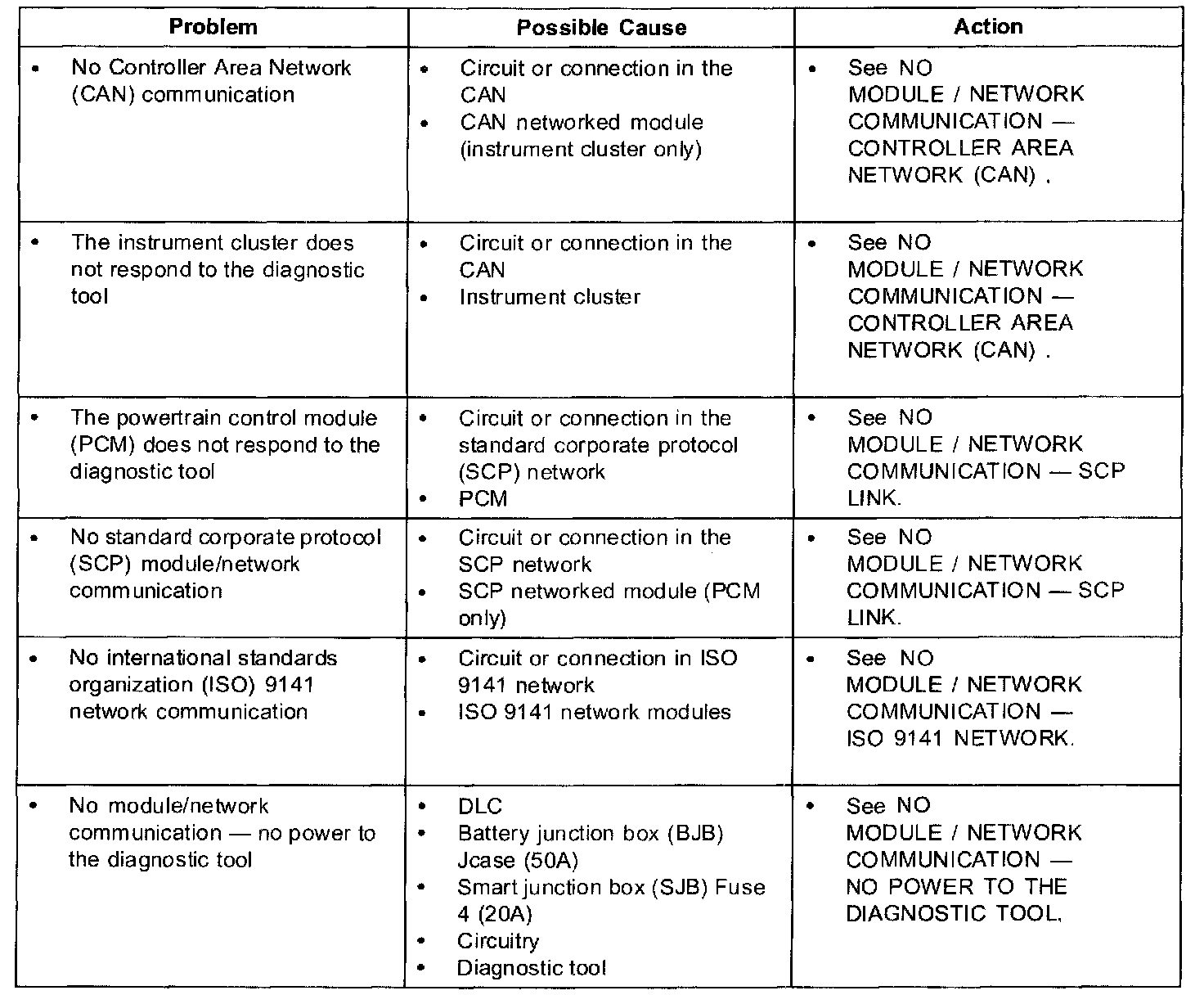

Symptom Troubleshooting Chart - Communications Network Part 1:

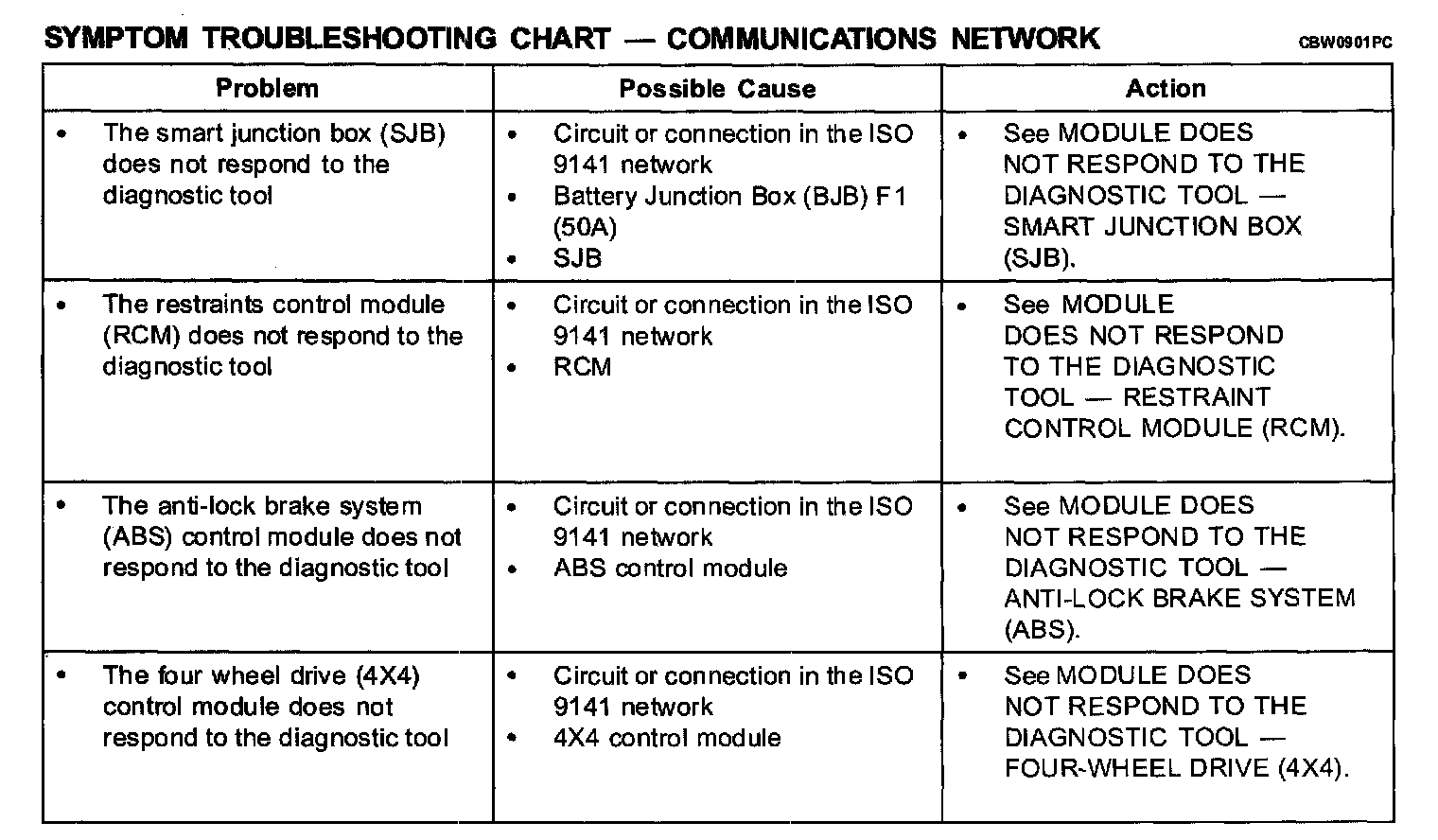

Symptom Troubleshooting Chart - Communications Network Part 2:
