Home >> Mazda >> 2004 >> B2300 L4-2.3L VIN D >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test 12: No Start

Test 12: No Start

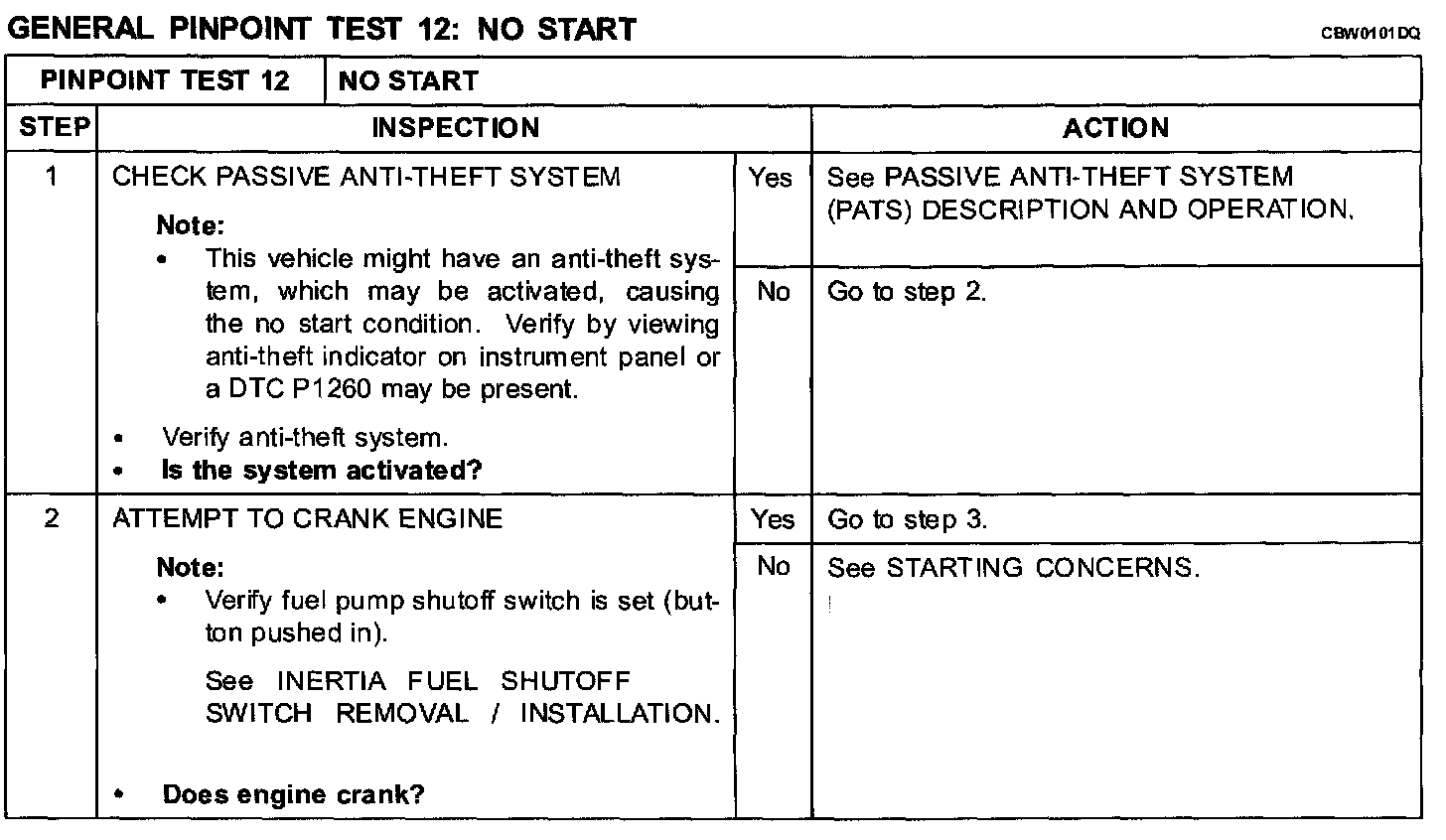

Step 1 - 2:

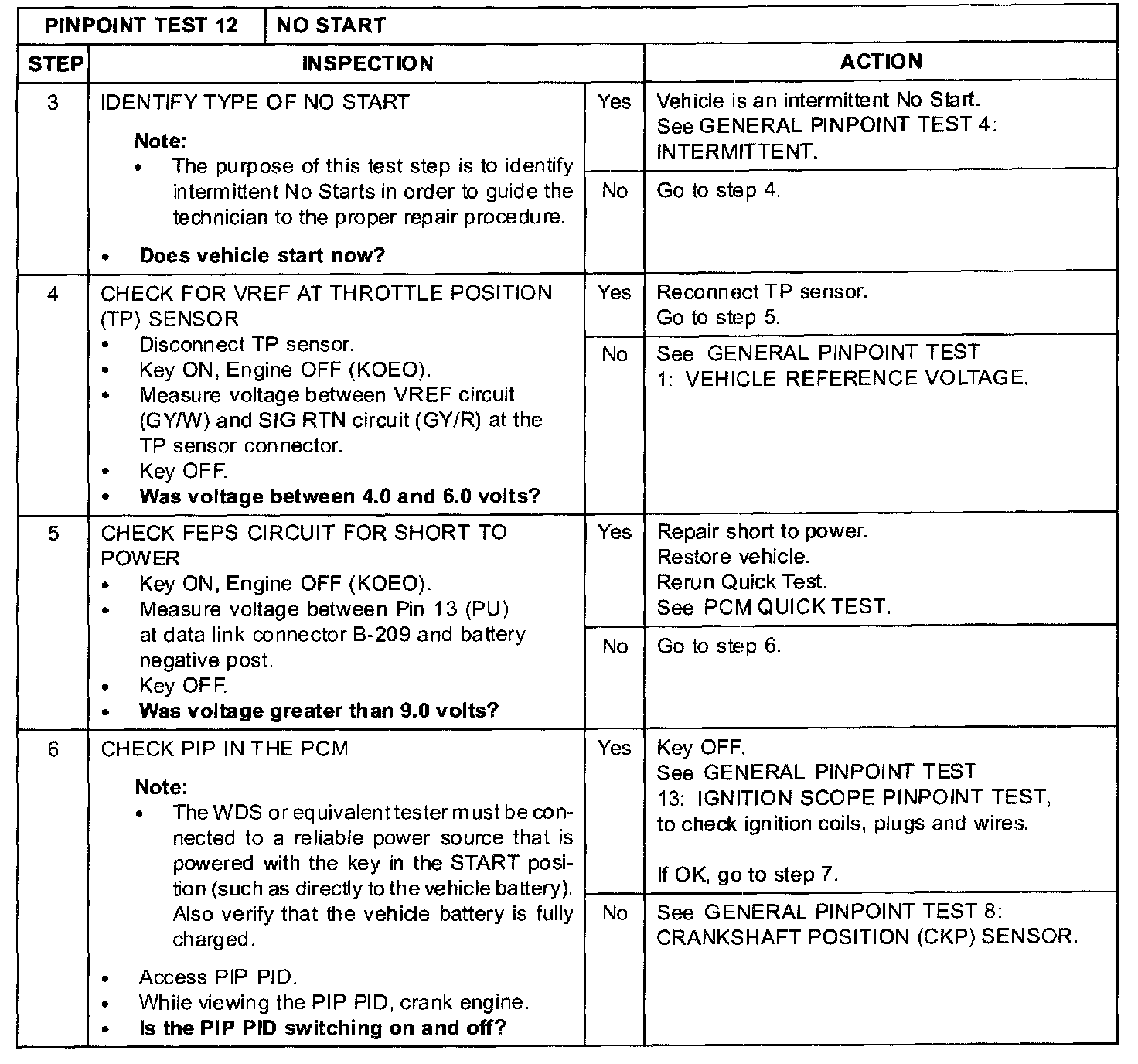

Step 3 - 6:

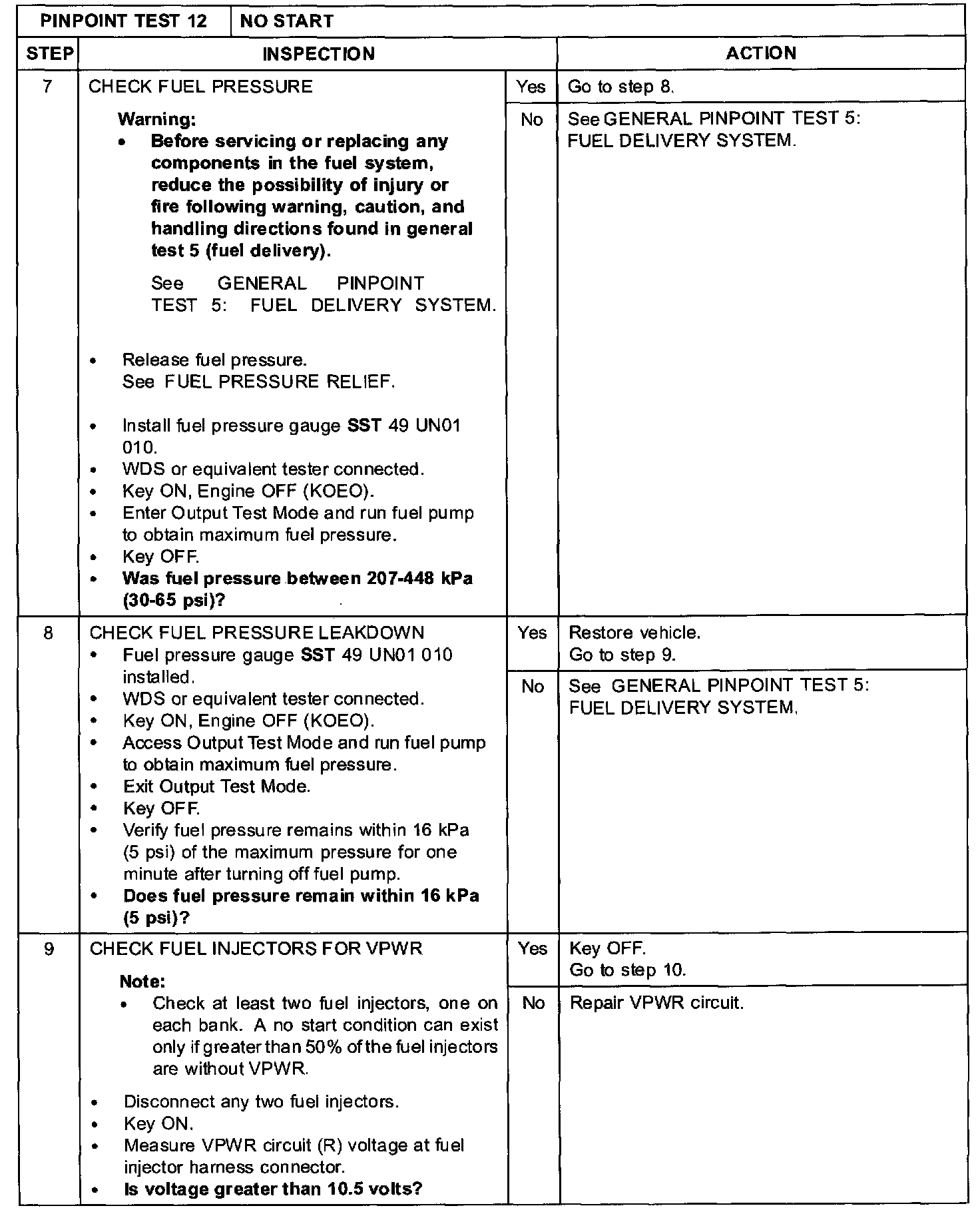

Step 7 - 9:

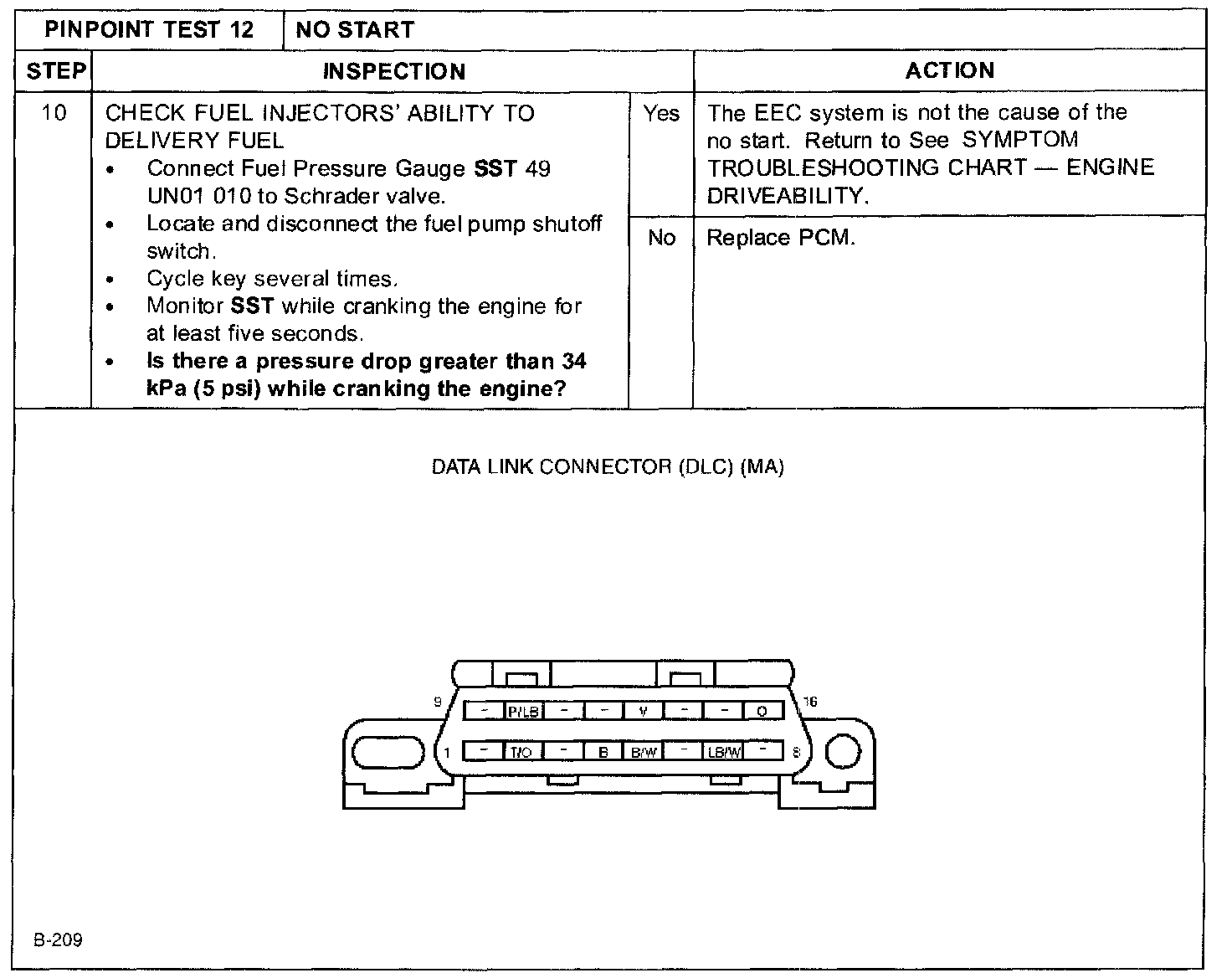

Step 10:
