Operation CHARM: Car repair manuals for everyone.
Home >> Mazda >> 2004 >> B2300 L4-2.3L VIN D >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Charts >> 19. A/C Does Not Work

19. A/C Does Not Work

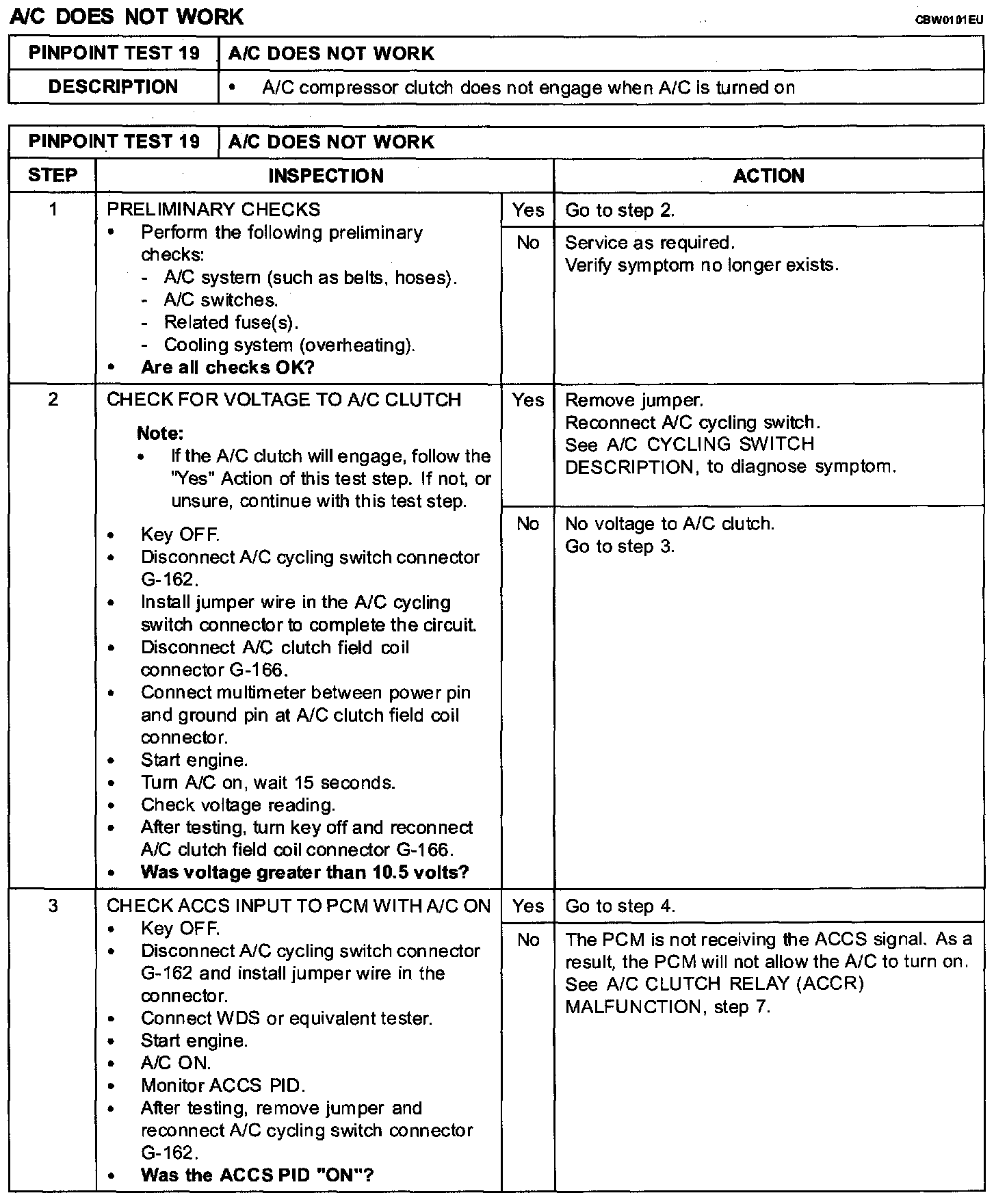

Step 1 - 3:

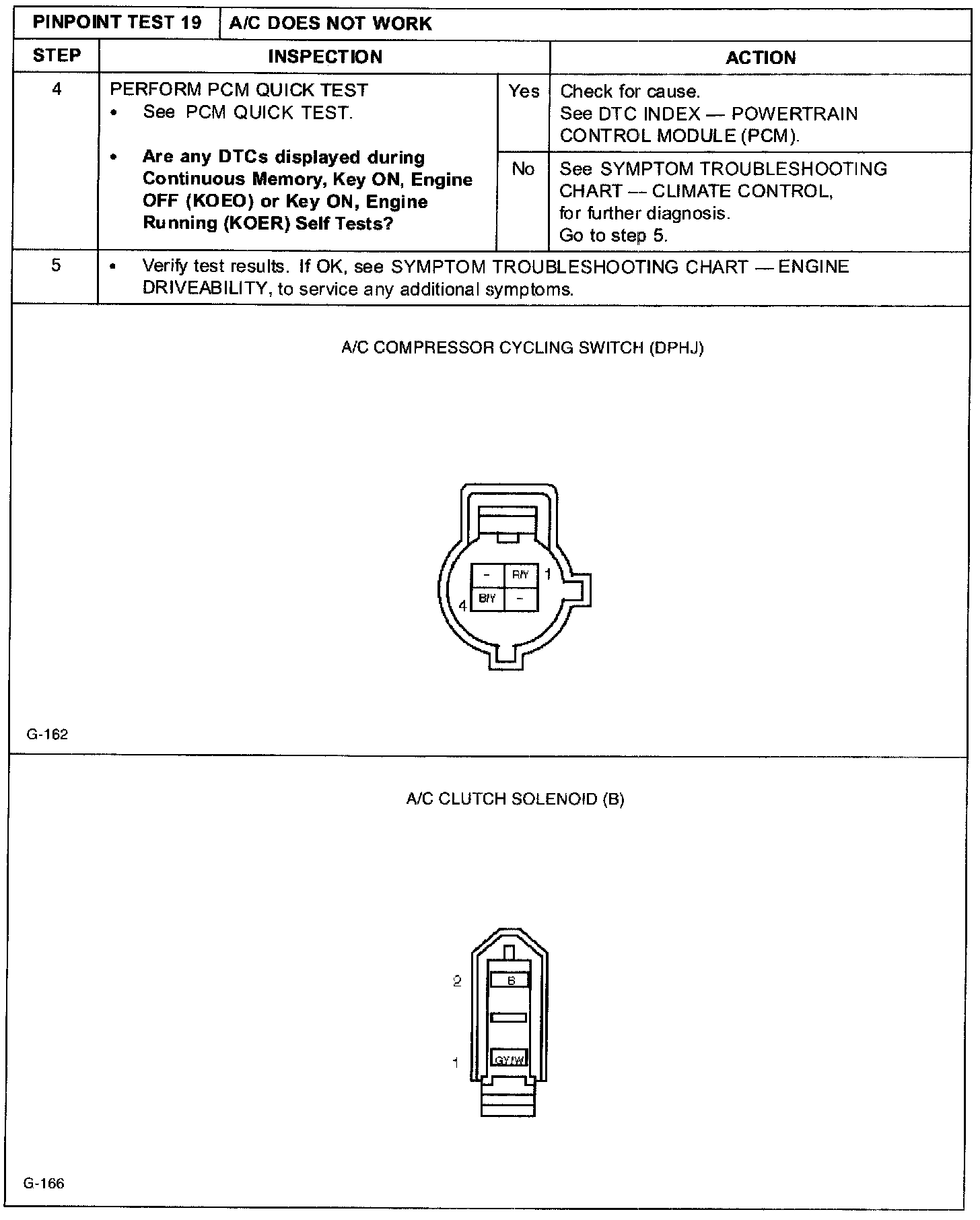

Step 4 - 5:
