Emissions Compliance

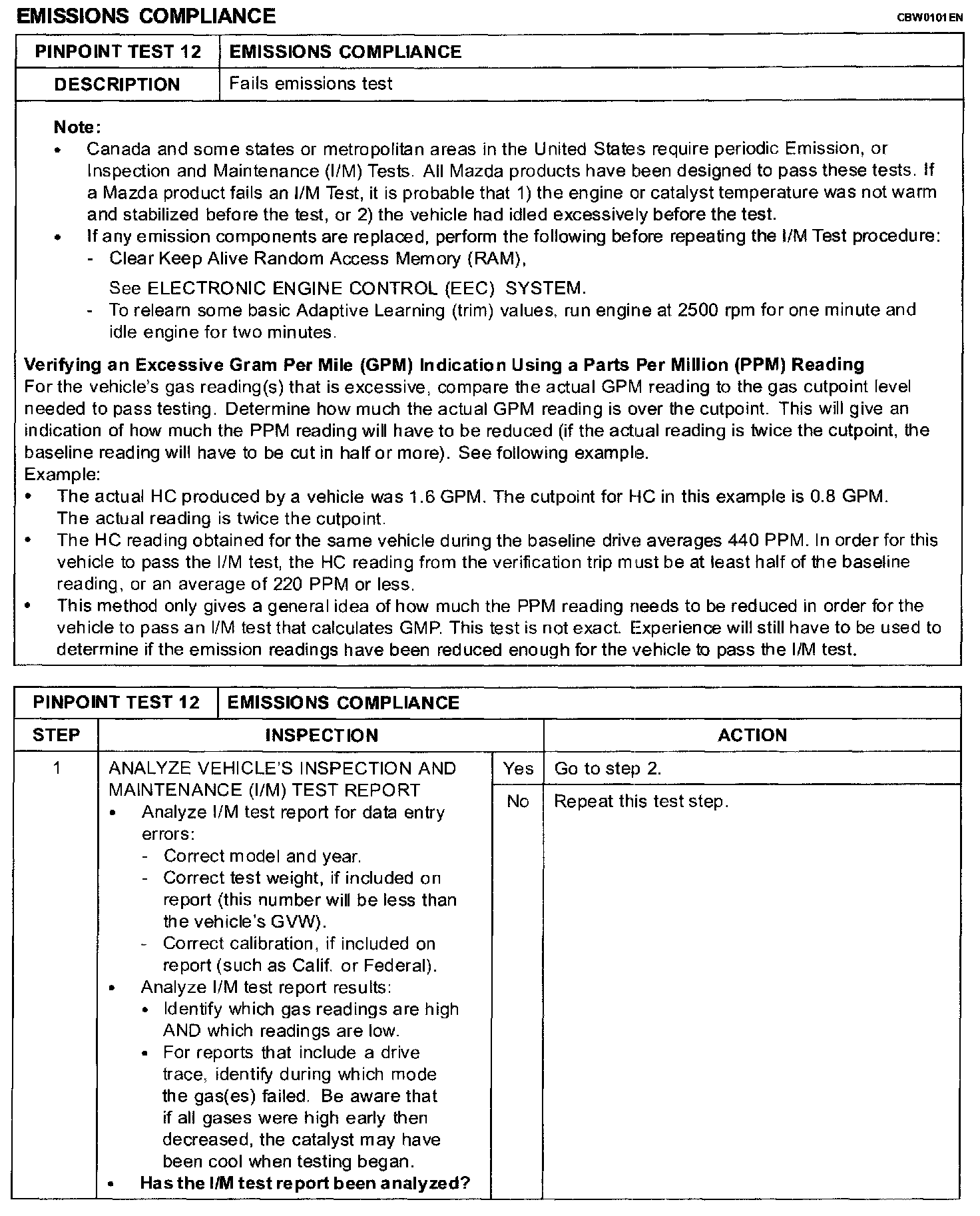

Step 1:

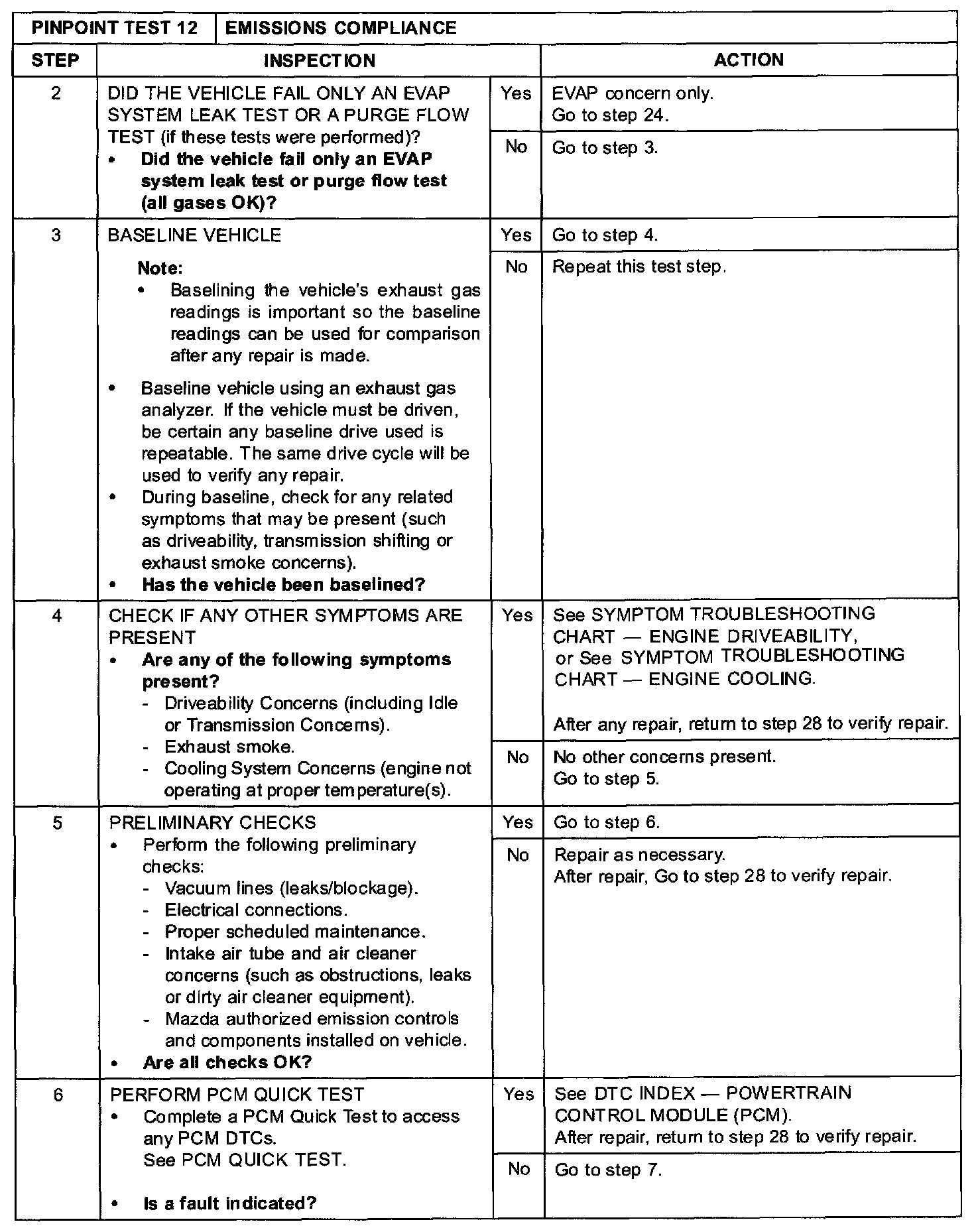

Step 2 - 6:




Step 7 - 14:

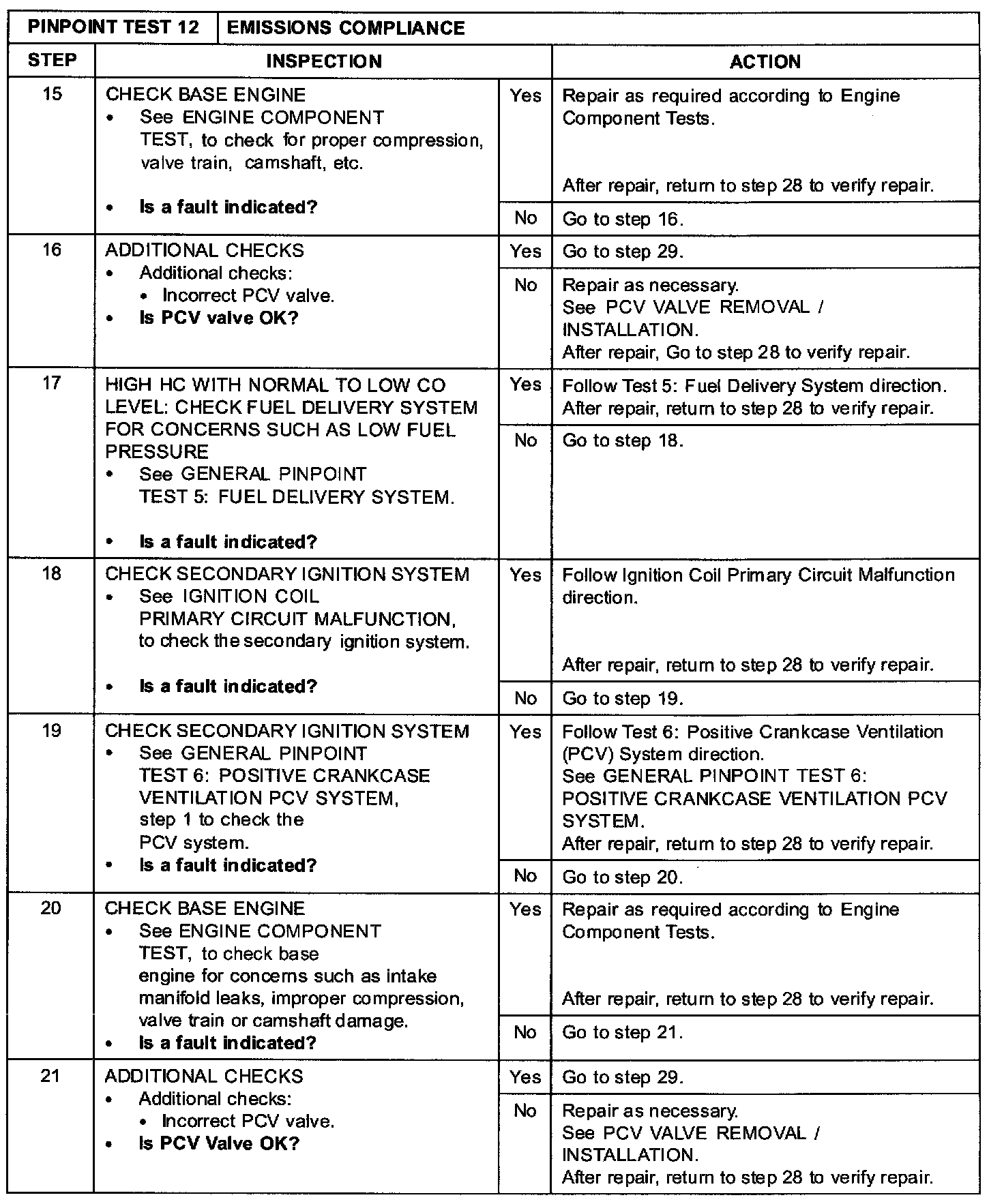

Step 15 - 21:

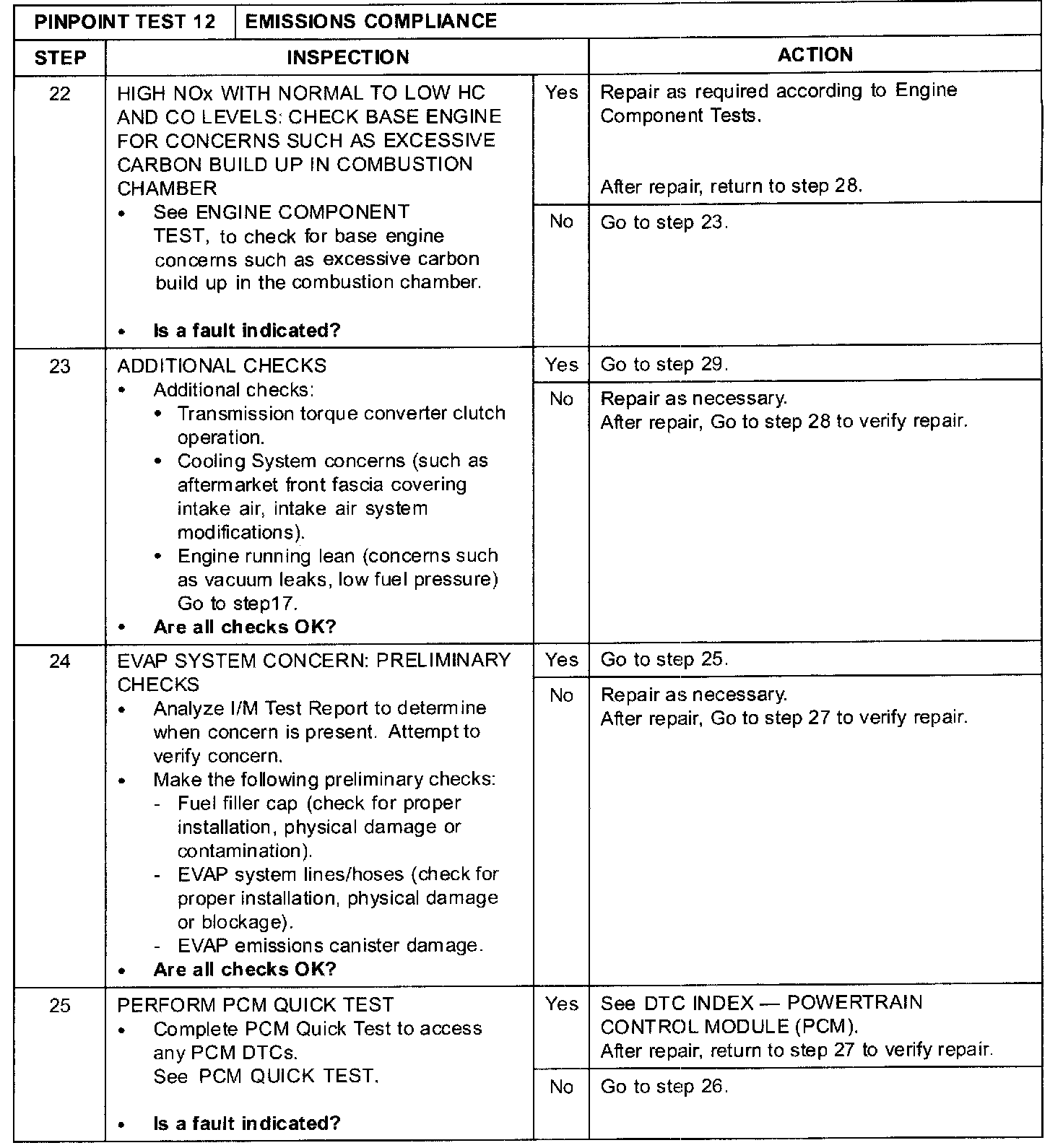

Step 22 - 25:

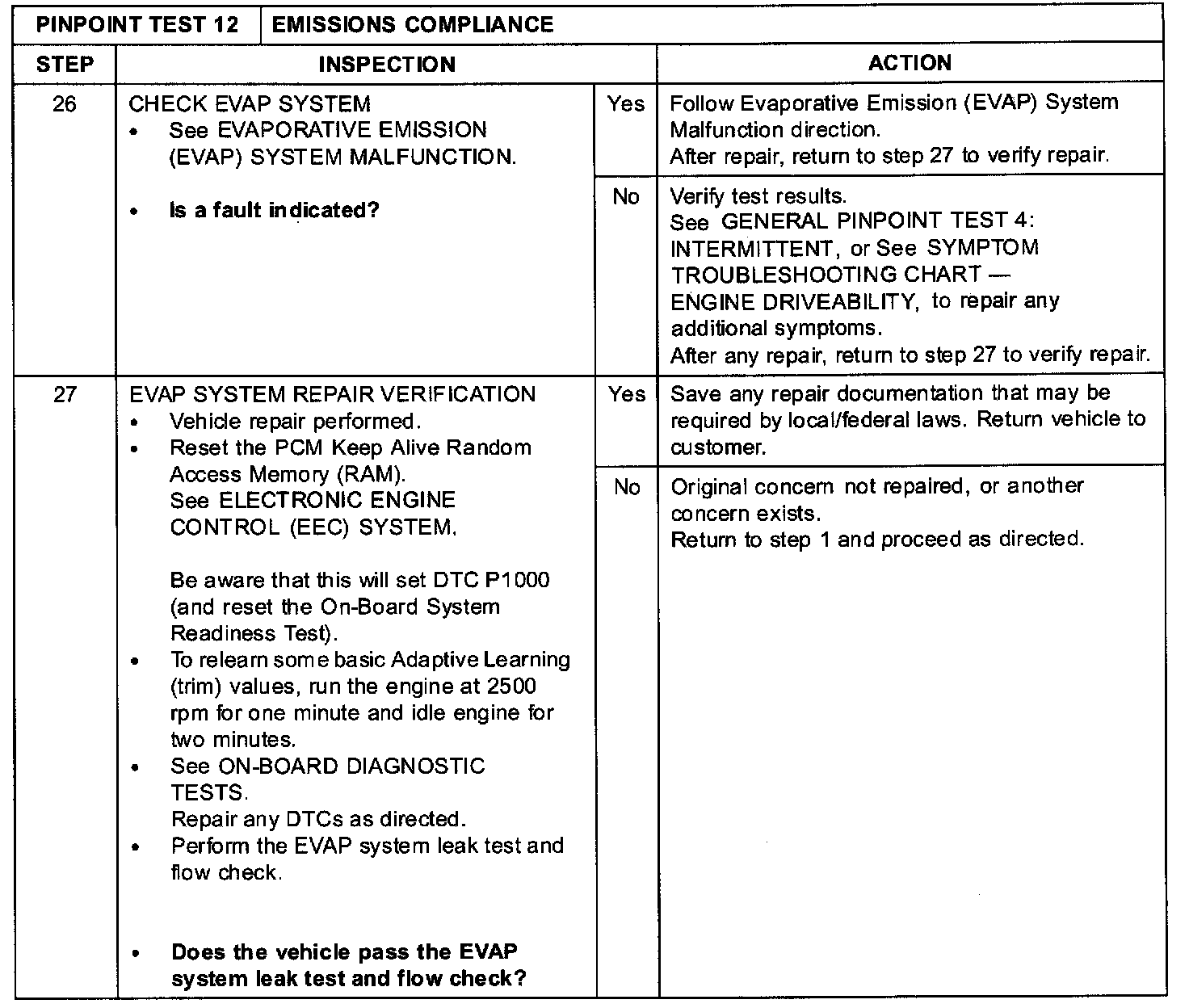

Step 26 - 27:

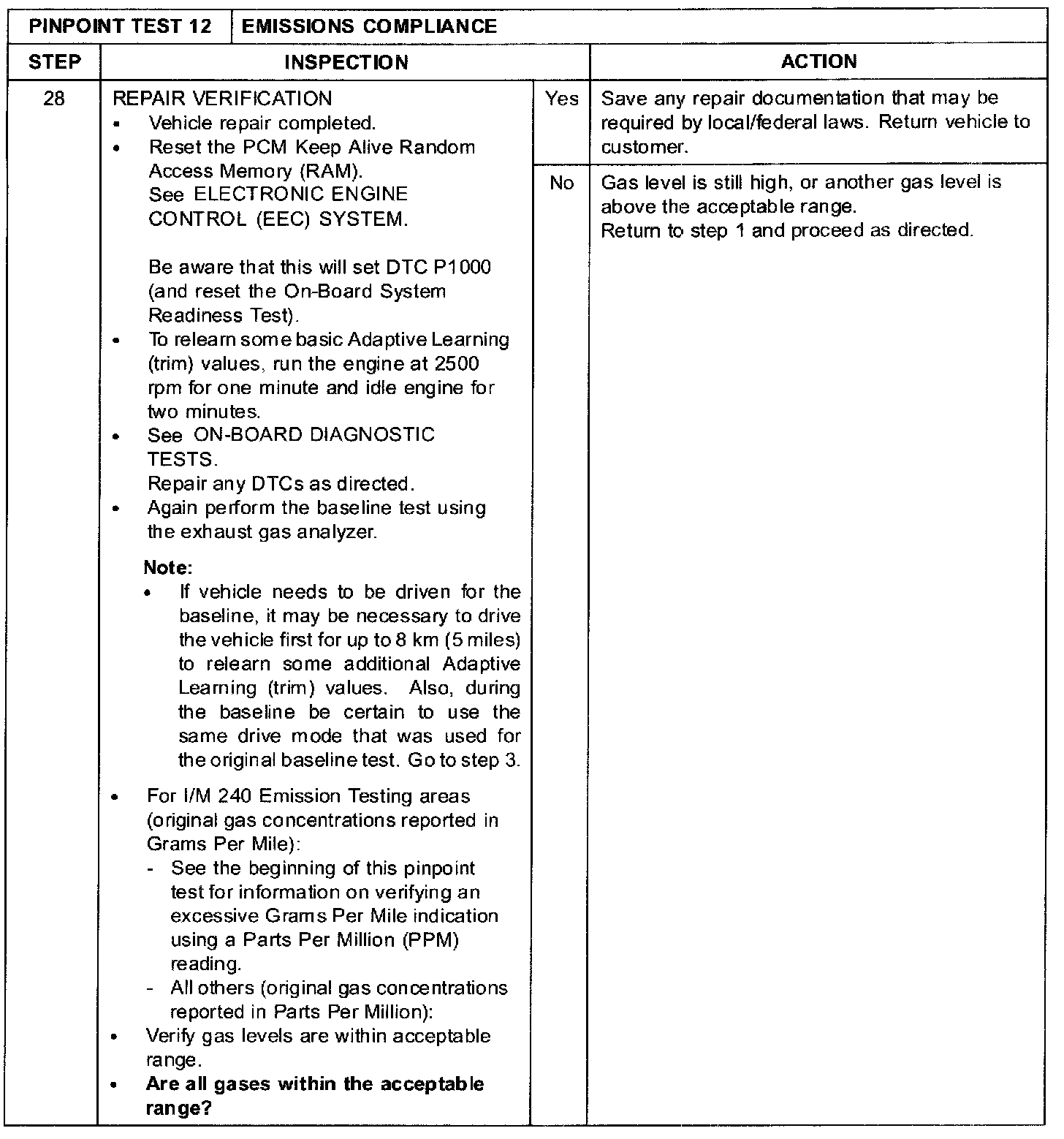

Step 28:

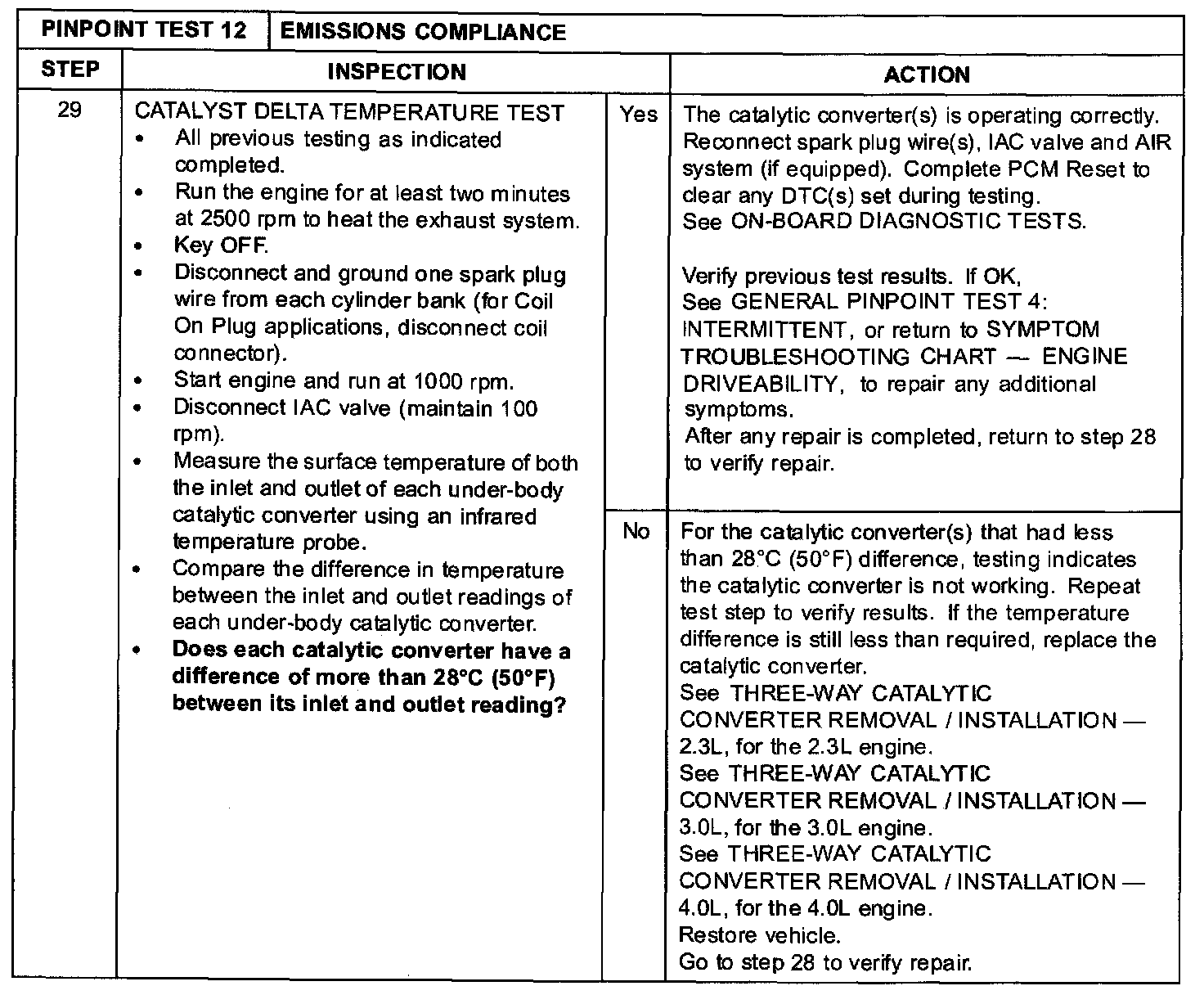

Step 29:
