Valve Clearance
Valve Clearance

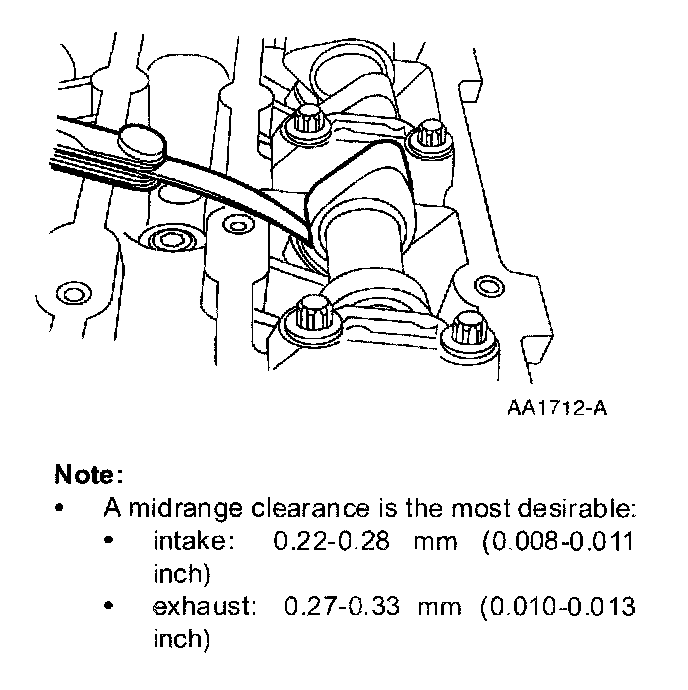

Use a feeler gauge to measure each valve's clearance and record its location.
Note:
Select tappets using this formula: tappet thickness = measured clearance plus the base tappet thickness minus most desirable thickness.
