Clutch Switch: Service and Repair

CLUTCH PEDAL POSITION (CPP) SWITCH REMOVAL/INSTALLATION

1. Disconnect negative battery cable.

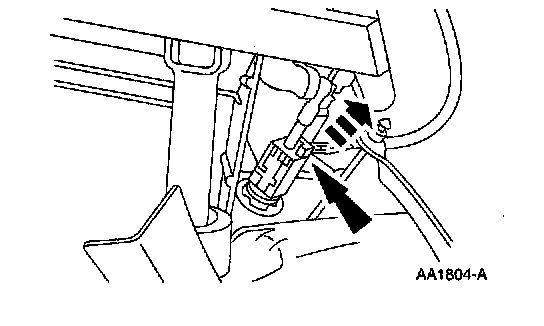

2. Disconnect clutch pedal position (CPP) switch electrical connector.

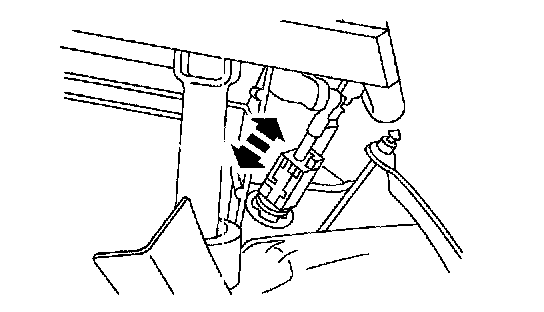

3. Spread the CPP switch apart and remove from the pedal rod.
4. Install in reverse order of removal.
