Pinpoint Test 5

Test 1-4:

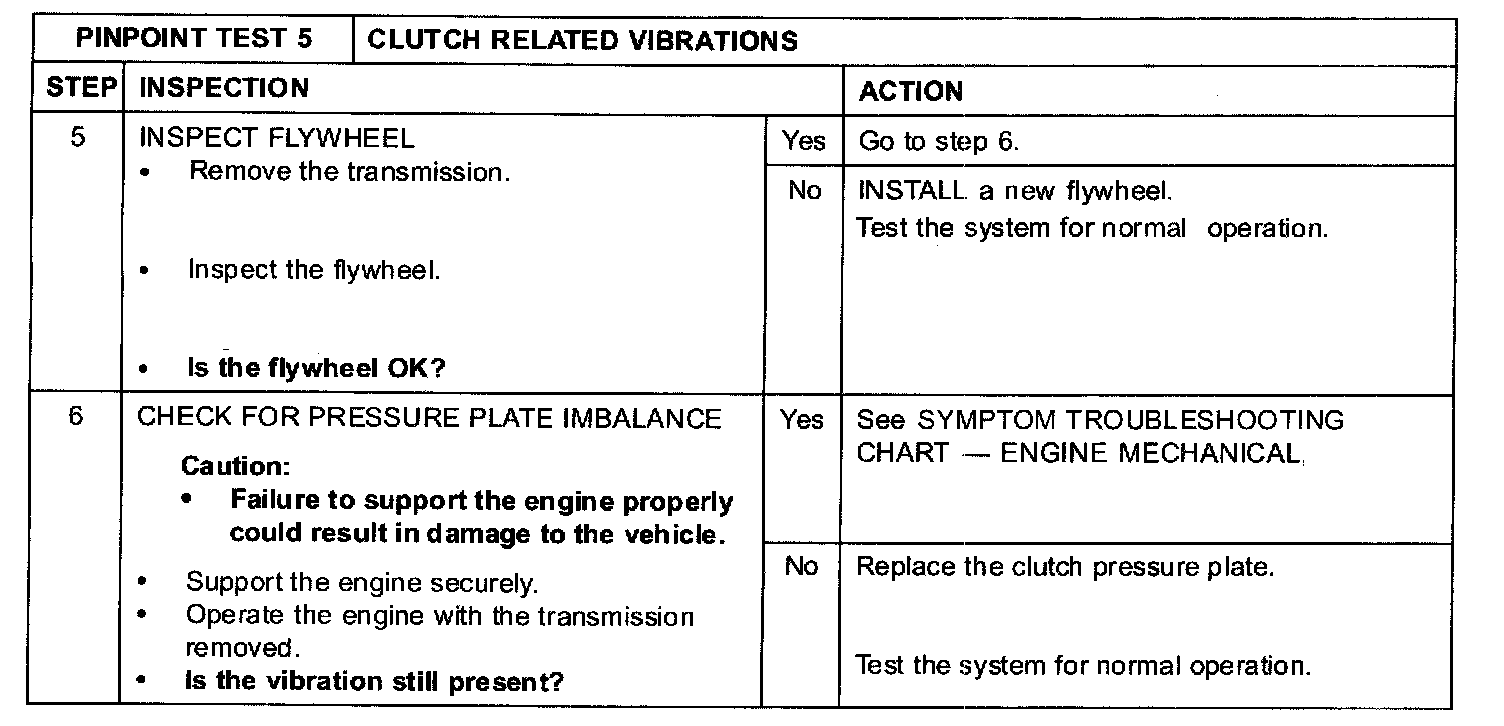

Test 5-6:





MANUAL TRANSMISSION/CLUTCH PINPOINT TEST 5: CLUTCH RELATED VIBRATIONS
