Drive Belt: Service and Repair

DRIVE BELT REMOVAL / INSTALLATION

Note:
^ Conditions requiring replacement of the drive belt are excessive cracking or wear, severe glazing or frayed cords. Replace drive belts exhibiting any of these conditions. Minor cracks in the back of the drive belt are considered acceptable.

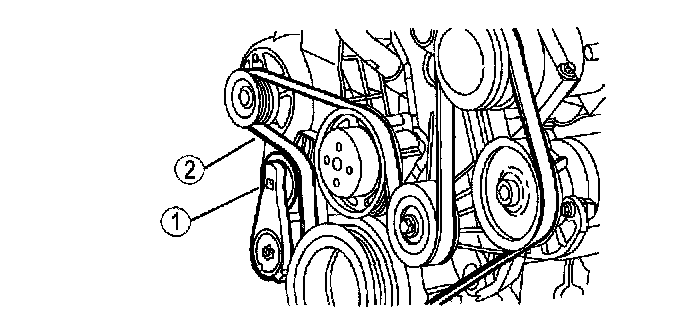

1. Remove the drive belt.
1. Rotate the belt tensioner.
2. Remove the drive belt.

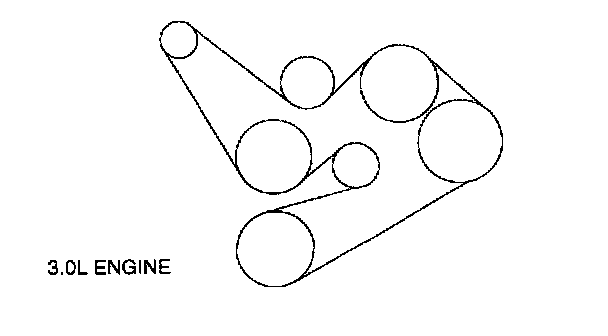

2. Install in the reverse order of removal.
