Oil Pan, Engine

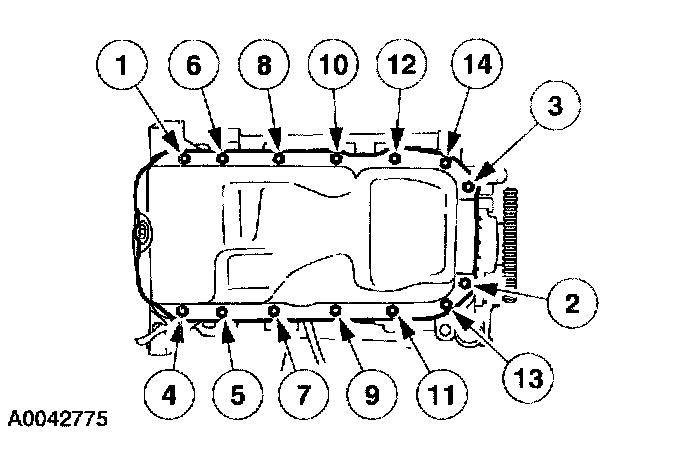

Oil pan torque and sequence





Install the oil pan and tighten the bolts in two stages.
Stage 1: Starting from the rear of the oil pan, hand tighten the fasteners.
Stage 2: Starting from the rear of the oil pan, tighten the fasteners to 12 Nm (1.2 kgf-cm (9 ft. lbs.)
