Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION

Removal and Installation

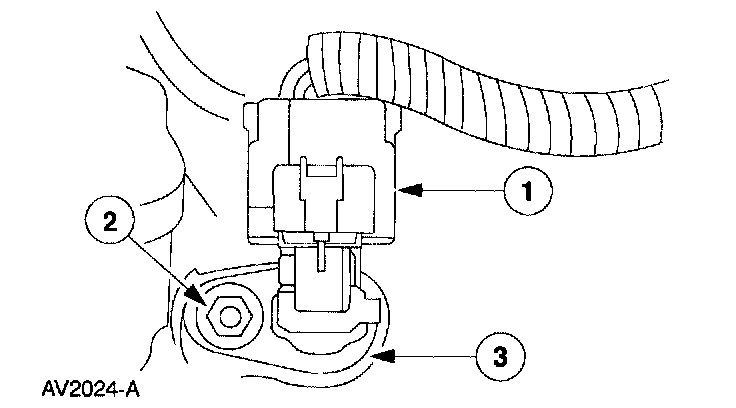

1. Remove the camshaft position (CMP) sensor
1. Disconnect the electrical connector.
2. Remove the bolt.
3. Remove the sensor.

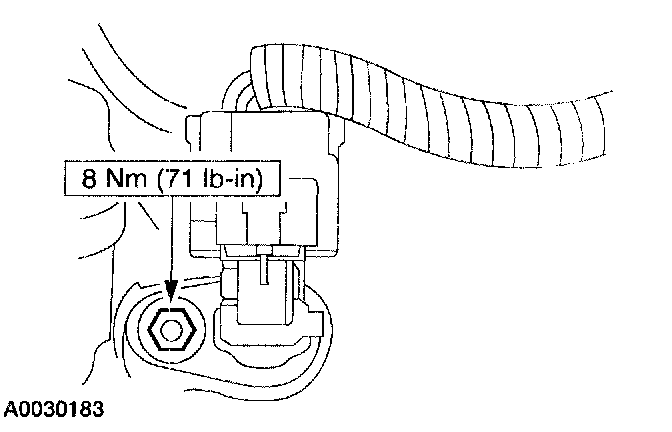

2. To install, reverse the removal procedure.
