Tightening Torque and Sequence

Cylinder Head Torque & Sequence

1. Position the cylinder head gasket and the cylinder head.





2. Install the 12 mm bolts and tighten in the sequence shown.





3. Install the two 8 mm bolts.





4. Tighten the eight 12 mm bolts in the sequence shown in two stages.
^ Stage 1: Tighten the bolts 80 degrees.
^ Stage 2: Tighten the bolts an additional 80 degrees.

Head Bolt Reuse/Replace
Note:
^ Reuse cylinder head bolts

Intake Manifold Torque & Sequence






Crankshaft Pulley torque & sequence





Install a new crankshaft pulley bolt.
Tighten the bolt in two stages:
Stage 1: Tighten the bolt to 50 Nm (37 ft. lbs.)
Stage 2: Tighten the bolt an additional 90 degrees

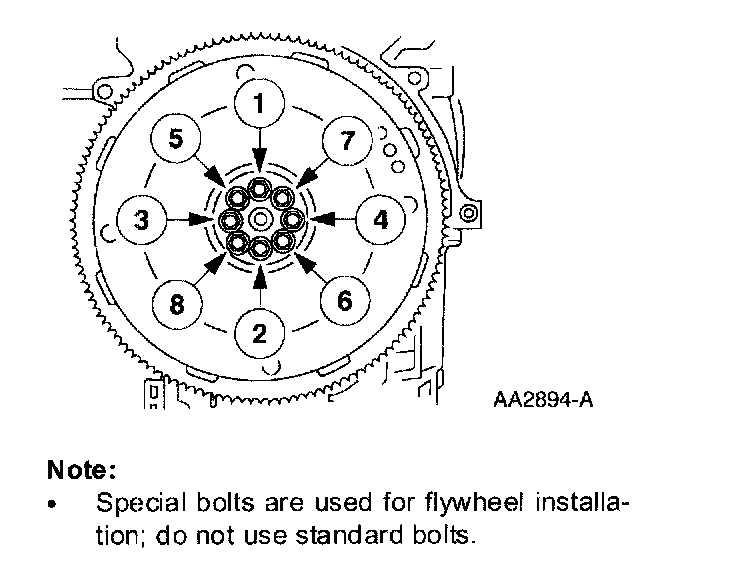

Flex Plate torque and sequence

Note:
^ Special bolts are used for flywheel installation; do not use standard bolts.





Tighten the bolts in the sequence shown in two stages.
Stage 1: Tighten the bolts to 13 Nm (1.3 kgf-cm, 10 ft. lbs.)
Stage 2: Tighten the bolts to 71 Nm (7.1 kgf-cm, 52 ft. lbs.)

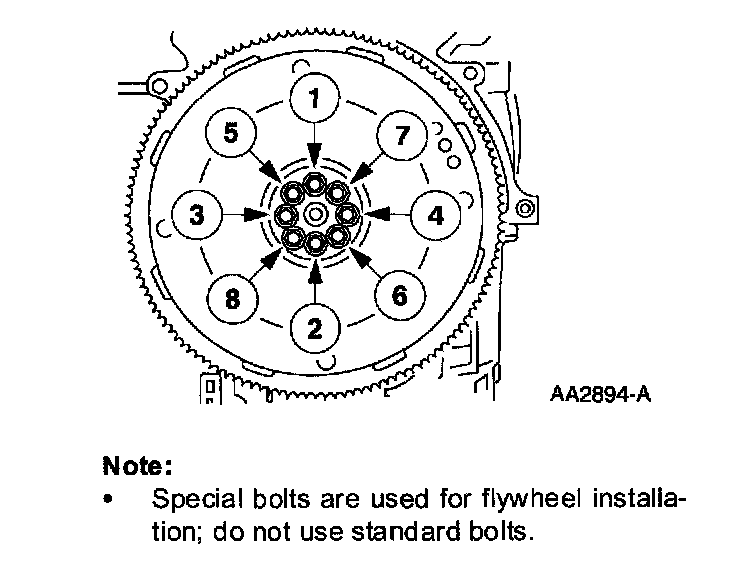

Flywheel torque and sequence

Note:
^ Special bolts are used for installation. Do not use standard bolts.





Tighten the bolts in the sequence shown in two stages.
Stage 1: Tighten the bolts to 13 Nm (1.3 kgf-cm, 10 ft. lbs.)
Stage 2: Tighten the bolts to 71 Nm (7.1 kgf-cm, 52 ft. lbs.)

Exhaust Manifold RH torque and sequence





Tighten the nuts in the sequence shown.

Exhaust Manifold LH torque and sequence





Tighten the nuts in order shown.

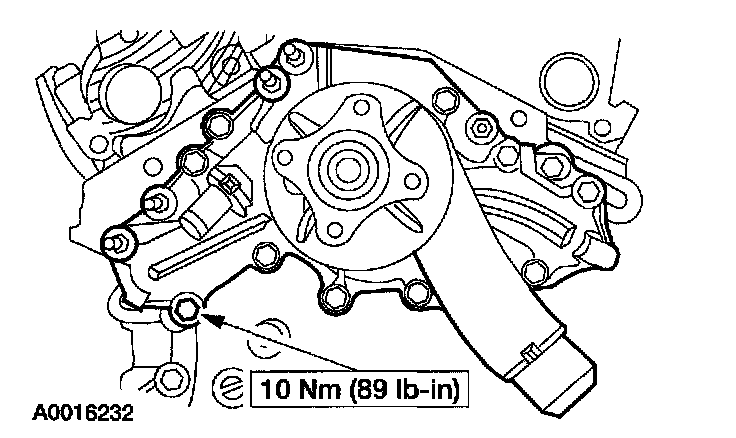

Water pump and bolt torque
