Drive Belt: Service and Repair

DRIVE BELT REMOVAL / INSTALLATION
1. Remove the air cleaner outlet tube.
2. Remove the drive belt.

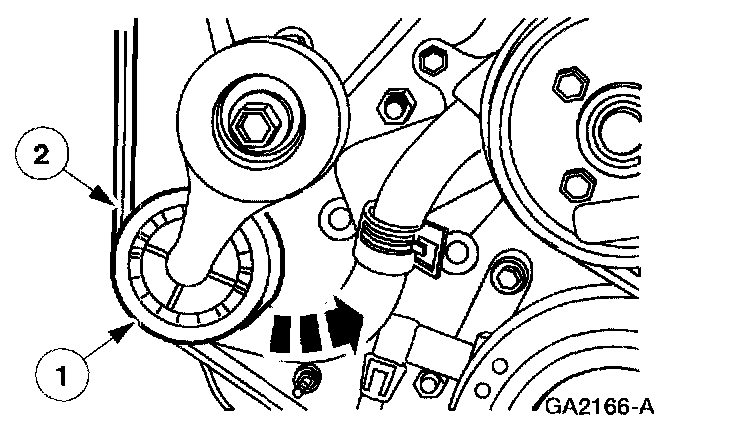

1. Rotate the drive belt tensioner counterclockwise.
2. Remove the drive belt.
3. To install, reverse the removal procedure.
