General Specifications

ENGINE SPECIFICATIONS








Engine Specifications

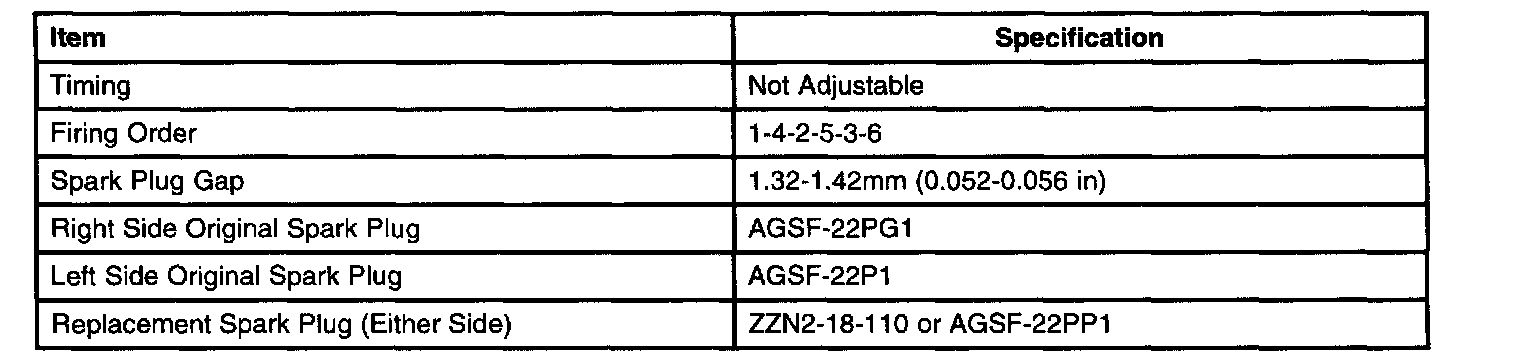

Engine Ignition Specifications
Refer to Vehicle Emission Control Information (VECI) decal for spark plug is removed for examination, it must be reinstalled in the same cylinder. Cylinders 1, 2 and 3 use a "PG" suffix. Cylinders 4, 5 and 6 use a "P" suffix. If a spark plug needs to be replaced, use only spark plugs with the part number suffix letter "PP" as shown on the engine decal.

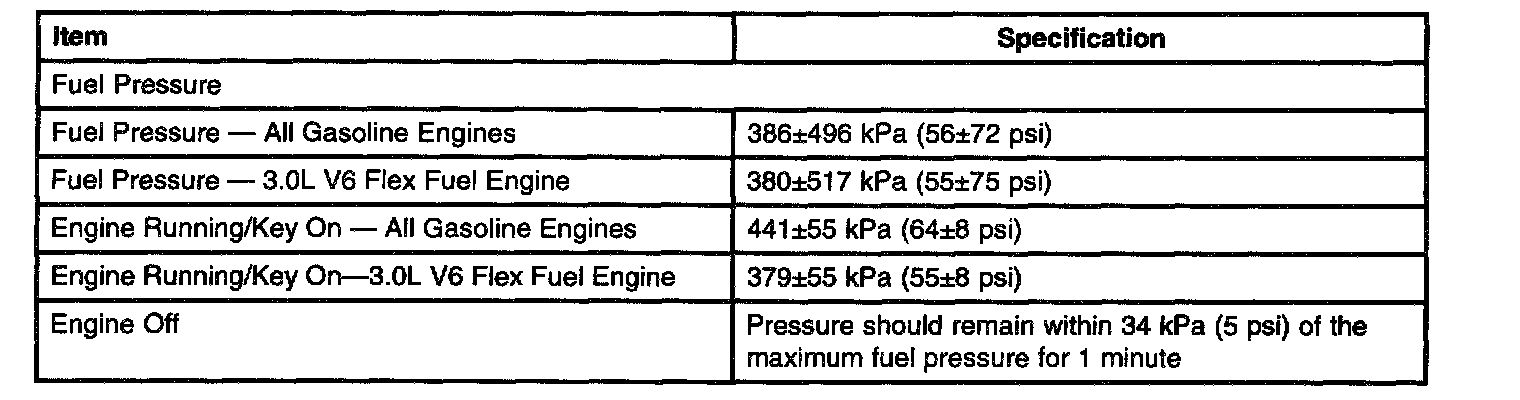

Fuel System Specifications

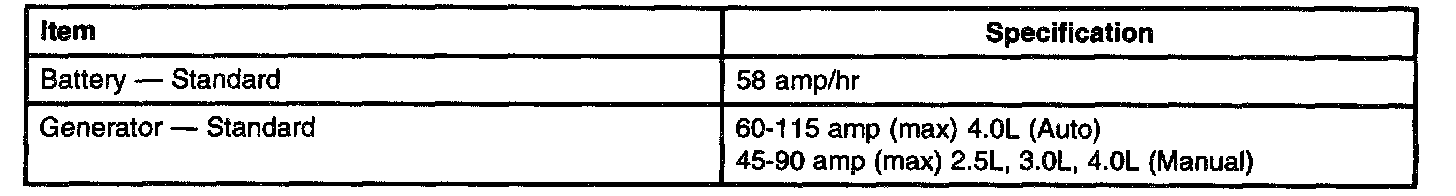

Charging System Specifications









Starting System Specifications
