Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2004
>>
B4000 4WD V6-4.0L SOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transfer Case
>>
Control Module
>>
Locations

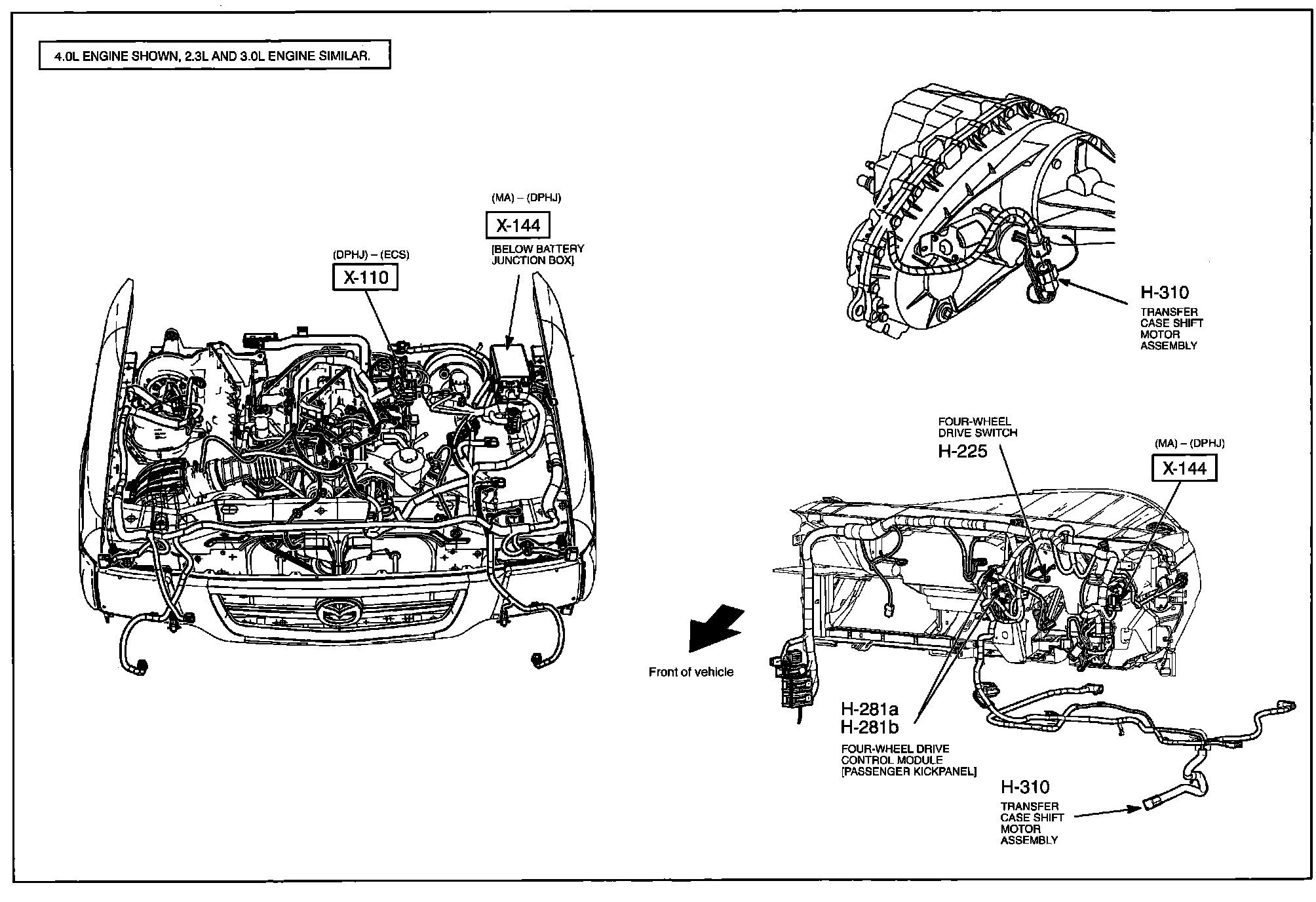

Control Module: Locations
Routing View H-2b:
