Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2004
>>
MPV V6-3.0L DOHC
>>
Parts and Labor
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Images
Images

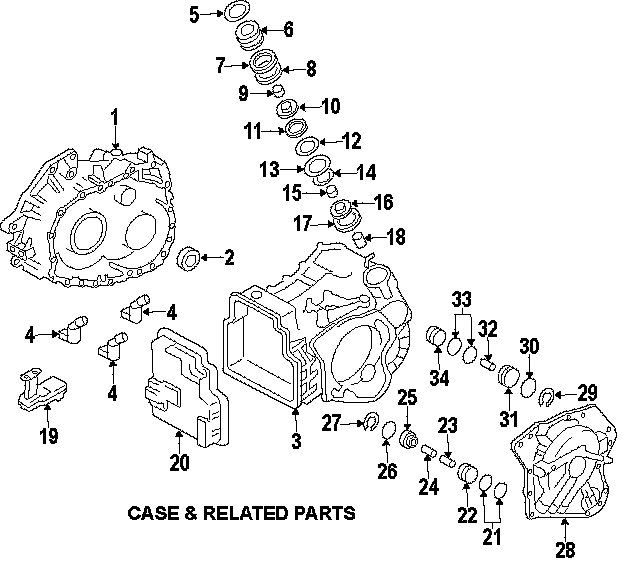

Case & Related Parts:

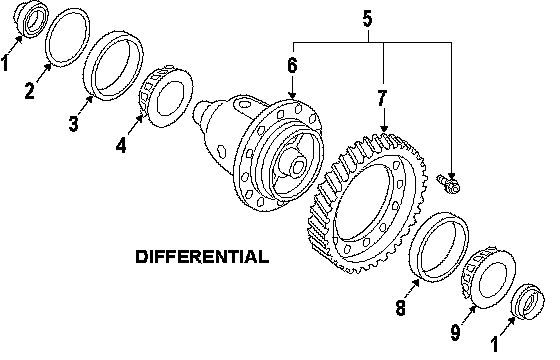

Differential:

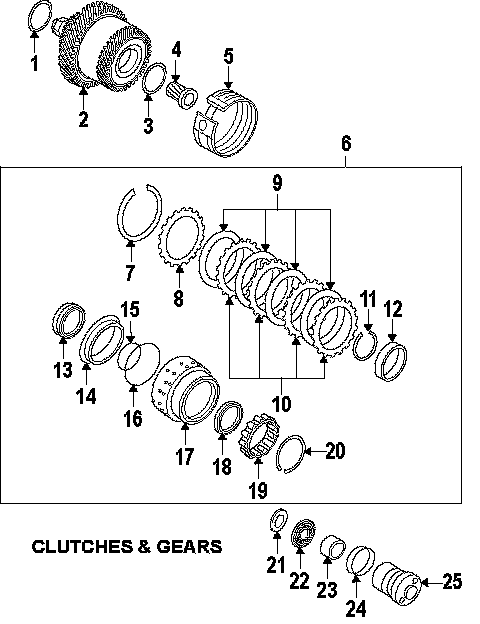

Clutches & Gears:

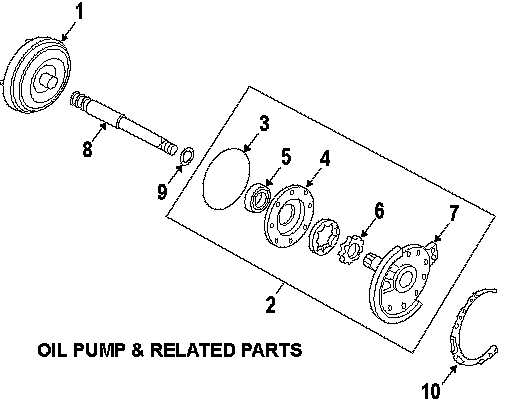

Oil Pump & Related Parts:

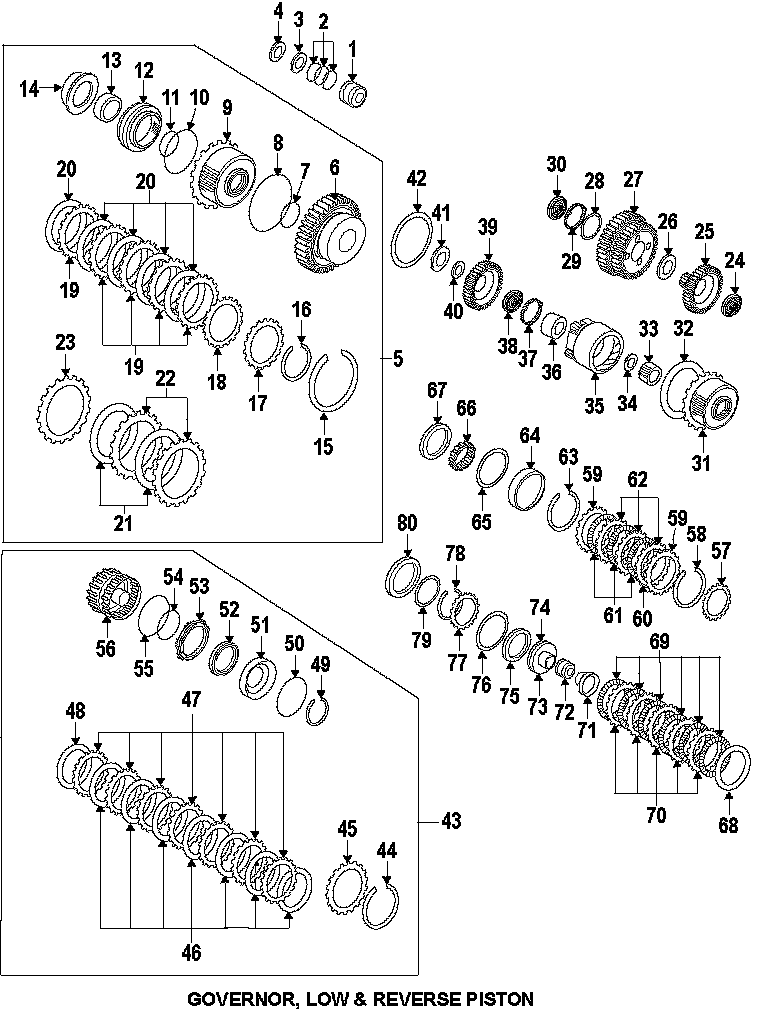

Governor, Low & Reverse Piston:

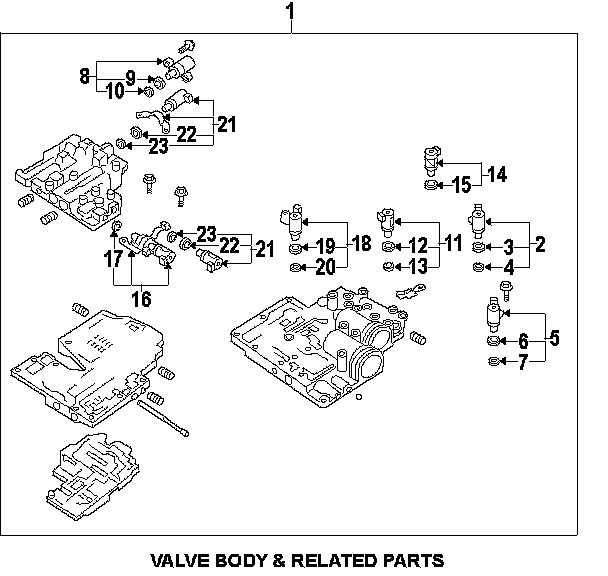

Valve Body & Related Parts:
