System Check Sheet

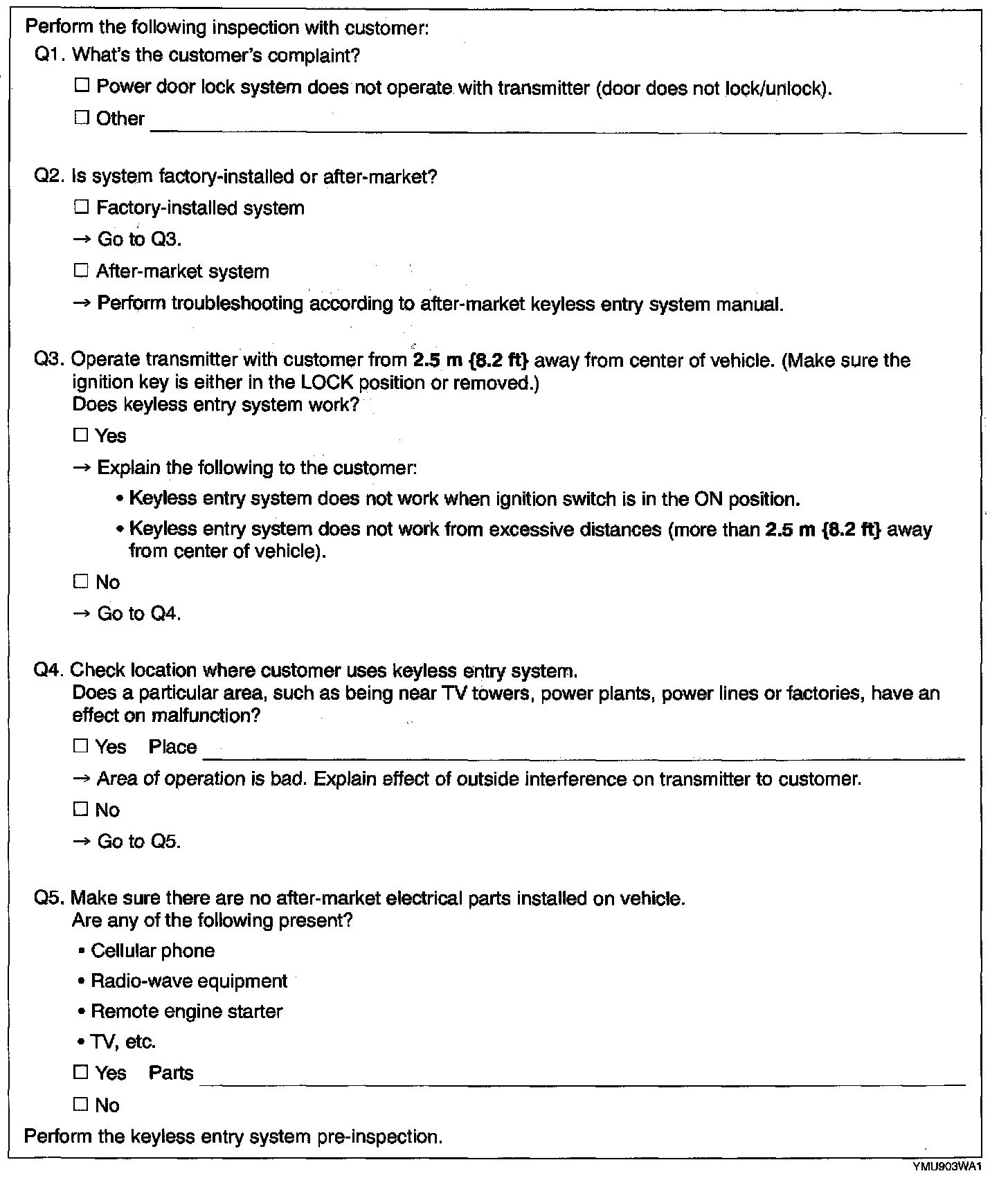

KEYLESS ENTRY SYSTEM PROBLEM CHECKKeyless Entry System Check Sheet
NOTE:
- Use the sheet as a customer interview sheet when accepting a vehicle for service.
- If any of the following symptoms occur, find out how the customer uses the keyless entry system by following the check sheet given.
- Power door lock system does not operate with transmitter (door does not lock/unlock).
- Panic function for keyless entry system does not work when transmitter's PANIC button is on.
- The keyless entry system's door lock monitor function does not work if the transmitter lock button is pushed twice within a 5-second period.
