Door Lock Cylinder Switch: Testing and Inspection

DOOR KEY CYLINDER SWITCH INSPECTION

1. Disconnect the door key cylinder switch connector

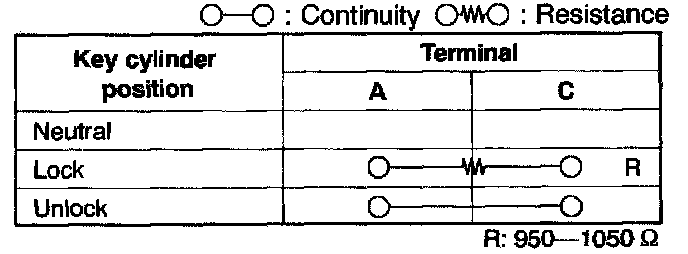

2. Inspect for continuity between the door key cylinder switch terminals using an ohmmeter.
- If not as specified, replace the door key cylinder switch.
