Front Door Lock-Link Switch Inspection

FRONT DOOR LOCK-LINK SWITCH INSPECTION

NOTE: The front door lock-link switch is together with the front door lock actuator.

1. Disconnect the front door lock actuator connector.

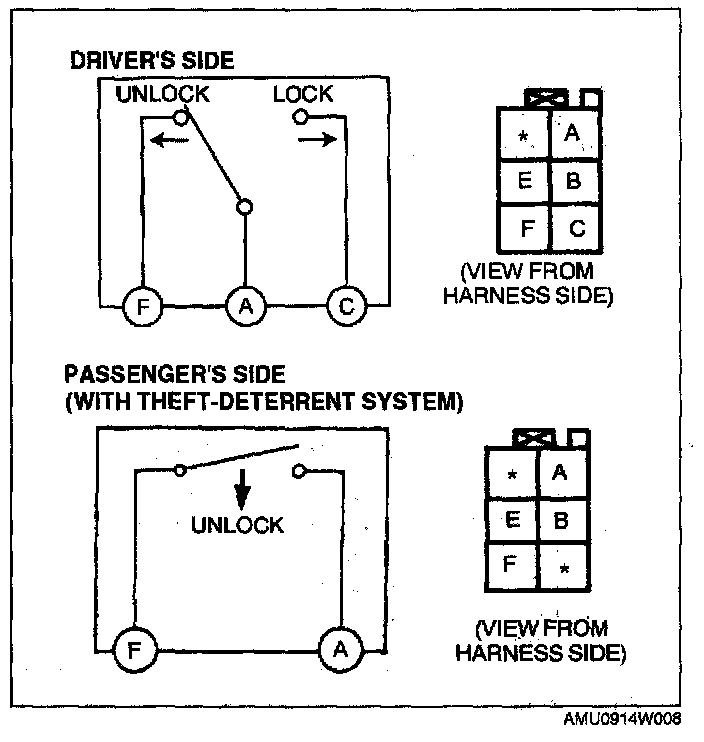

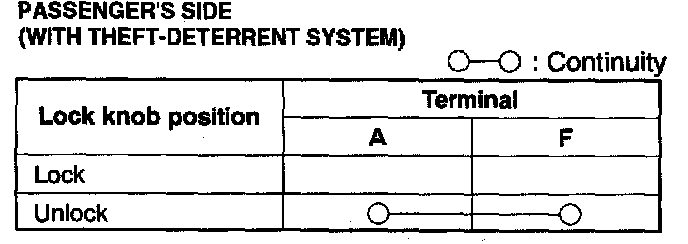

2. Inspect for continuity between the front door lock-link switch terminals using an ohmmeter.
- If not as specified, replace the front door lock actuator.
