Sliding Door Lock-Link Switch
SLIDING DOOR LOCK-LINK SWITCH INSPECTIONNOTE: The sliding door lock-link switch is together with the sliding door lock actuator.

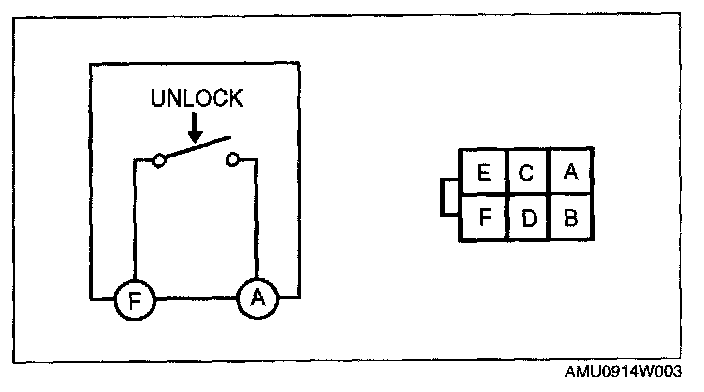

Without PSD
1. Disconnect the sliding door lock actuator connector.

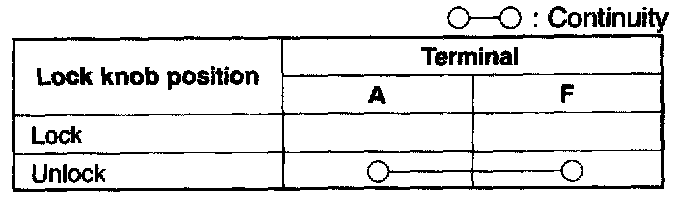

2. Inspect for continuity between the sliding door lock-link switch terminals using an ohmmeter.
- If not as specified, replace the sliding door lock actuator.

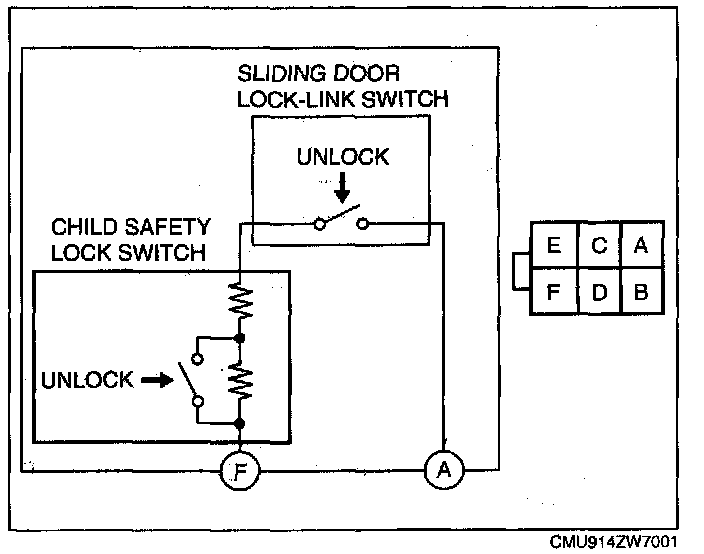

With PSD
1. Disconnect the sliding door lock actuator connector.

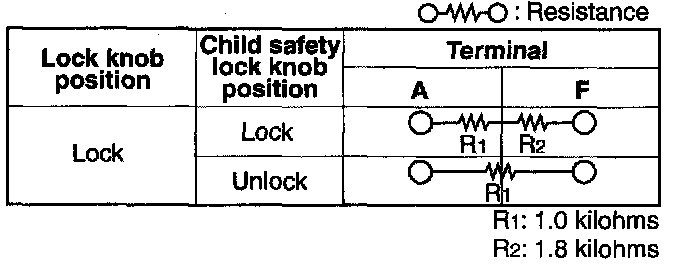

2. Inspect for continuity between the sliding door lock-link switch terminals using an ohmmeter.
- If not as specified, replace the sliding door lock actuator.
